Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Features:

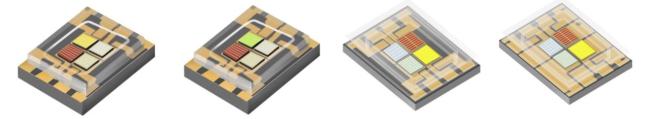

- SMD5060 Ceramic LED Package, similar to Ostar Stage;
- Lower thermal resistance, higher light efficiency
- Ceramic base with good heat conductivity to enlarge the lifespan
- Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
- Various optios of color mixtures, different power output
- Low expansion coefficient, high air tightness
Specifications:
SMD5060 LED 15W RGBW, RGBWW
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=750mA |
CRI |
|
RGBW RGBWW |
R | 1000 | 2.0-2.8 | 620-630 | 75-105 | / |
| G | 1500 | 2.8-3.6 | 520-530 | 160-210 | / | |
| B | 1500 | 2.8-3.6 | 450-460 | 25-40 | / | |
| W | 1500 | 2.8-3.6 | 6500K±500K | 200-255 | 70 | |
| WW | 3000K±150K | 150-180 |
SMD5060 LED 20W RGBW, RGBWW, RGBL, RGBA
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=1000mA |
CRI |
|
RGBW RGBWW |
R | 2000 | 2.0-2.8 | 620-630 | 75-105 | / |
| G | 1800 | 2.8-3.6 | 520-530 | 160-210 | / | |
| Royal Blue | 1800 | 2.8-3.6 | 450-460 | 25-40 | / | |
| Light Blue | 465-475 | 55-70 | ||||
| W | 1800 | 2.8-3.6 | 6500K±500K | 260-300 | 80 | |
| NW | 4000K±300K | 260-300 | ||||
| WW | 3000K±150K | 215-250 | ||||
| WW | 2700K±80K | 215-250 |
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=1000mA |
CRI |
|
RGBA RGBL |
R | 2000 | 2.0-2.8 | 620-630 | 75-105 | / |
| G | 1800 | 2.8-3.6 | 520-530 | 160-210 | / | |
| Royal Blue | 1800 | 2.8-3.6 | 450-460 | 25-40 | / | |
| Light Blue | 465-475 | 55-70 | ||||
| A | 1800 | 2.8-3.6 | 1770-1850K | 150-180 | / | |
| L | 4250-4500K | 300-350 | / |
SMD5060 LED 40W RGBW, RGBWW, RGBL, RGBA
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=1000mA |
CRI |
|
RGBW RGBWW RGBA RGBL |
R | 2500 | 2.0-2.8 | 620-625 | 100-140 | / |
| G | 3000 | 2.9-3.8 | 520-530 | 250-350 | / | |
| Royal Blue | 3000 | 2.9-3.8 | 450-460 | 40-50 | / | |
| W | 2500 | 2.8-3.6 | 6000-7500K | 260-300 | 70 | |
| WW | 2500 | 3000K±150K | 260-300 | 80 | ||
| A | 2500 | 1770-1850K | 170-200 | / | ||
| L | 2000 | 4020-42880K | 210-390 |
SMD5060 LED 50W RGBW, RGBL
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=1000mA |
CRI |
|
RGBW RGBL |
R | 3500 | 2.0-2.6 | 622-627 | 105-145 | / |
| G | 4500 | 2.9-3.5 | 526-532 | 250-350 | / | |
| Royal Blue | 4500 | 2.9-3.5 | 447-453 | 35-45 | / | |
| W | 4000 | 2.9-3.5 | 6000-7000K | 370-430 | 70 | |
| L | 4500 | 4020-42880K | 350-450 | / |
SMD5060 LED 60W RGBW, RGBL
| Item Code | Color | Max.IF (mA) |
VF(V) |
λd (nm) CCT (°K) |
Lumen(lm) If=1000mA |
CRI |
|
RGBW RGBL |
R | 3500 | 2.0-2.6 | 622-627 | 120-150 | / |
| G | 4500 | 2.9-3.5 | 526-532 | 295-345 | / | |
| Royal Blue | 4500 | 2.9-3.5 | 447-453 | 45-58 | / | |
| W | 4000 | 2.8-3.5 | 6000-7000K | 370-430 | 70 | |
| L | 4500 | 4020-42880K | 350-450 | / |
Applications:
Stage Lighting - Moving head wash, beam
Autotive Illumination
Architectural lighting
Landscape lighting
