Stage LED RGBLAC Multicolor LED Module 500W CCT Mixing 1800K-10000K
Price:
USD
MOQ:
10
Delivery Time:
Negotiable
Brand:
TYANSHINE
Product Description

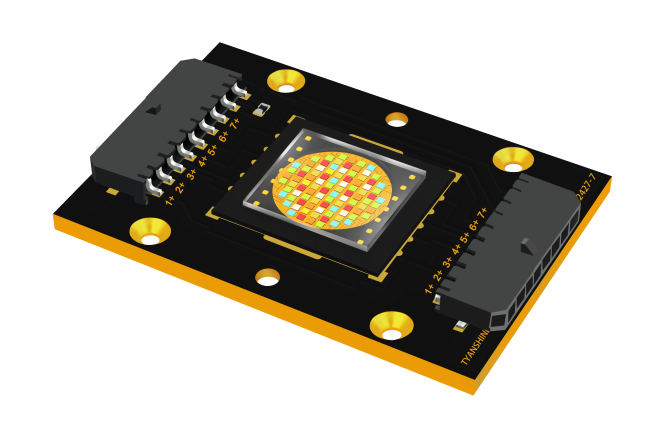

Stage LED RGBLAC Multicolor LED Module 500W CCT Mixing 1800K-10000K
Products’ Features:
1, Small LES, 5W/mm² , High Power and high light density for spot lighting,far distance
projection illumination
2, The latest Eutectic Flip-chip bonding with Cree Chips, Thermoelectric solution, fast heat-conductivity
between LEDs and MCPCB substrate
3, Unique Parallel and Serial connection of LED design, Lower Forward Current result in Lower heat-emission to enable longer lifespan
4, Average efficiency upto 40lm/W @Tj=85℃ with full power
Dimensions:
Specifications:
| Color | DWL(nm) |
Lumen If=1.3A |
Max. IF(A) | VF(V) |
Thermal Reisstance(K/W) |
| Red | 618-628nm | 2100-2400lm | 2.5A | 35-38V | 0.23 |
| Green | 520-532nm | 3400-3900lm | 2.7A | 40-43V | 0.27 |
| Blue | 450-460nm | 730-780lm | 2.7A | 37-39V | 0.29 |
| Lime | 565-569nm | 5200-5700lm | 2.5A | 40-42V | 0.27 |
| PC-Amber | 1800-2050K | 2800-3100lm | 2.5A | 40-42V | 0.27 |
| Cyan | 485-490nm | 1950-2150lm | 2.5A | 43-46V | 0.25 |
Applications:
- Entertainment spot/wash lighting
- Architectural spot/wash lighting
- Fiber coupled illumination
- Effect lighting
- Commercial LOGO Projection illumination
- Stage lighting Projection

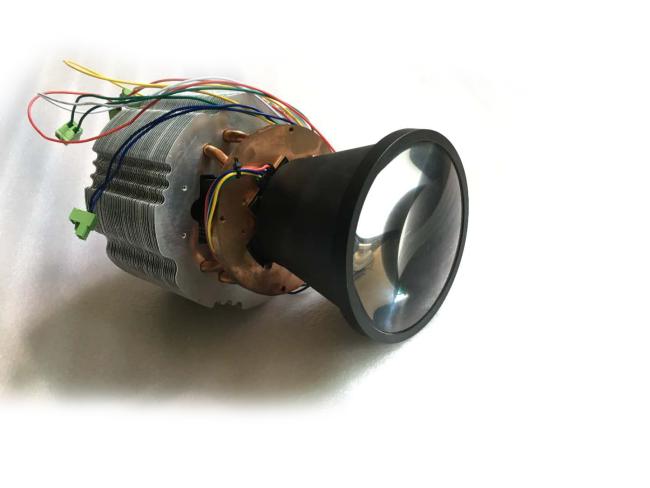

Recommended Heat sinks and Optic:
