Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 3-in-1 SMD LED Components
Features:
- Small size
- Lower thermal resistance, higher light efficiency
- Ceramic base with good heat conductivity to enlarge the lifespan
- Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
- SMD Components suitable for reflow-solidering,
- Low expansion coefficient, high air tightness
Specifications:
| Code | Color | Power | If (mA) | Dominant Wavelength | φv(lm) | Lens Type |
| TX-3535RGB1FC120-OGHCND34-01 | RGB | 1W | 160mA |
R 615-625nm G 517-530nm B 458-470nm |
R 22-35lm G 25-45lm B 10-15lm |
Dome |
| TX-3535RGB3FC120-OGVCND34-03 | RGB | 3W | 350mA |
R 615-625nm G 517-530nm B 458-470nm |
R 50-70lm G 60-85lm B 20-30lm |
Dome |
| TX-3535RGB4VCC1-0G4DB-01 | RGB | 4W | 500mA |
R 618-628nm G 522-532nm B 449-457nm |
R 60-75lm G 90-115lm B 13-18lm |
Dome |
| TX-3535RGB4VCC1-0G4DB-01 | RGB | 4W | 500mA |
R 618-628nm G 522-532nm B 465-475nm |
R 60-75lm G 90-115lm B 28-38lm |
Dome |
| TX-3535RGB9VCC1-NG4DB-01 | RGB | 9W |
R 1000mA G/B 1200mA |
R 616-626nm G 521-531nm B 465-470nm |
R 125-145lm G 190-220lm B 50-60lm |
Dome |
| TX-3535RGB2FC180-OGVCND34-01 | RGB | 2W | 200mA |
R 616-626nm G 523-535nm B 456-468nm |
R 16-28lm G 25-40lm B 5-10lm |
Flat |
| TX-3535RGB4FC180-OGVCND34-02L | RGB | 4W | 400mA |
R 618-628nm G 522-535nm B 456-465nm |
R 25-55lm G 55-85lm B 12-25lm |
Flat |

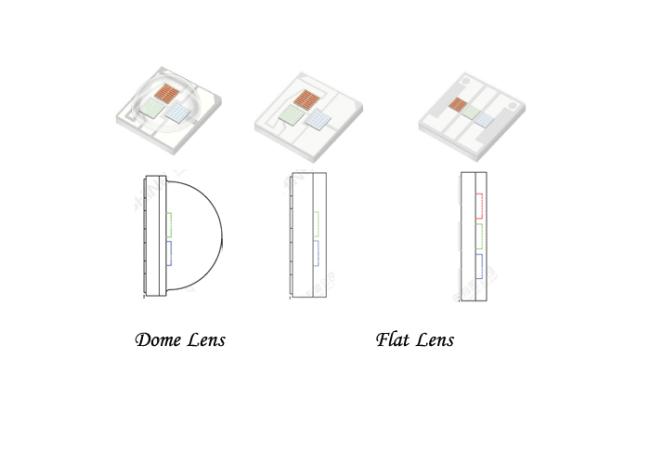

Package Type:
Applications:
LED Flashlight
Automobile Illumination
Architectural lighting
Landscape lighting
LED Street Light, LED High Bay Lights, LED Tunnel Lights
