Lights & Lighting Lighting Accessories LED Encapsulation Series SMD LED
China Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80 for sale
China Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80 for sale
China Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80 for sale

Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80

Price Negotiable
Price: Negotiation
MOQ: 1000pcs
Delivery Time: 5-10 days
Brand: TYANSHINE
Product Description

Ceramic SMD3535 LEDs CRI 90 White 3000K 4000K 5000K 6500K XP-G LED CRI80





Features:



  1. Small size
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness



Specifications:



Code Color Vf (V) Max. If (mA) CCT(K)

φv(lm)

IF=700mA

 CRI
TX-3535W5FSA1-0G4DB-01 White 2.7-3.2V 1800mA

5300-6400K

 280-400lm 70
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 4000K±300K 255-330lm 80
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 3500K±150K 230-300lm 80
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 3000K±150K 200-260lm 80
TX-3535W5FSA1-0G4DB-01H90 White 2.7-3.2V 1800mA 5500-6800K 230-270lm 90
TX-3535W5FSA1-0G4DB-01H90 White 2.7-3.2V 1800mA 4000K±300K 210-250lm 90
TX-3535W5FSA1-0G4DB-01H90 WarmWhite 2.7-3.2V 1800mA 3000K±150K 195-230lm 90

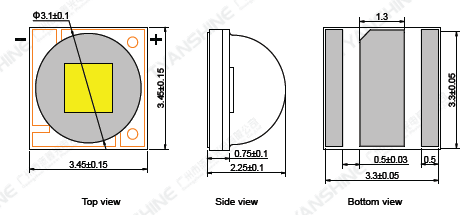

Package Dimensions:



Applications:



LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products
