Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
5-10 days
Brand:
TYANSHINE
Product Description
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Features:
- Small size
- Lower thermal resistance, higher light efficiency
- Ceramic base with good heat conductivity to enlarge the lifespan
- Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
- SMD Components suitable for reflow-solidering,
- Low expansion coefficient, high air tightness
Specifications:
| Color | Vf (V) | Max. If (mA) | λd(nm) CCT(K) |
φv(lm) | CRI |
| Red | 1.9-2.6V | 2500mA | 620-625nm | 185-250lm | |
| Green | 2.7-3.5V | 2500mA | 522-532nm | 280-360lm | |
| Royal Blue | 2.8-3.6V | 2500mA | 450-460nm | 46-65lm | |
| Light Blue | 2.8-3.6V | 2500mA | 465-475nm | 90-130lm | |
| Cyan | 2.8-3.6V | 2500mA | 485-510nm | 140-190lm | |
| Mint | 2.8-3.1V | 2500mA | 4100-4500K | 340-440lm | |
| Lime | 2.8-3.5V | 2500mA |
4030-4280K (565-568nm) |
360-460lm | |
| PC-Amber | 2.8-3.5V | 2500mA |
1750-1900K (587-590nm) |
190-240lm | |
| Cool White | 2.7-3.4V | 2500mA | 6000-8000K | 270-340lm | 80 |
| White | 2.7-3.4V | 2500mA | 4500-5300K | 210-270lm | 80 |
| Neutral White | 2.7-3.4V | 2500mA | 3700-4350K | 200-260lm | 80 |
| Warm White | 2.7-3.4V | 2500mA | 2860-3130K | 170-230nm | 80 |

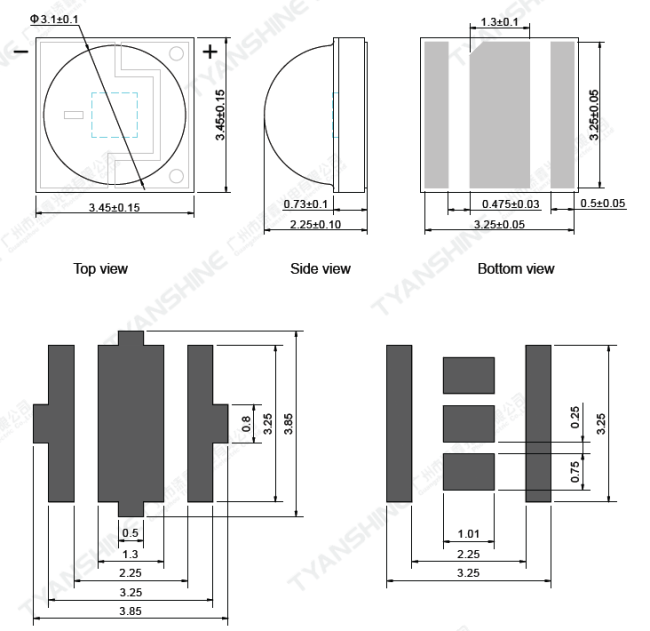

Package Dimensions:
Applications:
LED Flashlight
Automobile Illumination
Architectural lighting
Landscape lighting
LED Street Light, LED High Bay Lights, LED Tunnel Lights
Secruity application CCTV products
