Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
5-10 days
Brand:
TYANSHINE
Product Description
Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED
Features:
- Small size,SMD Package with ceramic substrate
- Lower thermal resistance, higher light efficiency
- Ceramic base with good heat conductivity to enlarge the lifespan
- Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
- SMD Components suitable for reflow-solidering,
- Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)
Specifications:
| Code | Color | Vf (V) | Max. If (mA) | λd(nm) CCT(K) |
φv(lm) | Thermal Resistance |
| TX-2020R8VCA1-NG4DA-01A | Red | 2.0-2.6V | 2000mA | 618-625nm | 170-200lm | 4.5 K/W |
| TX-2020G8VCA1-NG4DA-01A | Green | 2.9-3.6V | 2000mA | 525-533nm | 260-305lm | 4.1 K/W |
| TX-2020B8VCA1-NG4DA-01A | Blue | 2.8-3.6V | 2000mA |
446-454nm 466-474nm |
37-42lm 75-85lm |
4.1 K/W |
| TX-2020C8VCA1-NG4DA-01A | Cyan | 2.8-3.6V | 2000mA | 484-492nm | 140-160lm | 4.1 K/W |
| TX-2020A8VCA1-NG4DA-01A | PC-Amber | 2.8-3.6V | 2000mA |
1750-1900K (586-590nm) |
200-230lm | 4.1 K/W |
| TX-2020L8VCA1-NG4DA-01A | Lime | 2.8-3.6V | 2000mA |
4030-4280K (565-568nm) |
370-430lm | 4.1 K/W |

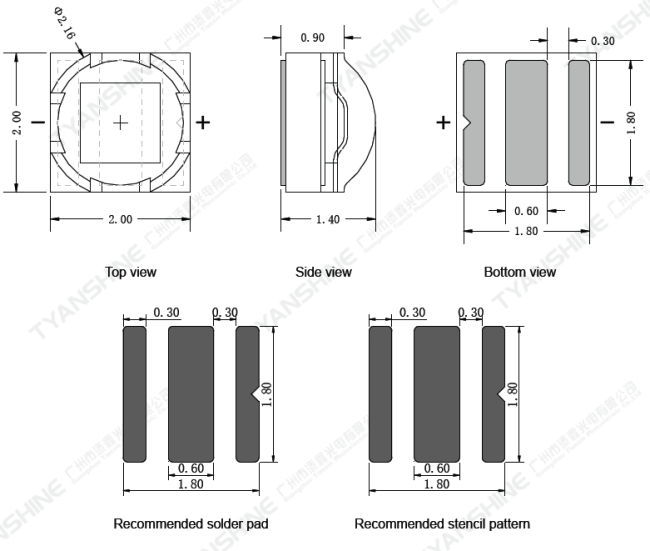

Package Dimensions:
Applications:

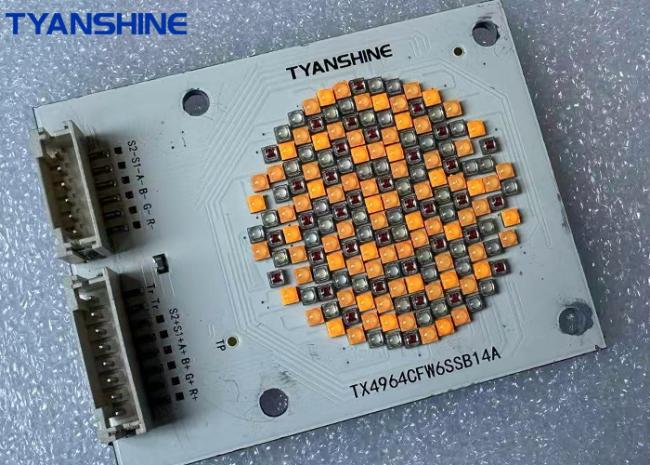

LED Module for Studio/TV/Theater Lighting
Portable LED Flashlight
Automobile illumination
Architectural lighting
Landscape lighting
LED Street Light, LED High Bay Lights, LED Tunnel Lights
