Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Price:
Negotiation
MOQ:
1000pcs
Delivery Time:
5-10 days
Brand:
TYANSHINE
Product Description
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Features:
- Small size,SMD Package with ceramic substrate
- Lower thermal resistance, higher light efficiency
- Ceramic base with good heat conductivity to enlarge the lifespan
- Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
- SMD Components suitable for reflow-solidering,
- Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)
Specifications:
| Code | Color | Vf (V) | Max. If (mA) | λd(nm) CCT(K) |
φv(lm) | CRI |
| TX-2020R3VSA1-NG4DA-01 | Red | 2.1-2.5V | 1000mA | 620-625nm | 60-80lm | / |
| TX-2020G3VSA1-NG4DA-01 | Green | 2.6-3.4V | 1000mA | 525-532nm | 125-155lm | / |
| TX-2020B3VSA1-NG4DA-01 | Blue | 2.8-3.4V | 1000mA |
450-460nm 465-475nm |
14-24lm 30-40lm |
/ |
| TX-2020W3VSA1-NG4DA-01 | White | 2.8-3.3V | 1000mA | 5700-7000K | 135-165lm | 70 |
| TX-2020W3FSA1-NG4DA-01H80 |
Warm White |
2.8-3.3V | 1000mA | 2950-3040K | 120-150lm | 80 |
| TX-2020Y3VCA1-NG4DA-01 | Yellow | 2.0-2.6V | 1000mA | 589-596nm | 45-55lm | / |
| TX-2020A3FSA1-NG4DA-01 | PC-Amber | 2.8-3.3V | 1000mA |
1750-1900K (586-590nm) |
110-125lm | / |
| TX-2020L3FSA1-NG4DA-01 |
Lime |
2.8-3.3V | 1000mA |
4030-4280K (565-568nm) |
145-190lm | / |

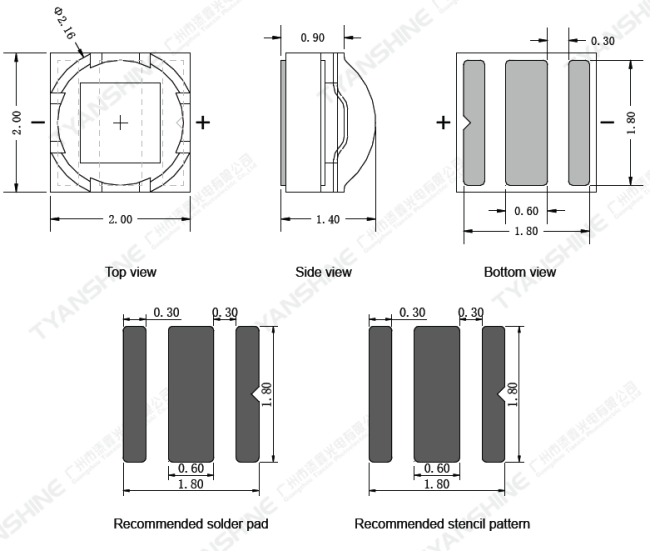

Package Dimensions:

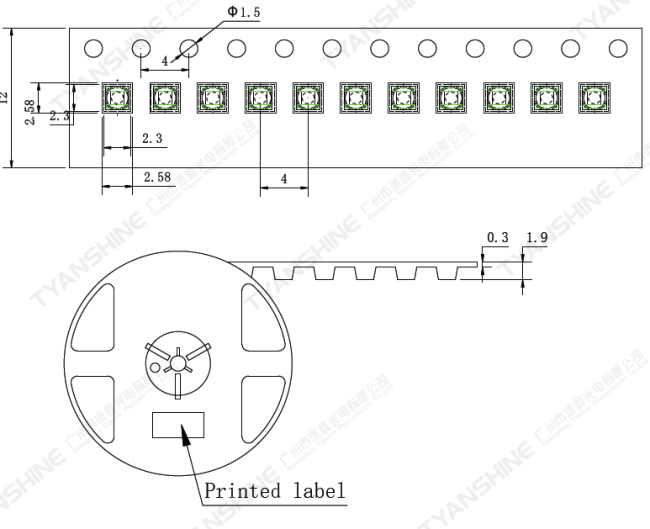

Packing: 1000pcs per Reel
Applications:
LED Module for Studio/Stage Ligting
Portable LED Flashlight
Automobile illumination
Architectural lighting
Landscape lighting
LED Street Light, LED High Bay Lights, LED Tunnel Lights
