Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

Price Negotiable

Price: Negotiation

MOQ: 10pcs

Delivery Time: 5-10 days

Brand: JH

Product Description

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

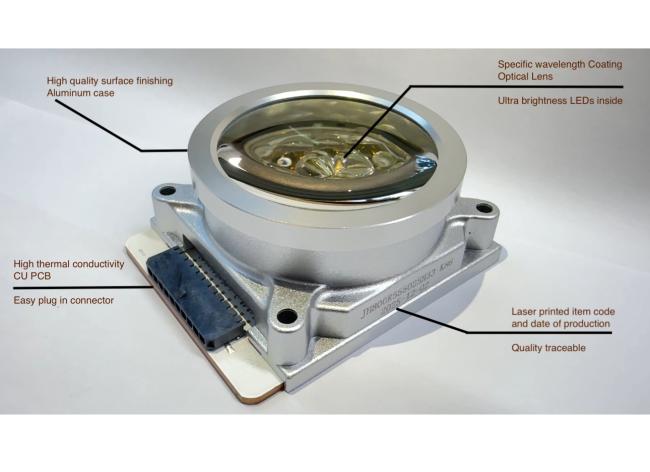

Technical background:

Integrating the latest advanced high-power LED with a dedicated heat dissipation substrate design;

Possessing an excellent heat dissipation condition to allow long-term use at full power;

Featuring high brightness, compact size, and excellent thermal management structure;

Using specific wavelength coating to maximize optical efficiency.

Key Features:

1, Well selected high brintness and stablility Ceramic based LEDs;

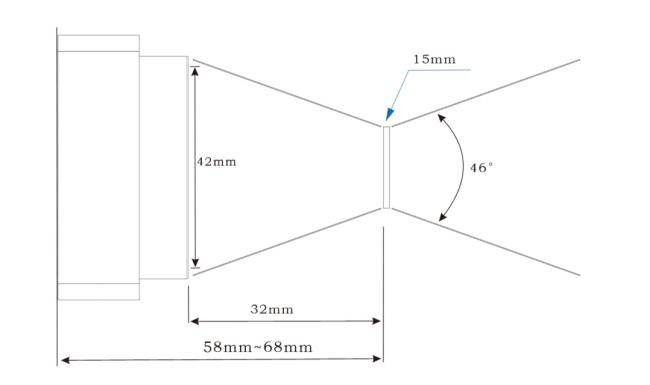

2, Small aperture size and ultra-narrow emission angle;

3, Optical alignment assembly process ensures product consistency;

4, Adopting the advanced packaging process to ensures an excellent heat dissipation efficiency;

5, Comparing with peer products, it can maximize the use of limit power and the utilization of maximum luminous efficiency.

Specifications:

Recommended Typical conditions:

Item	Value	Unit
Forward Current	6.2	A
Working Temperature (NTC thermistor value:1688Ω / 80°C)	≤80	°C
Lifetime	＞20000	H

Extreme Using conditons:

Item	Value	Unit
Min. forward current	10	μA
Max. forward current	6.8	A
Peak surge current (Instantaneous time ≤ 10μs; duty cycle ≤ 90%; ambient temperature ≤ 80℃)	8	A
NTC Max. Working Temperature (NTC thermistor value:1452Ω / 85°C)	85	°C
Storage Temperature	minus 40 - 85	°C
