Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White
Price:
Negotiable
MOQ:
10
Delivery Time:
Negotiable
Brand:
TYANSHINE
Product Description
Smart Lighting 700mA RGBW LED 60W COB LED LES11mm 36V COB RGB+Tunable White
Key Features:
■ Excellent color-mixing, no color deviation, even color spot;
■ Cross-distribution of different colors, no polarized light;
■ High light quality, anti-glare
■ Fast thermal conductivity substrate, lower resistance
■ Compatible COB PKG size, easy to adapt accessories
Specifications:
| Code | Color |
Vf (V) |
If (mA) |
Power |
LES (mm) |
| TX-1919RGBWS60C16V12-20H90 | RGB+TunableWhite | 36V | 700 | 60 | 16 |
Characteristics at If=1800mA (Ta=85°C)
| Parameter | Symbol | Emitting Color |
Values | |||
| Min. | Typ. | Max. | ||||
| Luminous Flux | φv | R | 650lm | 760lm | - | |
| G | 760lm | 900lm | - | |||
| B | 160lm | 190lm | - | |||
| W | 760lm | 900lm | - | |||
| S | 640lm | 750lm | - | |||
| Dominant Wavelength | λd | R | 620nm | 625nm | 635nm | |
| G | 512nm | 517nm | 522nm | |||
| B | 445nm | 450nm | 455nm | |||
| Colour Temperature | CCT | W | 6000K | - | 6500K | |
| S | 2670K | - | 2780K | |||
| Forward Voltage | Vf | R | 33V | 35V | 39V | |
| G | 33V | 36V | 39V | |||
| B | 33V | 36V | 39V | |||
| W/S | 33V | 36V | 39V | |||

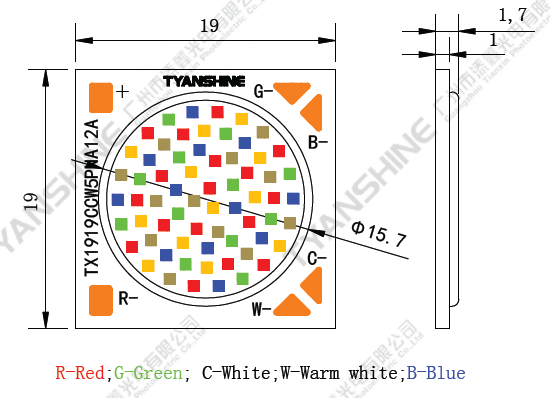

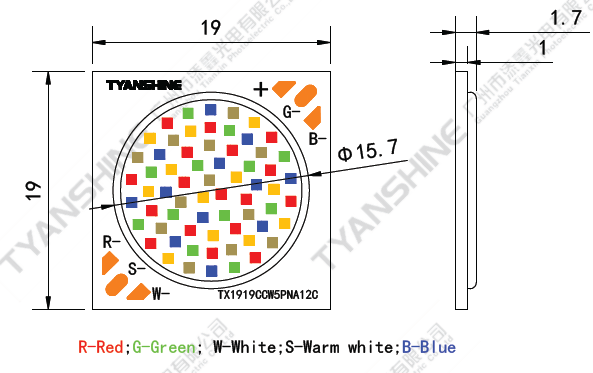

Dimsions:
Applications:
Entertainment lighting, Projection lights
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber optic lighting
