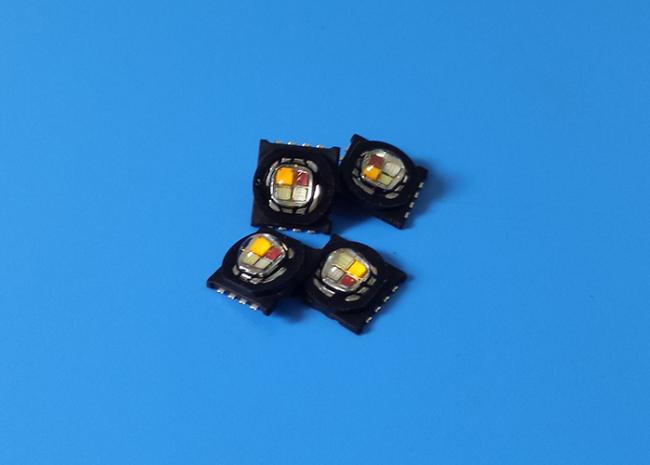

High Power Leds RGB PCAmber Led Compoment 450 - 550lm Lumen
Price:
USD
MOQ:
500pcs
Delivery Time:
Negotiable
Brand:
TYANSHINE
Product Description
High Power Leds RGB PCAmber Led Compoment 450 - 550lm Lumen
Features of the RGBW / RGBA LEDs:
- Small and bright SMD package LEDs, Patent LEDs
- Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
- Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
- Packaged with high thermal conductivity materials, low thermal resistance
Specifications:
| RGB_PCAmber | Color | Vf (V) | If (mA) | λd(nm) CCT(K) |
φv(lm) | Power | LES(mm) |
| TX-RBAG151B120-001 | Red | 2.6-2.9 | 750 | 620-625 | 120-140 | 15W | Φ5.8 |
| Green | 3.0-3.6 | 750 | 525-530 | 175-200 | |||
| Blue | 3.0-3.6 | 750 | 454-458 | 38-48 | |||
| PCAmber | 3.0-3.6 | 750 | 1800-1900K | 135-155 |
| RGBW | Color | Vf (V) | If (mA) | λd(nm) CCT(K) |
φv(lm) | Power | LES(mm) |
| TX-RBWG15B120-001 | Red | 2.4-3.2 | 1000 | 618-628 | 170-205 | 15W | Φ5.8 |
| Green | 3.2-3.8 | 1000 | 520-530 | 200-240 | |||
| Blue | 3.2-3.8 | 1000 | 450-460 | 40-55 | |||
| White | 3.2-3.8 | 1000 | 6500-8500K | 280-310 |
| RGBA | Color | Vf (V) | If (mA) | λd(nm) CCT(K) |
φv(lm) | Power | LES(mm) |
| TX-RBYG151B180-001 | Red | 2.4-3.2 | 1000 | 618-628 | 100-120 | 15W | Φ5.8 |
| Green | 3.2-3.8 | 1000 | 520-530 | 145-170 | |||
| Blue | 3.2-3.8 | 1000 | 450-460 | 30-40 | |||
| Amber | 2.4-3.2 | 1000 | 588-595 | 110-130 |
Applications:
- Entertainment Lighting
- Architectural illumination
- Display & Projection
