Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White
Price:
Negotiable
MOQ:
10
Delivery Time:
Negotiable
Brand:
TYANSHINE
Product Description
Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White
Key Features:
■ Excellent color-mixing, no color deviation, even color spot;
■ Cross-distribution of different colors, no polarized light;
■ High light quality, anti-glare
■ Fast thermal conductivity substrate, lower resistance
■ Compatible COB PKG size, easy to adapt accessories
Specifications:
| Code | Color |
Vf (V) |
If (mA) |
RθJ-C |
Φv (lm) |
Power |
LES (mm) |
| TX-1515RGBWS40C11V07-20H90 | RGB+TunableWhite | 19-23V | 500 | 0.75 K/W | 1700-2000 | 40 | 11 |
Characteristics at If=1800mA (Ta=85°C)
| Parameter | Symbol | Emitting Color |
Values | |||
| Min. | Typ. | Max. | ||||
| Luminous Flux | φv | R | 370lm | 430lm | - | |
| G | 440lm | 520lm | - | |||
| B | 95lm | 110lm | - | |||
| W | 440lm | 520lm | - | |||
| S | 360lm | 420lm | - | |||
| Dominant Wavelength | λd | R | 625nm | 630nm | 635nm | |
| G | 513nm | 518nm | 523nm | |||
| B | 445nm | 450nm | 455nm | |||
| Colour Temperature | CCT | W | 6000K | - | 6500K | |
| S | 2670K | - | 2780K | |||
| Forward Voltage | Vf | R | 19V | 21V | 23V | |
| G | 19V | 21V | 23V | |||
| B | 19V | 21V | 23V | |||
| W/S | 19V | 21V | 23V | |||

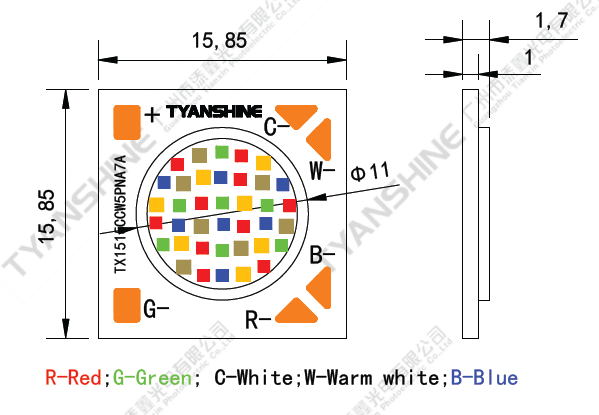

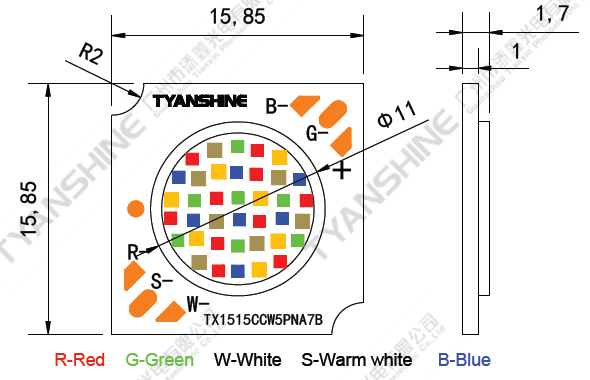

Dimsions:
Applications:
Entertainment lighting, Projection lights
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber optic lighting
