LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
Negotiable
Brand:
TYANSHINE
Product Description
SMD LED Diode Ceramic SMD3535 RGBW LEDs 5W Architectural illumination
Specification:
| Item Code | Color | IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Power (W) |
Lumen (lm) |
LES (mm) |
| TX-3535RGBW5FC120-OGVEND34-01 | R | 350 | 2.0-2.6 | 615-625 | 5 | 45-50 | Φ2.85 |
| G | 350 | 3.0-3.4 | 518-528 | 80-85 | |||
| B | 350 | 3.0-3.4 | 450-458 | 15-17 | |||
| W | 350 | 3.0-3.4 | 5300-7000 | 85-90 |
Features:
- Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion, less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;
-
30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;
-
Anti-UV silicon domed lens, anti-aging and better light direction;
-
Long lifespan over 50,000 hrs,Smaller package size for luminaries manufactures.

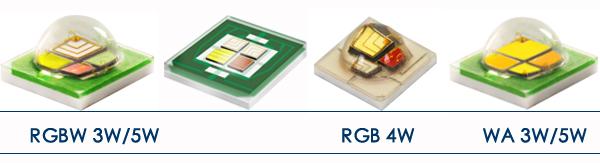

Other options:
| ITEM CODE | Color | Power | Remarks |
| TX-3535RGBW3FC120-OGVEND34-01A | RGBW | 3W | W = 6000K |
| TX-3535RGBS3FC120-OGVEND34-01A | RGBS | 3W | S = 3000K |
| TX-3535RGBW3FC120-OGVEND34-03 | RGBW | 3W | Osram LED dies |
| TX-3535RGBW5FC120-OGVEND34-02 | RGBW | 5W | W = 6000K |
| TX-3535RGBW5FC120-OGVEND34-02 | RGBW | 5W | W = 4000K |
| TX-3535RGBS5FC120-OGVEND34-02 | RGBS | 3W | S = 3000K |
| TX-3535RGB4FC120-OGVEND34-01 | RGB | 4W | |
| TX-3535WA3FC120-OGVEND34-02 | 1800K/6000K | 3W | Osram LED dies |
| TX-3535WA5FC120-OGVEND34-01 | 1800K/6000K | 5W | 1800K = PC-Amber |
| TX-3535RGBY5FC120-OGVEND34-01 | RGBY | 5W |

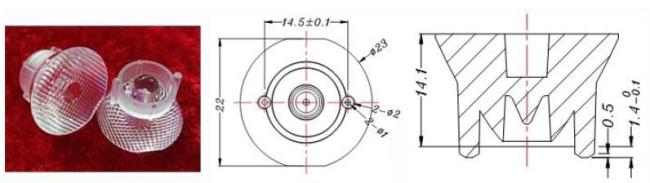

Secondary Lens (15° x 60° )

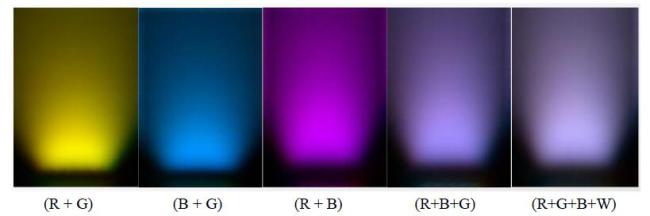

Color-mixing Effect:
