Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Key Features of the C3535 RGBW Package LEDs:
1, Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion,
less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;
2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;
3, Anti-UV silicon domed lens, anti-aging and better light direction;
4, LM-80 certification, Long lifespan over 50,000 hrs
Specification:

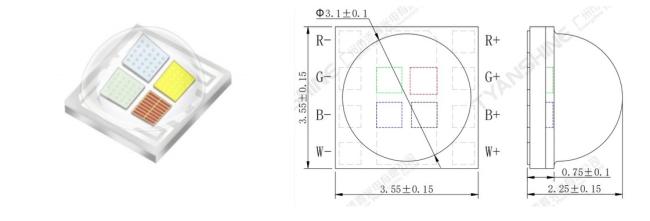

2W Ceramic 3535 RGBW LEDs, Dome Lens type
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Lumen(lm) If=150mA |
LES (mm) |
| RGBW 6500K | R | 200 | 2.1-2.4 | 620-625 | 18-32 | / |
| G | 200 | 2.8-3.1 | 522-532 | 35-55 | / | |
| B | 200 | 3.0-3.3 | 465-475 | 8-18 | / | |
| W | 200 | 2.8-3.1 | 6500K±500K | 50-80 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Lumen(lm) If=150mA |
LES (mm) |
| RGBW 5000K | R | 200 | 2.1-2.4 | 620-625 | 18-32 | / |
| G | 200 | 2.8-3.1 | 522-532 | 35-55 | / | |
| B | 200 | 3.0-3.3 | 465-475 | 8-18 | / | |
| W | 200 | 2.8-3.1 | 5000K±500K | 50-80 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Lumen(lm) If=150mA |
LES (mm) |
| RGBW 4000K | R | 200 | 2.1-2.4 | 620-625 | 18-32 | / |
| G | 200 | 2.8-3.1 | 522-532 | 35-55 | / | |
| B | 200 | 3.0-3.3 | 465-475 | 8-18 | / | |
| W | 200 | 2.8-3.1 | 4000K±300K | 40-65 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Lumen(lm) If=150mA |
LES (mm) |
| RGBW 3000K | R | 200 | 2.1-2.4 | 620-625 | 18-32 | / |
| G | 200 | 2.8-3.1 | 522-532 | 35-55 | / | |
| B | 200 | 3.0-3.3 | 465-475 | 8-18 | / | |
| W | 200 | 2.9-3.4 | 3000K±150K | 40-65 | 80 |
Appplications:
1, Outdoor Landscape illumination & Architectural lighting:
Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.
2, Entertainment lighting/Stage lighting
Matrix panel lights, Moving Heads panels, Par cans lights...
