Flexural Endurance Material Testing Equipment With Bending Angle Of 50°
Whole Shoes Flexural Endurance Test Machine with Bending Angle of 50°
1. Quick Details
|
Alternative name |
Finished shoes folding resistance tester |
|
Function |
Test folding resistance of finished shoes or shoe sole |
|
Type |
Table type |
|
Weight |
180kg(for 2 shoes) 350kg(for 4 shoes) |
|
Volume |
75×75×110cm (for 2 shoes) 115 cm ×70 cm × 120 cm(For 4 shoes) |
|
Corresponding test standard |
GB/T 3903.1-2008 |
2. Description
Shoe folding test machine is mainly used for finished shoes, TPR soles, other materials shoe soles of folding test.
3. Main features
The tester is suitable for the inspection of shoe soles (piece) folding properties at room temperature. The testing method is put the shoe or the sole on the folding test machine to a certain angle and around a certain frequency folding test to measure the soles, and observe the changes in the number of post-soles.
1. The panel can be set to show the actual number and flexing times.
2. The machine would automatically shut down when operation reaches the set value. When the counter stops counting, and machine would automatic shutdown.
3. Automatic oil function and timely transmission parts lubricated.
4. Blower unit.
4. Specifications
|
Model |
GX-5040 |
|
Specimen fixture |
2 groups or 4 groups |
|
Sample size |
whole shoe test |
|
Speed range |
100~300 times / min |
|
Test speed |
(230±10) times/min |
|
Bending angle |
50 ° ±1°(0°~5° adjustable) |
|
Width of the cut |
5mm |
|
Motor |
AC |
|
Weight |
180kg/350kg |
|
Volume (W x D x H) |
360 x 360 x 1000mm(for 2 groups) 800 x 650 x 1180mm(for 4 groups) |

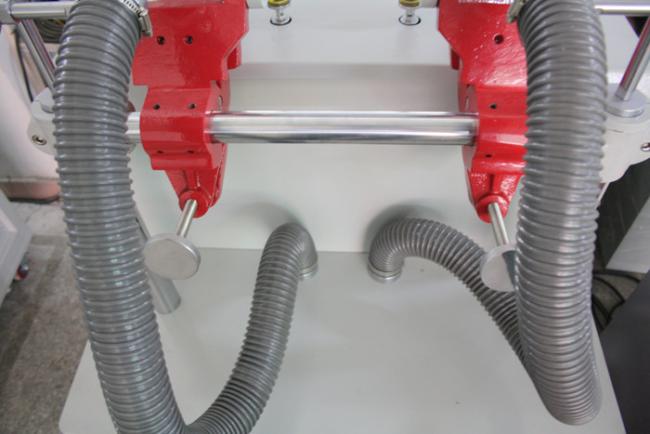

5. Pictures
6. RFQ
Q1: What is the warranty for the equipment?
A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.
Q2: What is the payment way?
A2: T/T ; 50% deposit and 50% before shipment.
Q3: How long the delivery time is?
A3: Generally,the delivery time is about 15-20 days, except for the special customization.
Q4: How to prove your product is qualified?
A4:The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.
Q5: Is the package strong enough for long-distance shipment?
A5:Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.
