3 / 5 Gallon / 20L Bottle Water Rinser Filler Capper Equipment / Plant / Machine / System / Line

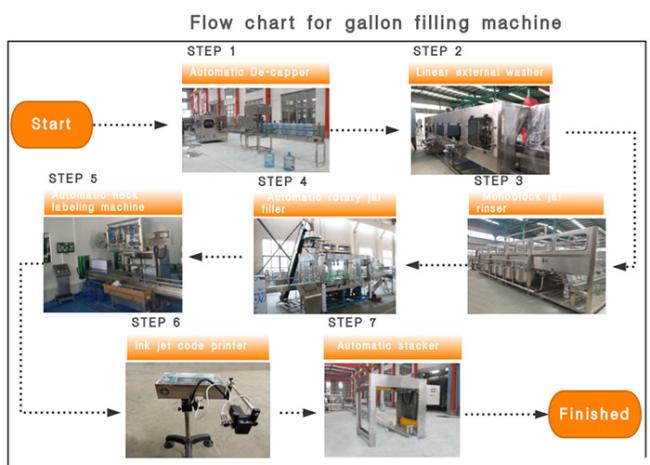

Description of our 1500BPH 5 gallon filling line
1, Automatic de-capper
|
Parameters
|
|
|
Dimension
|
1200*800*1950mm
|
|
Weight
|
200kg
|
|
Cap pulling claw
|
3 pcs
|
|
Power
|
0.2KW
|
2, Linear external washer
|
Parameters
|
|
|
Material
|
SUS 304
|
|
Dimension
|
3900*1200*1600mm
|
|
Weight
|
1000kg
|
|
Electrc consumption
|
3KW/h
|
|
Water consumption
|
1000L/H
|
3, Monoblock jar rinser
Washing machine mainly consists of frame, the conveyor, flushing lines, water tanks, bottle rack s as well as other components.
1.Rack: entirely by 75x45 square tube welded stainless steel, plate material SUS304, high strength, good rigidity, light weight, beautiful appearance, easy to clean and so on. Automatic bottle bodies and chassis welding.
2. Conveyor: driven sprocket, chain, prop bottle rack, solid bottle cups, etc., in which chains, sprockets have been carefully designed to make it more scientific and more perfect.
|
Parameters
|
|
|
Material
|
Frame SUS 304, contact parts(pumps, pipes and nozzle) SUS 316.
|
|
Electric consumption
|
3KW/H(host motor); 12 pcs of water pump, 0.37KW/H for each;
|
|
Water consumption
|
1000L/H for tap water and return water washing;
|
|
Steam consumption
|
null(use electric heating for alkaline liquor)
|
|
Dimension
|
9500*3900*2200mm
|
|
Weight
|
9000kg
|
4, Sleeve applicator
5, Ink jet code printer
6, Automatic stacker
This gallon palletizer is used to make the filled gallon bottle packed with film in order, which can avoid the gallon water to be polluted with dust, and it's convenient to make the transportation and sell.
Relazing 5 gallon barrels of palletizing according to the requirements into 1-3 layer, layer can be adjusted, usually every layer 5 * 4 = 20 barrels, but also customize according to customer's request. facilitate forklift shipped to the warehouse storage.
3 / 5 gallon / 20L bottle water rinser filler capper equipment / plant / machine / system / line
