AMC00001-UP Excavator Coupling Rubber Hydraulic Parts 255-2943 2552943

Product description

Structure:  Rubber                                       Flexible or Rigid:Flexible
Standard or Nonstandard:Standard            Material:Rubber
Brand Name:Y&F                                        Place of Origin:Guangzhou, China (Mainland)
Model Number: AMC00001-UP                      Item: Excavator Coupling
Color:Can be customed                              Size: 2552943

Product Details:

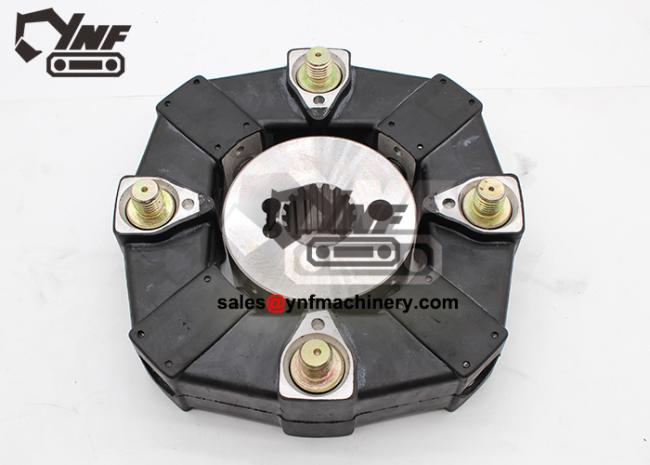

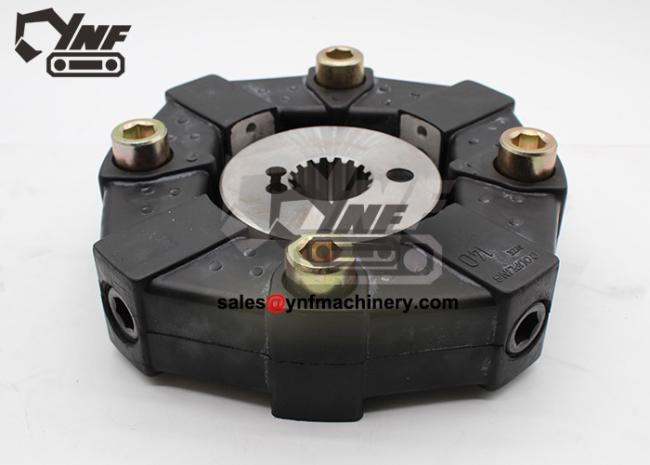

Prouduct show:

About us:

Company Information
Yingfeng Construction Machinery Limited established in 1988,having both trading company and owned factory .Office and showroom are loed in Guangzhou ,Panyu district. We produce and sell various Excavator Parts,such as coupling,Oil Seal,Hydraulic Parts,Excavator Rubber Parts,Excavator Electric Parts,Excavator wearing Parts,Engine Parts,Excavator Filters,Excavator Gears,Bearings,Excavator A/C Parts,Excavator Undercarriage Parts and Some air compressor couplings.


Part Number:

Pos. Part No Qty Parts name Comments
1. 351-4126 [4] INSERT-COUPLING
2. 7Y-1901 [1] ELEMENT-COUPLING
3. 7Y-1902 [4] INSERT-COUPLING
4. 7Y-0466 M [2] SETSCREW-SOCKET (M16X2X22-MM)
5. 255-2944 [1] HUB
6. 7Y-0468 [8] PIN-SPRING
7. 7Y-1904 M [4] BOLT-SOCKET HEAD (M16X2X50-MM)
M METRIC PART

Pos. Part No Qty Parts name Comments
1. 6V-0405 [1] SEAL-BONDED
2. 7R-7959 [4] BOLT-SPECIAL (1/4-20X1.12-IN)
3. 8T-7909 [1] ADAPTER
4. 286-0882 I [1] HOSE AS
5. 286-0883 I [1] HOSE AS
6. 178-8505 [2] PLATE-WELD
7. 232-1288 [4] CLAMP-HALF
8. 3J-7354 [1] SEAL-O-RING
9. 4J-5477 [1] SEAL-O-RING
10. 6V-8628 [1] ELBOW
11. 7V-5628 [2] PLATE (TOP)

Product Information:

Coupling function It is used to connect two shafts together. The two shafts cannot be separated when the machine is running. The two shafts can be separated only after the machine is stopped and the connection is disconnected. 2. The type of coupling The two shafts connected by the coupling, due to manufacturing and installation errors, deformation after loading and the influence of temperature changes, etc., will cause changes in the relative positions of the two shafts, which often cannot guarantee strict alignment. According to whether the coupling has elastic elements, whether it has the ability to compensate for various relative displacements, that is, whether the coupling function can be maintained under the condition of relative displacement and the purpose of the coupling, the coupling can be divided into rigid couplings. Flexible couplings and safety couplings.
