210*119*300mm white commercial metal home desktop electric essential oil diffuser

Introduction:

VS-560B Aroma Diffusion System adopts cold air atomization principle,which is combined high-tech quality.

Applicability: elegant appearance,easy to install,stable performance.

Intelligence: adopting microcomputer system to control the working time and aroma concentration based on your setting.

Reliability: leading proprietary technology, the patented technology of micron atomization makes the aroma to spread quickly in the interior space,more fresh and lasting.

Parameters:

【Model】: VS-560B

【Size】: W237*D118*H323 (mm)

【Capacity】: 750ml

【N.W】: 6.2kg

【Coverage】: 1500m³

【Voltage】: DC12V

【Power】: 5W

【Noise】<45dba

Installation:

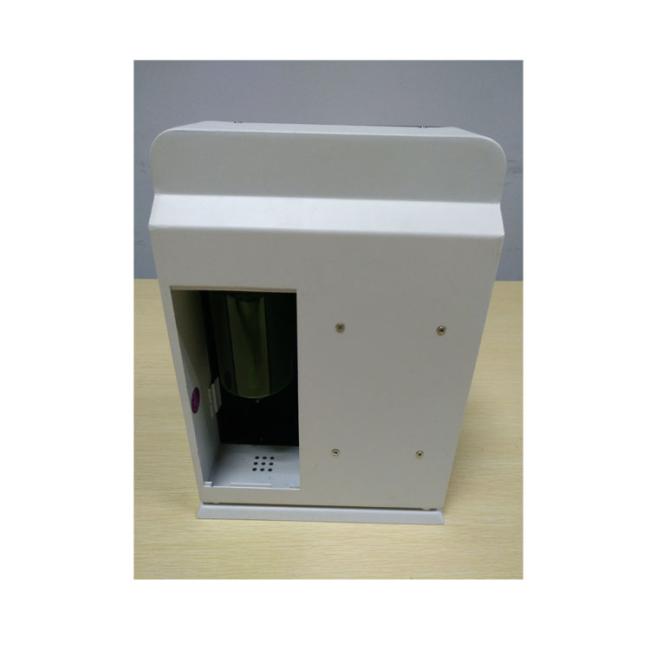

1.Insert the key to unlock the door, then take out oil canister;

2.Fill bottle with fragrance oil,then assemble it on device;

3.Lock the door,then connect adapter with power socket and turn on power switch to work based on your settings;

4.Follow the installation diagram as below to hang it on the wall.

Setting:

( Mode Set Up Down )
1.Turn power on, the LCD displays the current hour, minutes, and work day. It also shows the current working state as WORK ON, PAUSE ON, or PAUSE OFF.
2.Press【SET】, then press【UP】or【DOWN】 to adjust the hour, minute, or work days setting.
3.Press【MODE】to set device’s work period and WORK/PAUSE time. For example,
A. Press【MODE】for first time, that shows to adjust ON time of first work period. Then press【SET】【UP】【DOWN】, to adjust the hour, minute and work days respectively.
B. Press【MODE】for second time, that shows to adjust OFF time of first work period. Then press【SET】【UP】【DOWN】, to adjust the hour, minute and work day respectively.
C. Press【MODE】for third time, to set the WORK time within 5-300 seconds by pressing【UP】/【DOWN】.
D. Press 【MODE】for fourth time, to set the PAUSE time within 5-300 seconds by pressing【UP】/【DOWN】.
4.Please repeat the above steps to set 2nd / 3rd / 4th work periods.
5.Reset the default setting by pressing【MODE】for 10 seconds.

Default Setting:

The ON time of 1ST work period is 8:00, OFF time is 22:00.
WORK time is 60 seconds, PAUSE time is 60 seconds.
The 2nd / 3rd /4th work periods stay in blank.

Application for:

1.Beauty Salon,SPA,Yoga,Bedroom,Living room,Conference room,Office,Reception center,

Corridor,Pet room,Toilet,Baby room,Hotel,Hospital or any other private,Public circumstance.

2.Relief: aroma therapy,relieve strain and ease stress.

Purify: neutralizes static,reduce infection of skin.

Beauty: refreshes skin and can be taken as a skin care,keeps skin healthy and moist.

Decoration: warms atmosphere in the room by adding perfume or essential oil in the atomizer.
