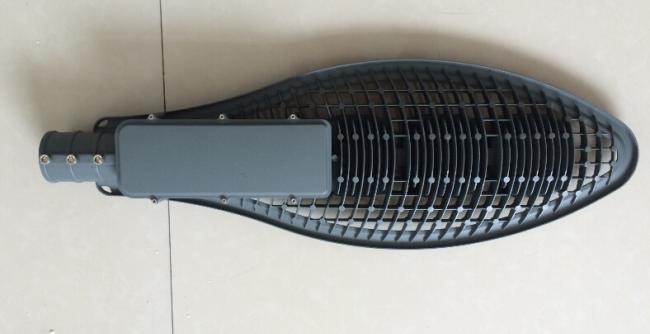

COB150W Outdoor LED Street Lights AC85 - 265V Tennis Racket Shape
High Power COB 150W IP65 Outdoor LED Street Lights Grey color for Roadway AC85-265V
Quick Detail:
|
Name |
Cob 150W Led Steet lights |
Application |
Use for Roadway |
|
Color |
Grey |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
15000 |
Certificate |
CE/ROHS |
Description:
New Design High power 150W LED streetlight made of High quality Die Casting Aluminum housing with brighting LED and long life Driver
1. The latest version of high power COB Street Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 3pcs of 50W Bridgelus COB led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
6. IP65 protection grade.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-11-150(150W) |
|
|
Electrical Specifications |
LED QTY |
50W x3Pcs |
|
TotaLPower consumption |
150W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
15000 lm - Initial |
|
|
13500 lm - Maintain |
|
|
Led Luminous Efficiency |
>100LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
810x266x92MM |
|
|
Fixture Weight |
4.88kgs(10.8lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
87x14x29cm (34.3” x5.5” x11.4”) |
|
|
Packing Weight |
6.19kgs(13.7lbs) |
|
