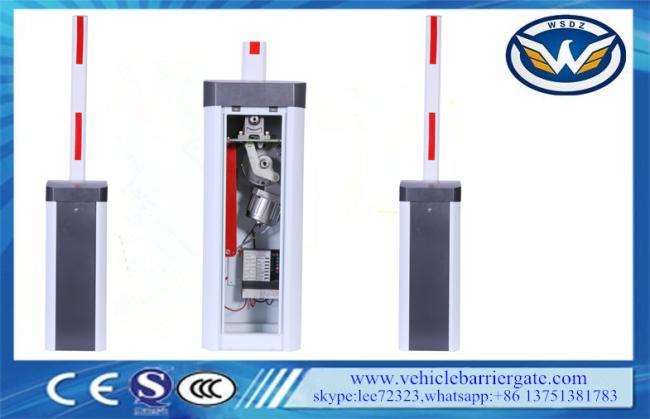

Inverter Motor Toll Barrier Gate 1s Second AC220V CE Certificated For Highway Road

Price Negotiable

Price: USD300~350per unit

MOQ: 1PC

Delivery Time: 3-7 working days after received your payment

Brand: WONSUN

Product Description

Inverter Motor Toll Barrier Gate 1s CE Certificate For Highway Road

Advantages:

1.The arm direction can be quickly interchanged

2.Open the barrier gate by motor wheel when power off and automatic locking when power on.

3.Balance boom running with a motor transmission of cranks and shafts.

4.Remote control to operate the barrier gate.

5.Auto-reverse when the boom meets obstruction.

6.Infrared photocells connector is available.

7.Loop detector connector is available.

8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).

9.Connector for traffic light(AC220V,power less than 40W)

10.Offering dry contact signal for car parking system(COM,NC,NO)

11.Auto-delay when closing(adjustable)

Technical Data:

1 Working temperature(motor): -35℃~+85℃

2 Working temperature(control panel): -35℃~+85℃

3 Voltage:220V±10%,50HZ or 110V±10%,60HZ

4 Rated Power:80W,capacitor:9+uF/450W

5 Humidity:≤90%RH

6 Distance of remote control:100M＞L≥30M in the open place

Selection of spring.

Maintenance

1)Keep the barrier gate clean.

2)Check the joints every month in case of any loose parts.

3)Check the spring elasticity after barrier gate running 30,000times

4)Check the easily worn-out parts(like spring,limit switch)every half year and renew it.

5)Remote control distance will be shortened or not work in cases like big object screening, battery run out.extreme weathers.

FAQ:

1. When barrier finish closing, why does the arm open itself slowly?

the spring is too tight, you need release the spring a little, then test it again.
see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
reset the balance position and the electrical limit switch.

2. Why does the controller panel operate with "Di Di Di" abnormal noises?

As for this, it means the resistance on controller board is broken, if you have professional tools to check,
then replace that broken resistance, if not, replace that controller panel.

3. Why does the barrier finish half operation of opening and closing?

If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.

4. When barrier closed, why is there a 5 degree angle of inclination?

5. When barrier finish open, but it closes itself without any order control, what's the problem?

To check the loop cable first, because the loop cable maybe brokem
To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.

6. Why does the arm wave a lot when opening and closing?
