Bright Thermal Spray Babbitt Wire 1.6mm 2.0mm 3.175mm For Flame Spray Systems
Thermal Spray Babbitt Wire Used In Arc Spray & Flame Spray Systems
Product Overview
TANKII Babbitt Thermal Spray Wire is a high tin, lead free Babbitt wire specifically designed for spraying in arc spray and flame spray systems. It Produces dense, well-bonded coatings particularly to high speed and heavy duty bearings.
Babbitt metal Sn8-4, Sn11-6
Chemical Composition
| Type | Chemical composition | |||
| Sn | Sb | Cu | other | |
| Babbitt wire | 90 | 7~8 | 3~4 |
0.25 |
Physical Properties
| Grade | Density | Melting point |
| Babbitt wire | 6.67 g/cm3 | 354 °C |
Typical Deposit Characteristics:
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| Nil | 3000 psi |
48 lbs /hr/100A
|
70% | Good |
Standard Sizes & Packing:
| Diameter | Packing | Wire Weight |
| 1/16 (1.6mm) | D 300 Spool | 15kg((33 lb)/spool |
Other sizes can produced based on customers’ requirement.
Application or properties:
For use on heavy machinery such as high speed bearing bush of steam turbine, gas turbine and combustion engine
For use on components such as compression machine, ball grinding mill, beating machine bearing, bearing bush, steel rolling machine, dryer machine
Applications on bearings and bearing bush of ship machinery, chemical machinery, mine machinery, reduction gears and mechanical seal.

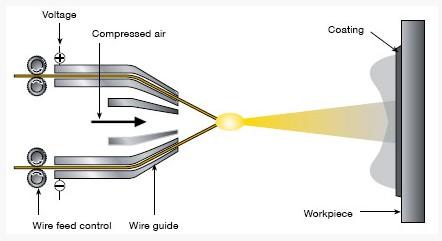

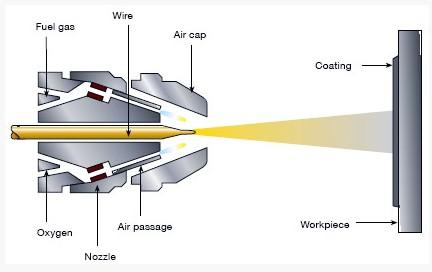

It is used in the flame spraying, arc spraying, supersonic plasma spraying, the ordinary plasma spraying.
Diameter: 1.2mm, 1.6mm, 2.0mm, 3.0mm
Technical Index
1 Coating Hardness: 23~25 HRC
2 Bond Strength: 60Mpa above
3 Working Temperature: 1250 °C below
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Our Services
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
More detail information, please feel free contact us!
