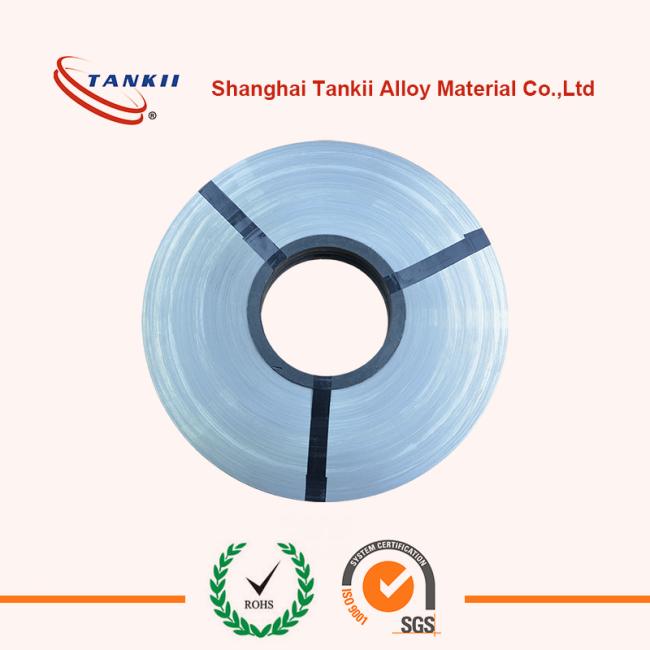

Nilo42 FeNi Glass Sealing Kovar Alloy FeNi42 Strip For Glass Sealed Making Material
Nilo42 FeNi Glass Sealing alloy strip FeNi42 strip Used for glass sealed material making electron tubes, transistors
Nilo42 alloy is mainly composed of iron, nickel elements. It is characterized with a fixed coefficient of expansion. Increase the thermal expansion coefficient and the Curie point with increase of nickel content.
Nilo42 alloy is widely used the structure of the sealing material in the electric vacuum industry.
Normal composition%
| Ni | 41.5~42.5 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | ≤0.8 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 | Al | ≤0.1 |
Basic physical constants and mechanical properties of the alloy:
| brand | Thermal conductivity | Specific heat capacity | Density | Electric resistivity | Curie point |
| Nilo42 | 14.6 | 502J | 8.12 | 0.61 | 360 |
| Typical expansion character(10 -6 / ºC ) | ||||||||
| Temperature range | 20~100 | 20~200 | 20~300 | 20~350 | 20~400 | 20~450 | 20~500 | 20~600 |
| Expansion coefficient | 5.6 | 4.9 | 4.8 | 4.95 | 5.9 | 6.9 | 7.8 | 9.2 |
Typical Mechanical properties
| Tensile Strength | Elongation |
| Mpa | % |
| 490 | 35 |
| The heat treatment process | |
| Annealing | Heated to 900 ±20ºC in a hydrogen atmosphere |
| Holding time, h | 1 hour |
| cooling | With speed not more than 5 ºC / min. cooling to below 200 ºC |
Nilo42 alloy is mainly used for soft glass and ceramic seal, such as electron tubes, transistors and integrated circuit of fuses, framework, and the sealing plug
