ODN Fiber Optic PLC Splitter 1x32 Tight Buffer White Hytrel 0.9mm LSZH
ODN 1:32 Optical Splitter MIni Module Fiber Optic PLC Splitter 1x32 Tight Buffer White Hytrel 0.9mm LSZH
Description Of Fiber Optic PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
PLC splitter Applications:
- LAN, WAN & Metro Networks
- Telecommunication Networks
- Passive Optical Networks
- FTT(X) Systems
- CATV links
- Value Added Modules
- Optical signal distribution
- Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
- Compliance
optical cable splitter Features:
1x4, 1x8, 1x16, 1x32 and 1x64 configurations available
2x4, 2x8, 2x16, 2x32 configurations available
Telcordia GR-1209 & GR-1221 qualified
Low insertion loss, PDL, Back Reflection
High uniformity
Compact package
1x32 Fiber Splitter Optical Performances:
| Parameter | Sepcification | ||||||||||
| Operating Wavelength(nm) | 1260~1620 | ||||||||||
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 2*4 | 2*8 | 2*16 | 1*32 | 2*32 | 1*64 | 2*64 |
| Insertion Loss(dB) Max. | <4.0 | <7.3 | <10.8 | <13.8 | <7.6 | <11.2 | <14.5 | <17.2 | <18.2 | <20.5 | <21 |
| Unifromity(dB) Max. | <0.6 | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 | <3.0 |
| PDL(dB) Max. | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 | <0.3 |
| Directivity(dB) Min. | 55 | ||||||||||
| Return Loss(dB) Min. | 55(50) | ||||||||||
| Opterating Temperature(°C) | -40~+85 | ||||||||||
| Storage Temperature(°C) | -40~+85 | ||||||||||
| Fiber Length | 1m or custom length | ||||||||||
| Fiber Type | Corning SM-28e fiber | ||||||||||
| Connector Type | Custom specified | ||||||||||
pon splitter Product details

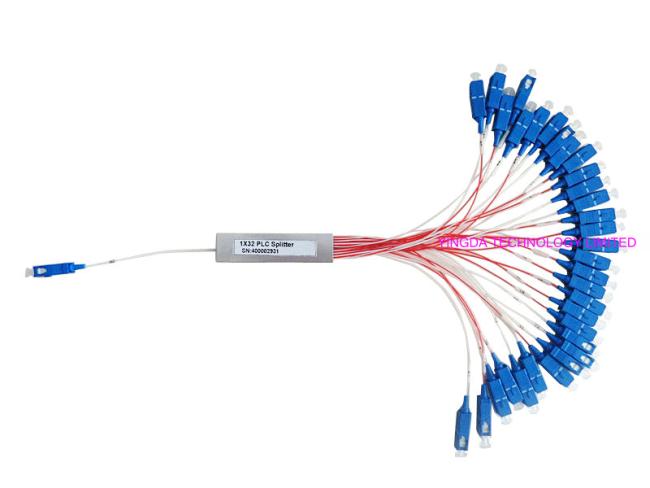

1x32 PLC Splitter, input white, output red and white, with SC/UPC connectors, 1mts LSZH G657A1

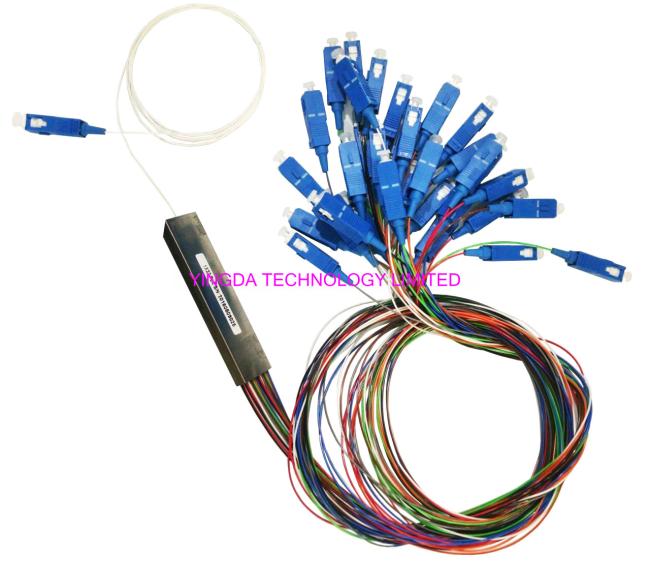

1x32 PLC Splitter, input white, output:white,black,red,green,blue,purple,yellow,orange,...etc, with SC/UPC connectors, 1.5mts LSZH G657A1

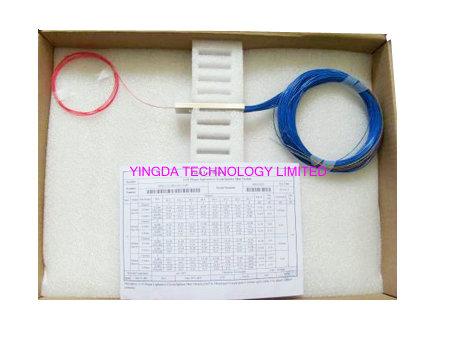

1x32 PLC Splitter, input red, output:blue, without connectors, steel tube 900um1.5mts LSZH G657A1
PLC SPLITTER CAN USED IN BELOW TERMINAL BOX
LGX Modular Welding Tray

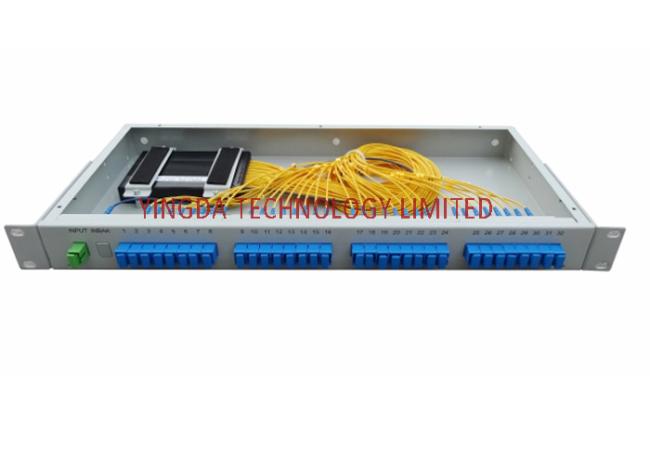

19" ODF Rack Mount 19" Patch Panel Rack Mount
Optical beam splitter order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box | 01X02 01x04 01x08 …… 02x16 02x32 02x64 | 0=G652D 1=G657A C=Customize | 1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube | 1=1m 2=1.5m C=Customize | 0=no connector |
PLC fiber splitter
1X3 PLC has 2 input bits and 32 output bits. PLC bulkhead also offers single position 900 µm loose tube. Contactless PLC dividers have no contacts and are therefore less susceptible to damage. Connection Type PLC splitters are compatible with standard fiber optic connectors.
Blockless PLC splitters are smaller than box splitters and offer better fiber protection than standard splitters. Mainly used in various connection expansion boxes or network cabinets.
Types of Fiber Optic Splitter
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter

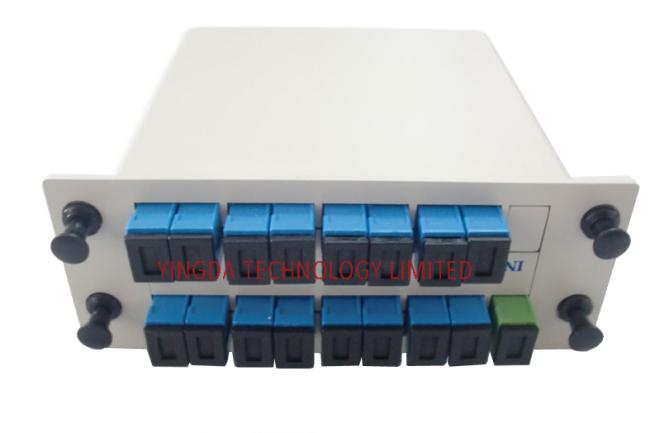

4. Cassette type PLC splitter Module

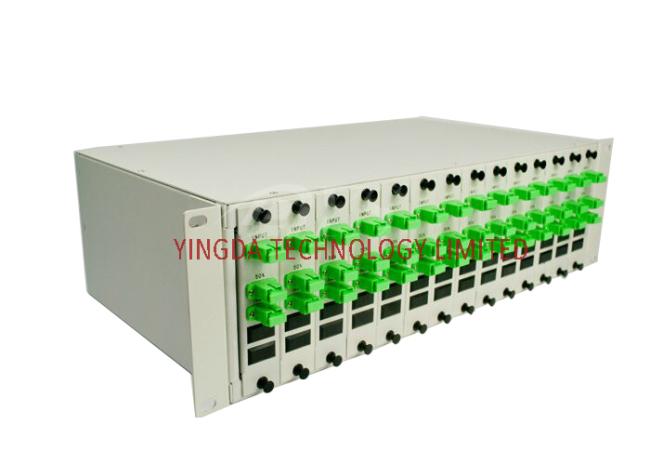

5. Rack type PLC splitter Module

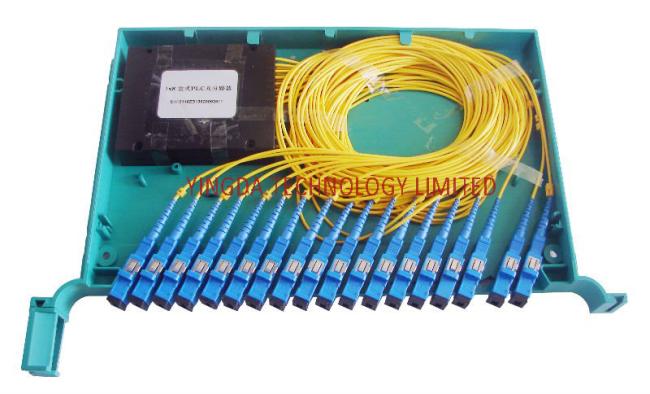

6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
