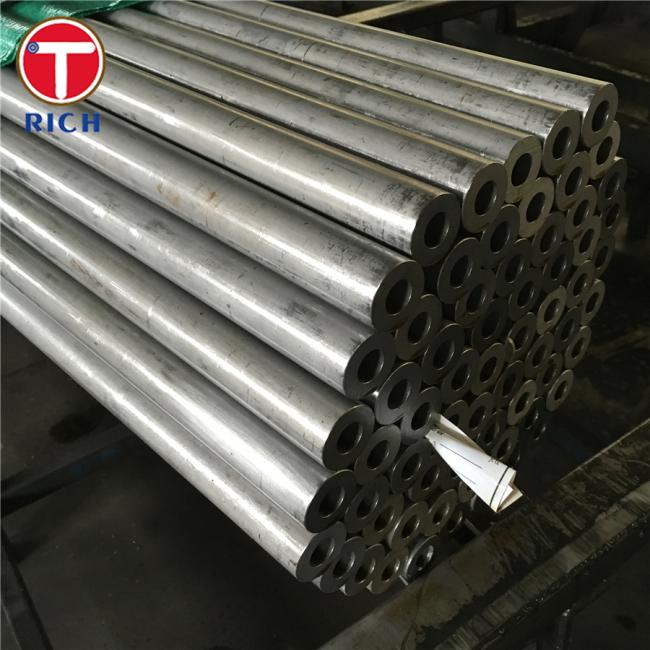

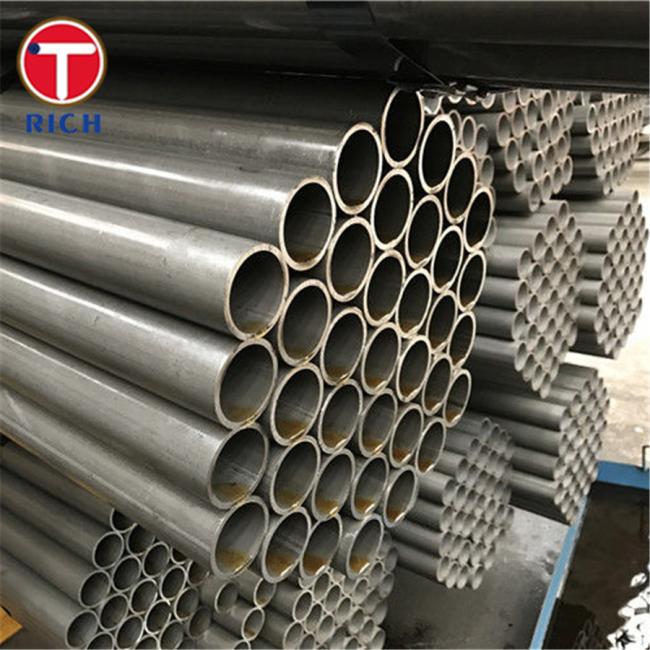

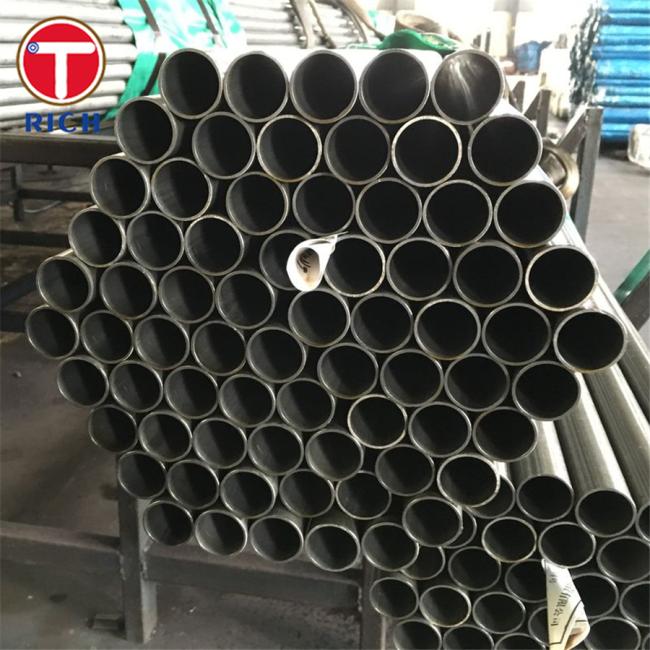

Electric Resistance Cold Drawn Welded Steel Tubes, also known as ERW tubes, are widely used in the mechanical industry due to their excellent strength, durability, and versatility. One of the most popular standards for ERW steel tubes is ASTM A513, which specifies the material, chemical composition, mechanical properties, and tolerances for this type of tubing. In this article, we will explore the key features of ASTM A513 ERW steel tubes and their applications in various industries.
Material
ASTM A513 ERW steel tubes are made from carbon steel that is hot-rolled and pickled before being cold-drawn through a series of dies. The resulting tubes have a smooth surface finish, high dimensional accuracy, and excellent mechanical properties. The steel used for these tubes is classified into two grades:
- Grade 1008: This is a low-carbon steel with good weldability, formability, and toughness.
- Grade 1010: This is a higher-carbon steel that offers better strength and hardness than Grade 1008.
Specification
ASTM A513 ERW steel tubes are available in a range of sizes, shapes, and wall thicknesses to suit various applications. The standard sizes range from 0.5 inches to 2.5 inches in diameter and from 0.035 inches to 0.120 inches in wall thickness. The tubes can be round, square, or rectangular in shape, depending on the specific requirements of the application.
Chemical Composition
The chemical composition of ASTM A513 ERW steel tubes is specified in the standard, and the following table shows the typical composition for Grade 1008 and Grade 1010 steel:
| Element | Grade 1008 | Grade 1010 |
|---|---|---|
| Carbon | 0.10% max | 0.08-0.13% |
| Manganese | 0.30-0.50% | 0.30-0.60% |
| Phosphorus | 0.040% max | 0.040% max |
| Sulfur | 0.050% max | 0.050% max |
Mechanical Properties
ASTM A513 ERW steel tubes have excellent mechanical properties that make them ideal for use in the mechanical industry. The following table shows the typical mechanical properties for Grade 1008 and Grade 1010 steel:
| Property | Grade 1008 | Grade 1010 |
|---|---|---|
| Tensile Strength | 45,000 psi | 55,000 psi |
| Yield Strength | 40,000 psi | 50,000 psi |
| Elongation | 20% min | 15% min |
| Hardness (Rockwell B) | 65 max | 75 max |
Steel Grade
ASTM A513 ERW steel tubes are available in two grades: Grade 1008 and Grade 1010. The choice of steel grade depends on the specific application and the required mechanical properties.
Application
ASTM A513 ERW steel tubes are widely used in the mechanical industry for a range of applications, including:
- Automotive and transportation
- Construction and infrastructure
- Manufacturing and fabrication
- Agricultural equipment
- Material handling equipment
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
