ASME SA213 Grade T12 Internal Thread Seamless Low-Alloy Heat Exchanger Tube with Cr-Mo Design and 30-325 mm OD

Name: ASME SA213 Grade T12 Internal Thread Seamless Low-Alloy Heat Exchanger Tube with Cr-Mo Design and 30-325 mm OD
Brand: TORICH INTERNATIONAL LIMITED

Price Negotiable

Price: 800-1000 USD/Ton

MOQ: 1Ton

Delivery Time: 20-30days upon products

Brand: TORICH

Product Description

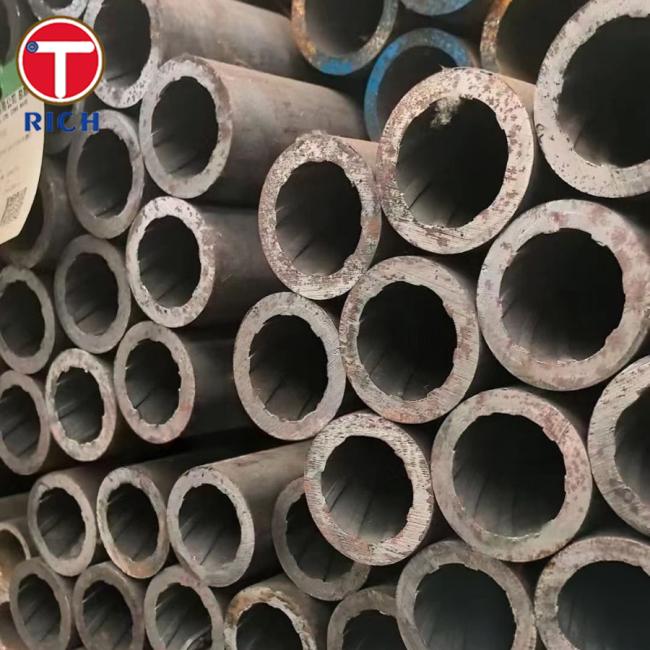

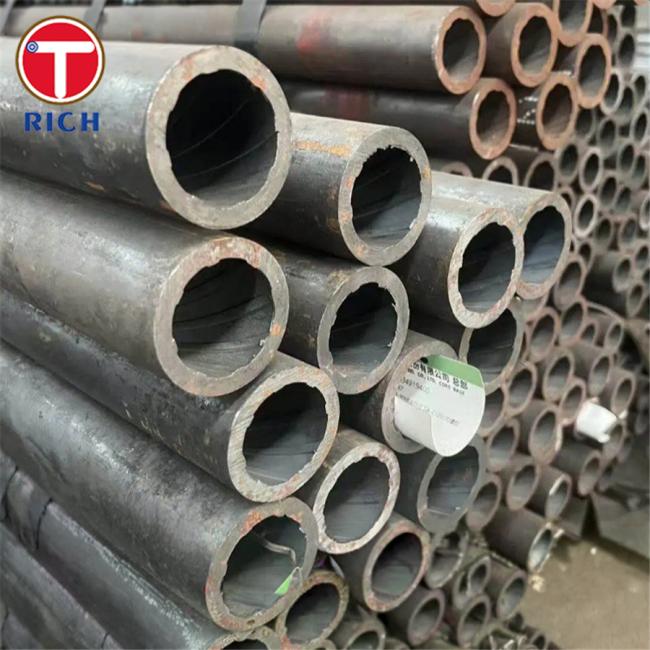

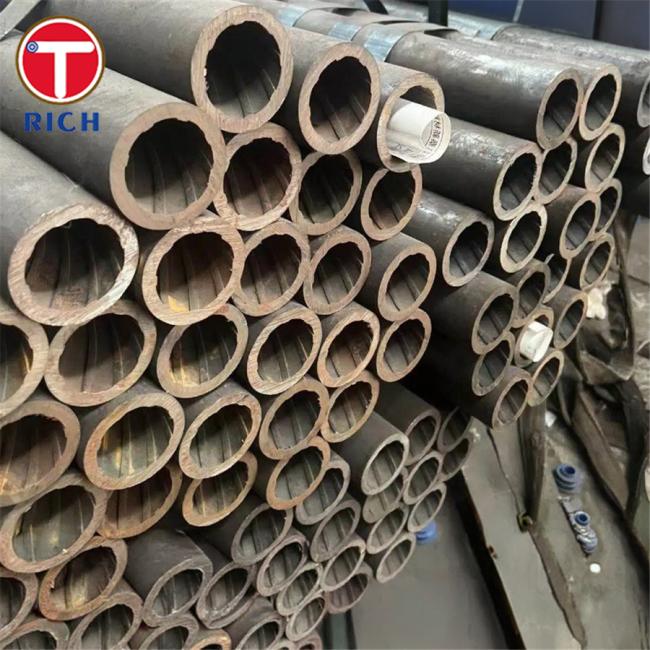

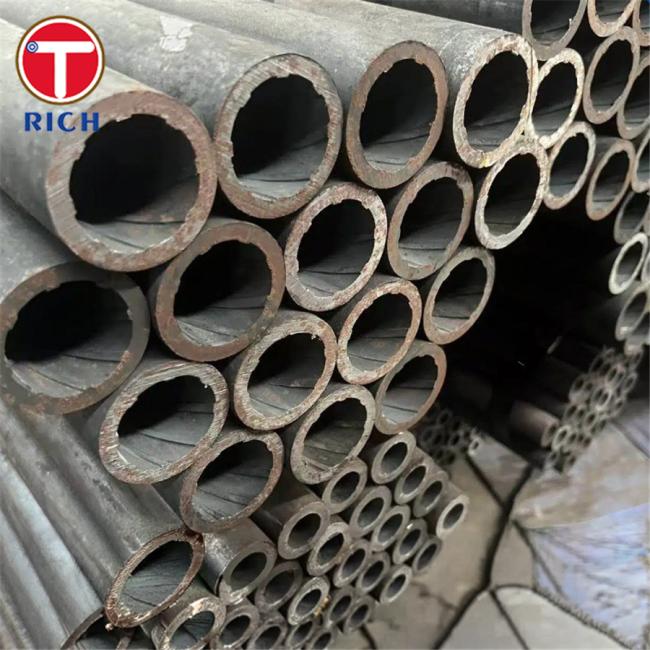

ASME SA213 Grade T12 Internal Thread Tube — Seamless Low-Alloy Tube for Heat Exchangers

Material Overview

ASME SA213 Grade T12 (UNS K11562) is a seamless chromium–molybdenum (Cr-Mo) low-alloy steel tube widely specified for boiler, superheater, and heat-exchanger service where elevated-temperature strength and pressure integrity are required. The ASME SA-213 specification is the Code adoption of ASTM A213/A213M for these seamless alloy-steel tubing applications.

Specifications

Product form: Seamless tube with internal threading (typically threaded at tube ends for coupling/assembly).
Manufacturing route: Seamless, supplied hot-finished or cold-finished as specified.
Typical size range (commonly supplied under ASTM/ASME):
- ID/OD range: from 1/8 in (3.2 mm) ID up to 5 in (127 mm) OD (project-dependent)
- Wall thickness: 0.015–0.500 in (0.38–12.7 mm)
Threading (customizable):
- NPT taper internal thread to ASME B1.20.1 (common for pressure-tight threaded joints) with Go/No-Go gaging available upon request.
- Other thread forms (e.g., BSPT/ISO) can be supplied if specified in the PO.
Heat treatment (typical supply conditions, per grade and order): full or isothermal anneal; normalizing & tempering; or subcritical anneal (commonly referenced for SA213 tubing supply).
Inspection & testing (typical for tubing supply): chemical analysis, tensile and hardness tests, and dimensional/surface inspection; additional NDT can be specified (e.g., eddy current/UT/hydro).
Further processing options: U-bend, finning, or other heat-exchanger tube fabrication can be supplied to drawing.

Key Features

Cr-Mo low-alloy design supports stable performance in many elevated-temperature heat-transfer duties.
Seamless construction minimizes risk associated with weld seams in pressure service.
Internal thread configuration enables faster assembly/disassembly in maintenance-focused designs (when threaded joints are permitted by the design code).
Procurement-friendly compliance under ASME/ASTM frameworks with standard testing and marking practices.

Our Advantages

“How do I prove this is real SA213 T12, fully traceable to a heat/lot?”
We provide heat/lot traceability with clear tube marking, full documentation packages (MTC), and optional positive material identification (PMI) and third-party inspection. For projects that reference general tubing requirements (marking/testing/inspection), we align supply to the applicable general requirements used alongside product specs.
“How do I reduce the risk of early heat-exchanger tube failures and unplanned shutdowns?”
Buyers commonly focus on surface condition, dimensional control, and NDT effectiveness because tube failures often originate from localized damage or corrosion mechanisms. We support enhanced inspection plans (eddy current/UT, surface checks, dimensional mapping) and help match grade/heat treatment to service conditions (temperature, medium, corrosion allowance) to mitigate common exchanger failure drivers.
“Will the internal threads seal reliably, and how do you control thread quality?”
Threaded joints fail most often from incorrect taper/engagement, poor gaging practice, or repeated make-up damage. We can machine threads to recognized thread standards (e.g., NPT per ASME B1.20.1), apply Go/No-Go gage inspection, and protect threads with caps and packaging to prevent transit damage—improving sealing reliability on site.

Chemical Composition

Grade	UNS	C	Si	Mn	P	S	Cr	Mo	Ni	N	V	Nb	W	B
SA213 T11	K11597	0.05–0.15	0.50–1.00	0.30–0.60	≤0.025	≤0.025	1.00–1.50	0.44–0.65	—	—	—	—	—	—
SA213 T12	K11562	0.05–0.15	≤0.50	0.30–0.61	≤0.025	≤0.025 (T12S: ≤0.045)	0.80–1.25	0.44–0.65	—	—	—	—	—	—
SA213 T22	K21590	0.05–0.15	≤0.50	0.30–0.60	≤0.025	≤0.025	1.90–2.60	0.87–1.13	—	—	—	—	—	—
SA213 T91 (Type 1)	K90901	0.07–0.14	0.20–0.50	0.30–0.60	≤0.020	≤0.010	8.00–9.50	0.85–1.05	≤0.40	0.03–0.07	0.18–0.25	0.06–0.10	—	—
SA213 T92	K92460	0.07–0.13	≤0.50	0.30–0.60	≤0.020	≤0.010	8.50–9.50	0.30–0.60	≤0.40	0.03–0.07	0.15–0.25	0.04–0.09	1.50–2.00	0.001–0.006

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HBW)
SA213 T11	≥415	≥205	≥30	≤163
SA213 T12	≥415	≥220	≥30	≤163
SA213 T22	≥415	≥205	≥30	≤163
SA213 T91 (Type 1)	≥585	≥415	≥20	190–250
SA213 T92	≥620	≥440	≥20	≤250

Execution Standards

ASTM / ASME: ASTM A213/A213M (product spec) and ASME SA-213/SA-213M (Code adoption); general tubing requirements commonly reference ASTM A1016/A1016M.
EN (common analogue family): EN 10216-2 (pressure purpose seamless tubes), with 13CrMo4-5 (1.7335) frequently cited as a close European grade family for Cr-Mo elevated-temperature service.
GOST (typical seamless tube frameworks): GOST 8732 (hot-formed seamless steel pipes; properties referenced via GOST 8731) and GOST 550-75 for high-pressure/high-temperature tube applications in petrochemical/oil processing contexts.
JIS: JIS G 3462 (Alloy steel tubes for boiler and heat exchanger; STBA series includes Cr-Mo grades).
GB: GB/T 5310-2023 (Seamless steel tubes and pipes for high pressure boiler); commonly referenced similar grade family includes 12CrMoG depending on project equivalency rules.

Application Fields

Power & utility boilers: superheater/reheater tubing, economizer circuits, high-temperature transfer lines.
Heat exchanger systems: shell-and-tube exchangers, air preheaters, heater coils (where Cr-Mo low alloy is selected for temperature/pressure requirements).
Petrochemical & refining: process heaters, high-temperature piping spools, exchanger bundles in elevated-temperature services.
Maintenance-friendly assemblies: internal-threaded tube ends used where quick installation, modular replacement, or frequent disassembly is required (subject to design code approval).
