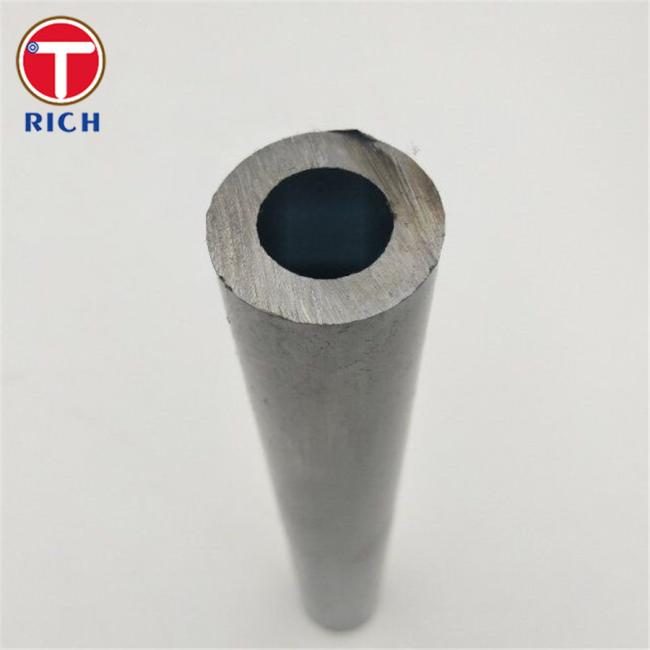

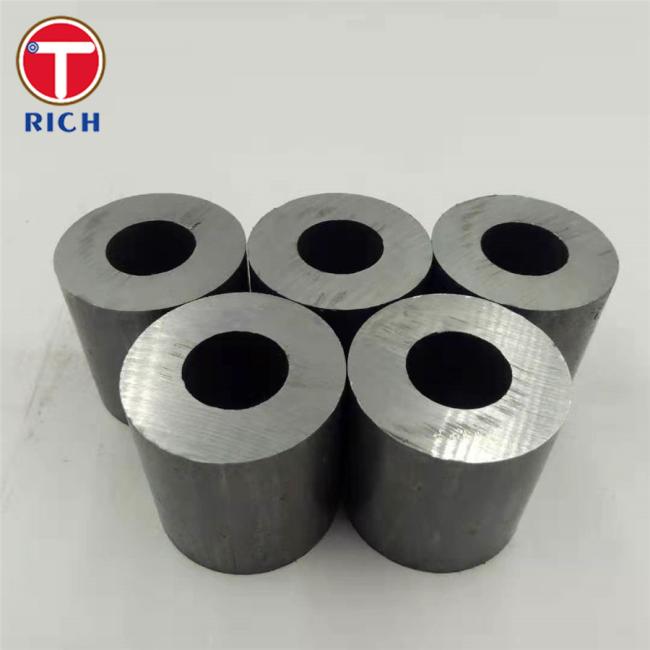

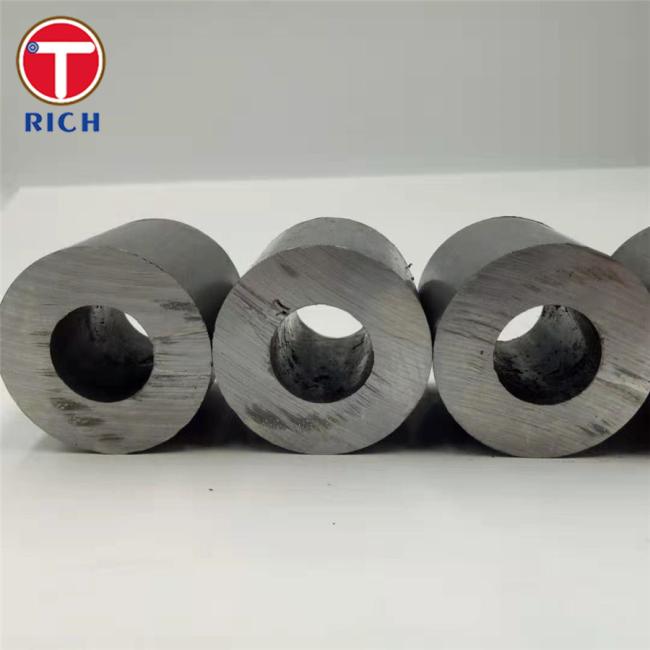

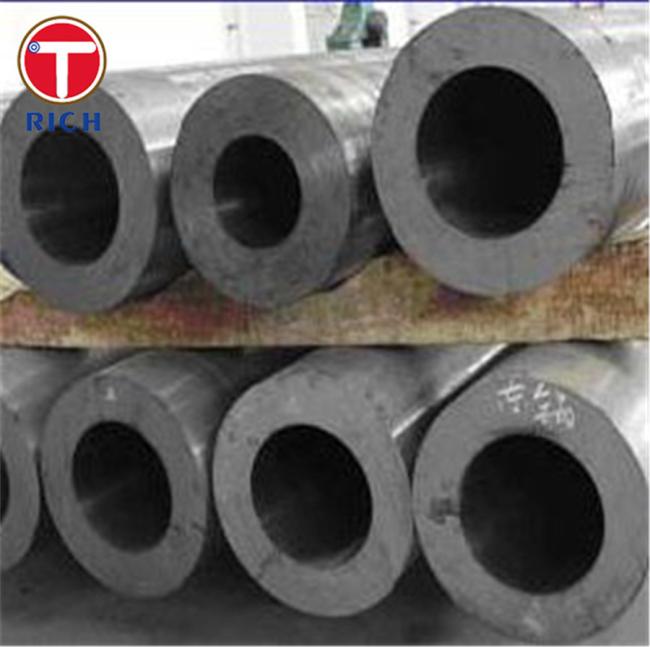

ASTM A511 TP316 304 Thick Wall Seamless Stainless Steel Pipe For Mechanical
ASTM A511 TP316 304 Thick Wall Seamless Stainless Steel Pipe For Mechanical For Heat Exchanger
Material
The material used for this seamless stainless steel pipe is ASTM A511 TP316 and TP304.
Specification
The specification of this pipe is as follows:
- Outer Diameter: Varies (customizable)
- Wall Thickness: Thick wall
- Length: 6 meters or as per customer requirements
- Standard: ASTM A511
- Grade: TP316, TP304
- Type: Seamless
Chemical Composition
The chemical composition of ASTM A511 TP316 and TP304 stainless steel used in this pipe is as follows (in weight percentage):
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| TP316 | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 10.00 | 16.00 | 2.00 |
| TP304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00 | 18.00 | - |
Mechanical Properties
The mechanical properties of ASTM A511 TP316 and TP304 stainless steel are as follows:
TP316:
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength 0.2% Offset (MPa) | 205 min |
| Elongation (% in 50mm) | 35 min |
TP304:
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength 0.2% Offset (MPa) | 205 min |
| Elongation (% in 50mm) | 35 min |
Steel Grade
This stainless steel pipe belongs to the TP316 and TP304 grades, as per ASTM A511 standard.
Application
ASTM A511 TP316 and TP304 thick wall seamless stainless steel pipes are primarily used for mechanical purposes and in heat exchangers. These pipes are known for their corrosion resistance, high strength, and excellent durability. They are commonly utilized in industries such as oil and gas, chemical, food processing, pharmaceuticals, and automotive.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
