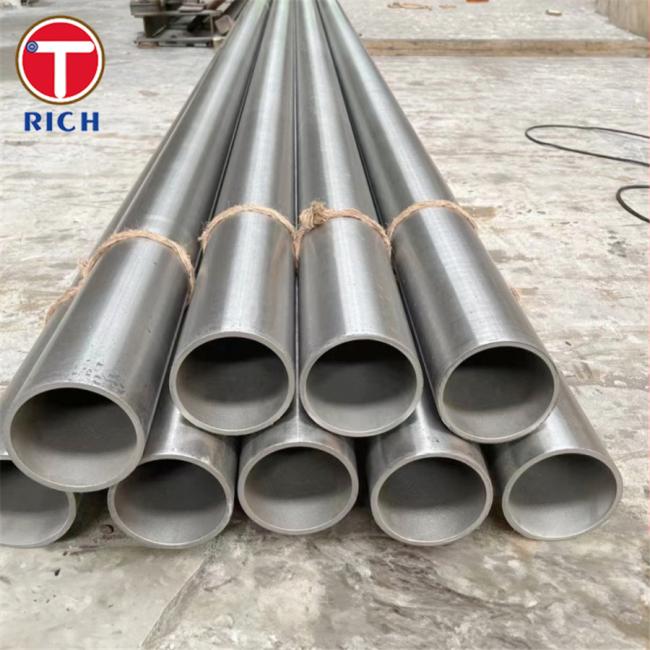

ASTM B165 Monel 400 Seamless Steel Tube Nickel Copper Alloy UNS N04400 Seamless Steel Pipe For Automobile
ASTM B165 Monel 400 Seamless Steel Tube Nickel Copper Alloy UNS N04400 Seamless Steel Pipe For Automobile
Introduction
The ASTM B165 Monel 400 seamless steel tube, also known as a nickel-copper alloy UNS N04400 seamless steel pipe, is a highly versatile material used in various industries, particularly in the automotive sector. This article will provide an overview of the material, its specifications, key features, chemical composition, mechanical properties, steel grade, applications, and possible alternative grades.
Material and Specification
The ASTM B165 Monel 400 seamless steel tube is made from a nickel-copper alloy, specifically UNS N04400. It is designed to withstand high temperatures, corrosion, and extreme environments. The seamless steel pipe is manufactured in accordance with the ASTM B165 specification, which outlines the requirements for seamless nickel-copper alloy pipes.
Key Features
The Monel 400 seamless steel tube offers several key features that make it highly desirable for automotive applications:
- Corrosion Resistance: Monel 400 exhibits excellent resistance to corrosion, making it suitable for use in harsh environments, including exposure to seawater, acids, and alkalis.
- High Strength: This alloy possesses high strength and good mechanical properties, allowing it to withstand heavy loads and stress.
- Thermal Stability: Monel 400 maintains its mechanical properties at elevated temperatures, making it suitable for applications that involve high-temperature environments.
- Low Magnetic Permeability: The low magnetic permeability of Monel 400 makes it ideal for applications where magnetic interference needs to be minimized.
- Easy Fabrication: The material can be easily fabricated, welded, and formed into various shapes, providing flexibility in design and manufacturing processes.
Chemical Composition
The chemical composition of ASTM B165 Monel 400 seamless steel tube is as follows:
| Element | Composition (%) |
|---|---|
| Nickel | 63.0 - 70.0 |
| Copper | 28.0 - 34.0 |
| Iron | Max 2.5 |
| Manganese | Max 2.0 |
| Carbon | Max 0.3 |
| Silicon | Max 0.5 |
| Sulfur | Max 0.024 |
Mechanical Properties
The mechanical properties of ASTM B165 Monel 400 seamless steel tube are as follows:
| Property | Value |
|---|---|
| Tensile Strength | 550 - 750 MPa |
| Yield Strength | 240 - 450 MPa |
| Elongation | 40% (in 50mm) |
| Hardness (HB) | Max 280 |
| Density | 8.83 g/cm³ |
| Melting Point | 1300 - 1350°C |
Steel Grade
The steel grade for ASTM B165 Monel 400 seamless steel tube is UNS N04400, which indicates the specific composition and properties of the material.
Application
The ASTM B165 Monel 400 seamless steel tube finds extensive application in the automotive industry, including:
- Exhaust Systems: Monel 400's corrosion resistance and high-temperature stability make it an excellent choice for exhaust systems, where it can withstand the harsh conditions of exhaust gases.
- Fuel Lines: The material's resistance to corrosion and its ability to maintain mechanical properties at elevated temperatures make it suitable for fuel lines, ensuring durability and ety.
- Heat Exchangers: Monel 400 is commonly used in heat exchangers due to its excellent thermal conductivity and resistance to corrosion, making it ideal for transferring heat between fluids.
- Brake Lines: The material's high strength and resistance to corrosion make it suitable for brake lines, ensuring reliable performance and longevity.
Possible Alternative Grades
While ASTM B165 Monel 400 seamless steel tube is a widely used material, there are alternative grades available that offer similar properties. Some possible alternative grades include:
- Monel K-500: This alloy offers higher strength and hardness compared to Monel 400, making it suitable for more demanding applications.
- Inconel 625: Inconel 625 is a nickel-based alloy that provides excellent corrosion resistance and high-temperature strength, making it a viable alternative for certain automotive applications.
- Hastelloy C-276: Hastelloy C-276 is a corrosion-resistant alloy that offers superior resistance to a wide range of corrosive environments, making it suitable for highly demanding automotive applications.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
