BS 6323-2 HFW2 Galvanized Steel Tube for Automobile
Hot Finished Welded Tubes BS 6323-2 HFW2 HFW3 HFW4 HFW5 Hot Finished Welded Steel Tubes For Automobile
Introduction
Hot finished welded tubes are an essential component in the automotive industry, providing strength and durability to various automobile structures. Among the different types available, BS 6323-2 HFW2, HFW3, HFW4, and HFW5 are widely used due to their excellent properties and adherence to quality standards. This article explores the material, specification, key features, chemical composition, mechanical properties, steel grade, application, and possible alternative grades of these hot finished welded steel tubes.
Material and Specification

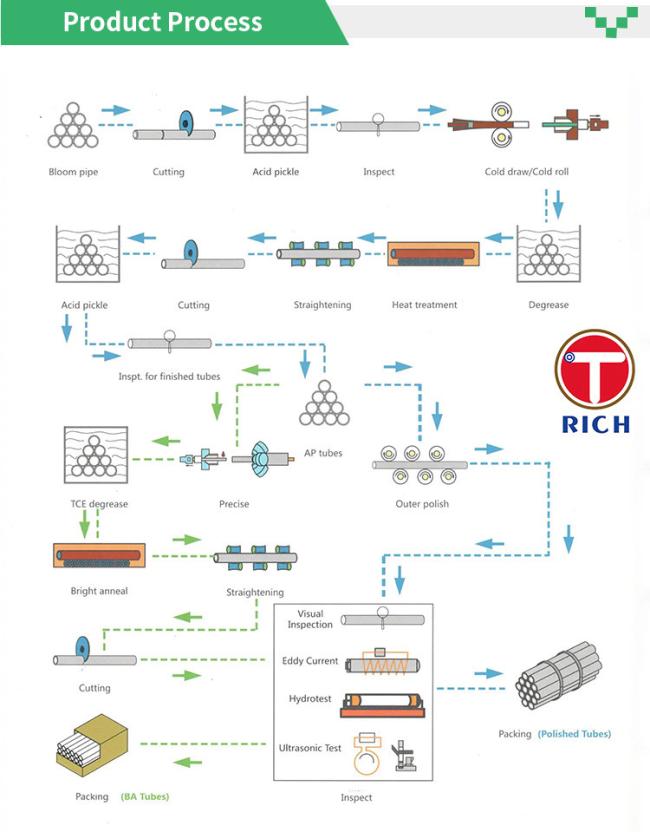

BS 6323-2 HFW2, HFW3, HFW4, and HFW5 tubes are manufactured using high-quality steel, ensuring superior performance and reliability. These tubes are produced through a hot finishing process, which involves heating the steel billet and then passing it through a series of rollers to achieve the desired shape and dimensions. The tubes are then welded using advanced techniques to ensure a strong and seamless joint.
The specification for these hot finished welded tubes is defined in BS 6323-2, which outlines the requirements for dimensions, tolerances, and technical delivery conditions. This standard ensures that the tubes meet the necessary criteria for use in the automotive industry.
Key Features
The hot finished welded tubes BS 6323-2 HFW2, HFW3, HFW4, and HFW5 offer several key features that make them ideal for automobile applications:
- High Strength: These tubes exhibit excellent strength properties, providing structural integrity and support to automobile components.
- Durability: With their robust construction, these tubes offer exceptional durability, ensuring long-lasting performance even under demanding conditions.
- Seamless Welding: The advanced welding techniques employed during manufacturing result in seamless joints, minimizing the risk of leaks or structural weaknesses.
- Dimensional Accuracy: The hot finishing process ensures precise dimensions and tight tolerances, allowing for easy integration into various automobile structures.
- Corrosion Resistance: The steel used in these tubes is carefully selected to offer excellent resistance to corrosion, enhancing their longevity and reliability.
Chemical Composition (Table Presentation)
| Element | HFW2 (%) | HFW3 (%) | HFW4 (%) | HFW5 (%) |
|---|---|---|---|---|
| Carbon (C) | 0.17-0.24 | 0.14-0.20 | 0.10-0.17 | 0.08-0.15 |
| Silicon (Si) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| Manganese (Mn) | 0.40-0.70 | 0.40-0.70 | 0.40-0.70 | 0.40-0.70 |
| Phosphorus (P) | ≤0.035 | ≤0.035 | ≤0.035 | ≤0.035 |
| Sulfur (S) | ≤0.035 | ≤0.035 | ≤0.035 | ≤0.035 |
Mechanical Properties (Table Presentation)
| Property | HFW2 | HFW3 | HFW4 | HFW5 |
|---|---|---|---|---|
| Tensile Strength | 420-580 MPa | 420-580 MPa | 420-580 MPa | 420-580 MPa |
| Yield Strength | ≥ 275 MPa | ≥ 275 MPa | ≥ 275 MPa | ≥ 275 MPa |
| Elongation | ≥ 21% | ≥ 21% | ≥ 21% | ≥ 21% |
| Impact Energy | ≥ 27 J | ≥ 27 J | ≥ 27 J | ≥ 27 J |
Steel Grade
BS 6323-2 HFW2, HFW3, HFW4, and HFW5 are classified under the steel grade designation system, which signifies their specific chemical composition and mechanical properties. These grades are carefully selected to meet the requirements of the automotive industry, ensuring optimal performance and safety.
Application
Hot finished welded tubes BS 6323-2 HFW2, HFW3, HFW4, and HFW5 find extensive application in the automotive sector. They are used in various components, including chassis, suspension systems, exhaust systems, and structural reinforcements. These tubes provide the necessary strength and reliability to withstand the demanding conditions encountered in automobiles.
Possible Alternative Grades
While BS 6323-2 HFW2, HFW3, HFW4, and HFW5 are widely used in the automotive industry, there are alternative grades available that may suit specific requirements. Some possible alternative grades include ASTM A513, DIN 2393, and JIS G3445. It is important to consult with experts and consider the specific needs of the application before selecting an alternative grade.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
