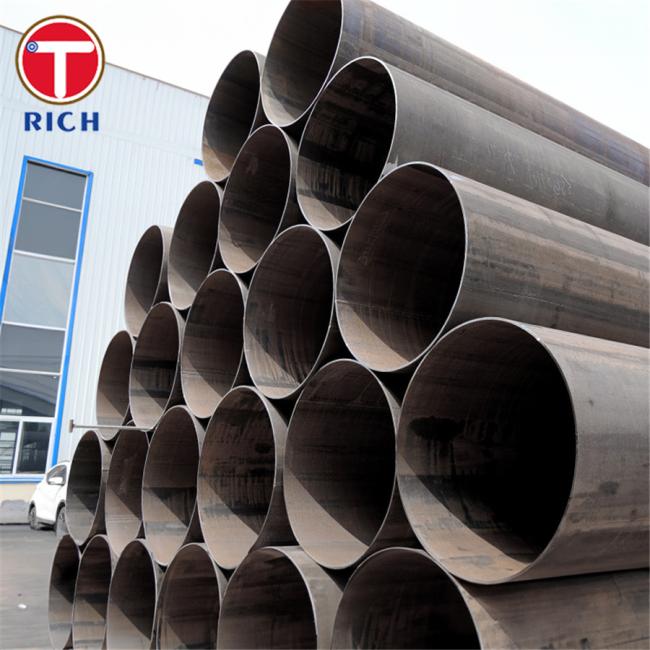

ASTM A1037 Grade A Black Furnace Butt Welded Carbon Steel Tube For Boiler
ASTM A1037 Grade A Grade B Welded Steel Tube: Black Furnace-Butt-Welded Carbon Steel Tube for Boiler
Introduction
ASTM A1037 is a standard specification that covers welded steel tubes, specifically designed for use in boiler applications. This specification includes two grades: Grade A and Grade B. These tubes are manufactured using a black furnace-butt-welding process, ensuring high-quality and reliable performance in demanding environments.
Material
The material used in the production of ASTM A1037 welded steel tubes is carbon steel. This type of steel is known for its strength, durability, and ability to withstand high temperatures, making it suitable for boiler applications.
Specification
The ASTM A1037 specification outlines the requirements for the manufacturing, testing, and performance of welded steel tubes. The tubes are typically produced in various sizes and wall thicknesses to meet specific application needs.
Chemical Composition
The following table presents the typical chemical composition for ASTM A1037 Grade A and Grade B welded steel tubes:
| Element | Grade A (%) | Grade B (%) |
|---|---|---|
| Carbon (C) | 0.20 max | 0.25 max |
| Manganese (Mn) | 0.60 - 0.90 | 0.60 - 0.90 |
| Phosphorus (P) | 0.04 max | 0.04 max |
| Sulfur (S) | 0.05 max | 0.05 max |
| Silicon (Si) | 0.10 - 0.40 | 0.10 - 0.40 |
| Chromium (Cr) | 0.30 max | 0.30 max |
| Molybdenum (Mo) | 0.10 max | 0.10 max |
Mechanical Properties
The following table summarizes the mechanical properties of ASTM A1037 Grade A and Grade B welded steel tubes:
| Property | Grade A | Grade B |
|---|---|---|
| Yield Strength (ksi) | 30 min | 35 min |
| Tensile Strength (ksi) | 50 min | 60 min |
| Elongation (%) | 20 min | 20 min |
| Hardness (Rockwell) | B80 max | B85 max |
Application
ASTM A1037 welded steel tubes are primarily used in boiler applications, where they are subjected to high pressure and temperature conditions. These tubes are essential components in various industries, including:
- Power generation
- Oil and gas
- Chemical processing
- Water treatment
Their robust mechanical properties and chemical composition make them ideal for handling the rigorous demands of these applications, ensuring safety and reliability.
