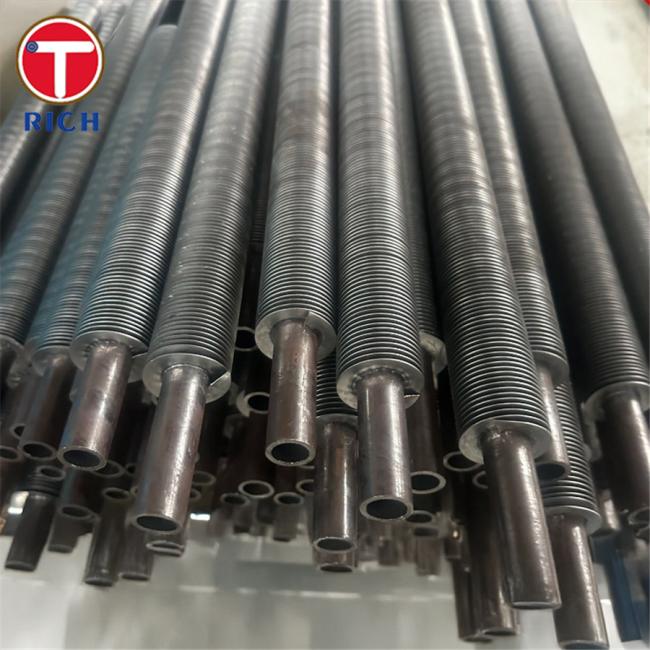

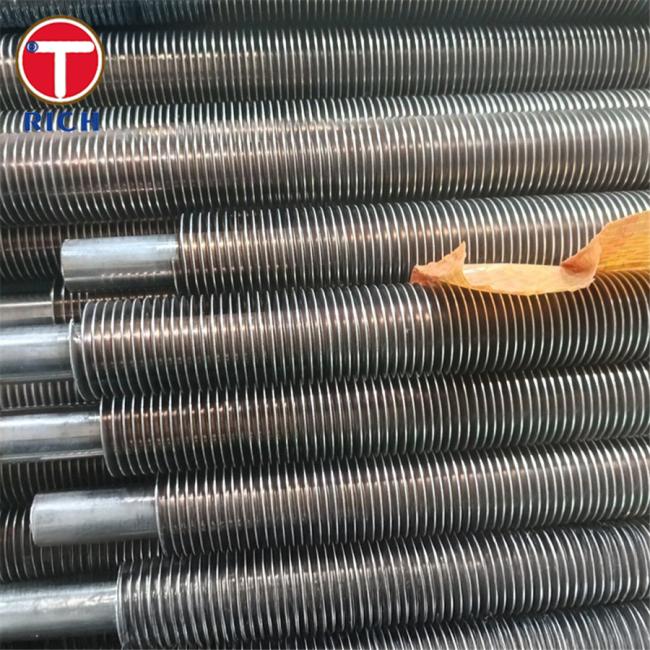

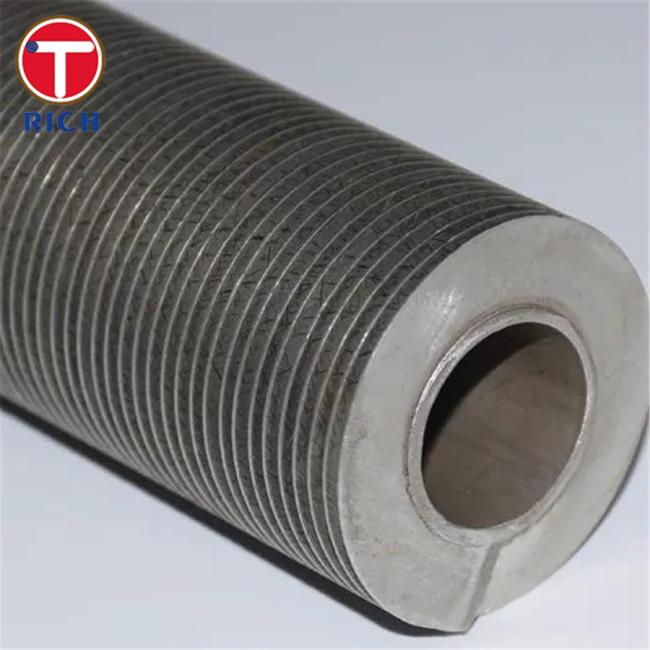

ASTM A1012 TP306 Austenitic Stainless Fin Tube For Heat Exchanger
ASTM A1012 TP304; TP304L; TP304H; TP310S; TP310H Stainless Steel Tube Austenitic Stainless Fin Tube For Heat Exchanger
Introduction
Austenitic stainless steel tubes are widely used in heat exchangers due to their excellent corrosion resistance, high-temperature strength, and good weldability. ASTM A1012 covers various grades of stainless steel tubes, including TP304, TP304L, TP304H, TP310S, and TP310H. This article provides an overview of these materials, their specifications, chemical compositions, mechanical properties, and applications.
Material Specifications
The following are the specifications for the various grades of stainless steel tubes under ASTM A1012:
- TP304: Standard grade for general applications.
- TP304L: Low carbon version of TP304, suitable for welding.
- TP304H: Higher carbon content for improved high-temperature strength.
- TP310S: High alloy content for enhanced oxidation resistance.
- TP310H: Similar to TP310S but with higher carbon for better strength at elevated temperatures.
Chemical Composition
| Grade | C (%) | Cr (%) | Ni (%) | Mn (%) | Si (%) | P (%) | S (%) |
|---|---|---|---|---|---|---|---|
| TP304 | 0.08 | 18.0-20.0 | 8.0-10.5 | 2.0 | 0.75 | 0.045 | 0.03 |
| TP304L | 0.03 | 18.0-20.0 | 8.0-10.5 | 2.0 | 0.75 | 0.045 | 0.03 |
| TP304H | 0.04-0.10 | 18.0-20.0 | 8.0-10.5 | 2.0 | 0.75 | 0.045 | 0.03 |
| TP310S | 0.08 | 24.0-26.0 | 19.0-22.0 | 2.0 | 0.75 | 0.045 | 0.03 |
| TP310H | 0.04-0.10 | 24.0-26.0 | 19.0-22.0 | 2.0 | 0.75 | 0.045 | 0.03 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| TP304 | 205 | 515-720 | 40 | 183 |
| TP304L | 193 | 485-620 | 40 | 183 |
| TP304H | 205 | 515-720 | 30 | 183 |
| TP310S | 205 | 520-720 | 40 | 183 |
| TP310H | 205 | 520-720 | 30 | 183 |
Applications
The austenitic stainless steel tubes specified in ASTM A1012 are commonly used in various applications, including:
- Heat Exchangers: Due to their excellent thermal conductivity and corrosion resistance.
- Boilers: For high-temperature applications where strength is critical.
- Chemical Processing: In environments where resistance to corrosive chemicals is necessary.
- Oil and Gas: For pipelines and equipment exposed to harsh conditions.
- Food and Beverage Industry: Where hygiene and corrosion resistance are paramount.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
