DIN 17123 StE255 Structural Steel Pipe Welded Circular Fine Grain Welded Steel Tubes For Structural Steelwork
DIN 17123 StE255, StE285, StE355, StE420, StE460 Structural Steel Pipe

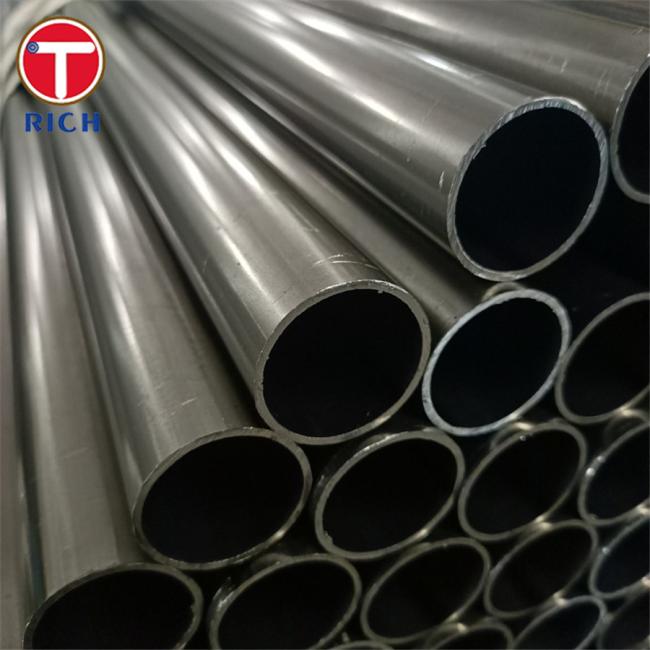

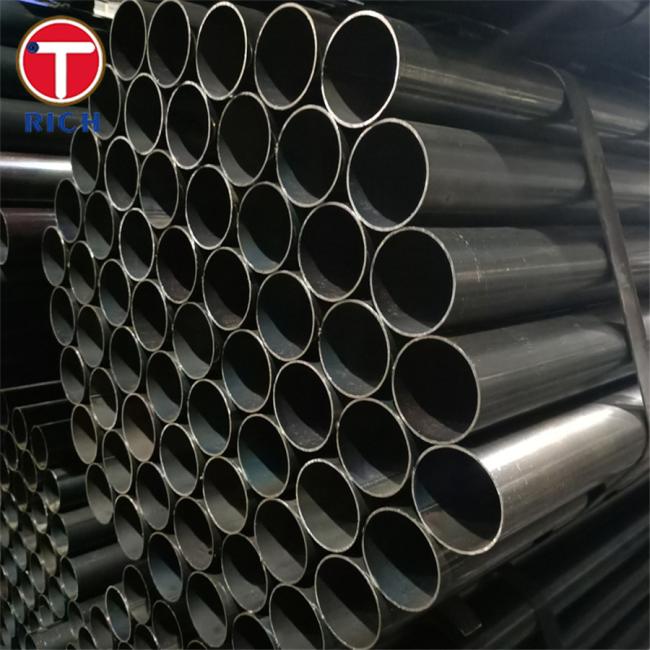

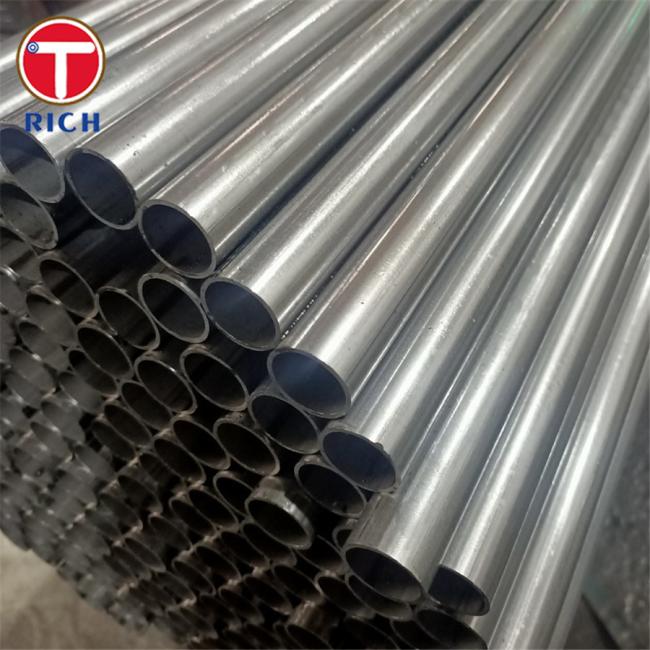

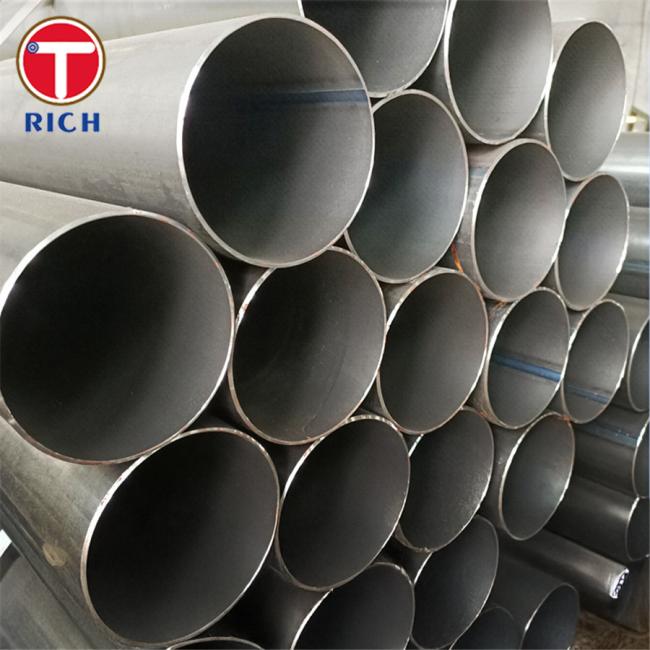

Welded Circular Fine Grain Welded Steel Tubes for Structural Steelwork
Material Specification
DIN 17123 specifies the requirements for welded circular fine grain steel tubes used in structural steelwork. These tubes are designed to provide high strength and durability, making them suitable for various construction applications. The standard covers several steel grades, including StE255, StE285, StE355, StE420, and StE460, each offering distinct mechanical properties to cater to different structural needs.
Key Features
- High Strength: The steel grades specified under DIN 17123 offer excellent tensile strength, making them ideal for load-bearing applications.
- Fine Grain Structure: The fine grain structure enhances the toughness and ductility of the steel tubes.
- Weldability: These steel tubes are designed for easy welding, facilitating their use in complex structural designs.
- Corrosion Resistance: The chemical composition provides a degree of resistance to corrosion, extending the lifespan of the structures.
- Versatility: Suitable for various structural applications, including bridges, buildings, and industrial frameworks.
Chemical Composition
The chemical composition of these steel grades is crucial for their performance. Below is a table presenting the typical chemical composition for each grade:
| Element | StE255 | StE285 | StE355 | StE420 | StE460 |
|---|---|---|---|---|---|
| C | ≤ 0.20% | ≤ 0.20% | ≤ 0.20% | ≤ 0.20% | ≤ 0.20% |
| Si | ≤ 0.55% | ≤ 0.55% | ≤ 0.55% | ≤ 0.55% | ≤ 0.55% |
| Mn | 1.00-1.60% | 1.00-1.60% | 1.00-1.60% | 1.00-1.60% | 1.00-1.60% |
| P | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% |
| S | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% | ≤ 0.035% |
Mechanical Properties
The mechanical properties of these steel grades determine their suitability for different structural applications. The table below outlines the typical mechanical properties:
| Property | StE255 | StE285 | StE355 | StE420 | StE460 |
|---|---|---|---|---|---|
| Yield Strength (MPa) | ≥ 255 | ≥ 285 | ≥ 355 | ≥ 420 | ≥ 460 |
| Tensile Strength (MPa) | 370-510 | 410-550 | 470-630 | 520-680 | 550-720 |
| Elongation (%) | ≥ 20 | ≥ 19 | ≥ 18 | ≥ 17 | ≥ 16 |
Steel Grade
The steel grades covered under DIN 17123 are designed to meet various structural requirements:
- StE255: Suitable for general structural applications with moderate strength requirements.
- StE285: Offers slightly higher strength, suitable for more demanding structural applications.
- StE355: Provides a balance of strength and ductility, ideal for a wide range of structural uses.
- StE420: High-strength steel suitable for heavy-duty structural applications.
- StE460: Offers the highest strength, ideal for the most demanding structural environments.
Application
These steel tubes are widely used in:
- Construction of bridges and buildings
- Industrial frameworks and supports
- Structural components in machinery
- Infrastructure projects requiring high-strength materials
Possible Alternative Grades
Depending on specific requirements, alternative steel grades may be considered:
- EN 10219 S355J2H: Offers similar mechanical properties and is often used in structural applications.
- ASTM A500 Grade C: A North American standard that provides comparable strength and ductility.
- BS 4360 Grade 50D: A British standard with similar applications in structural steelwork.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
