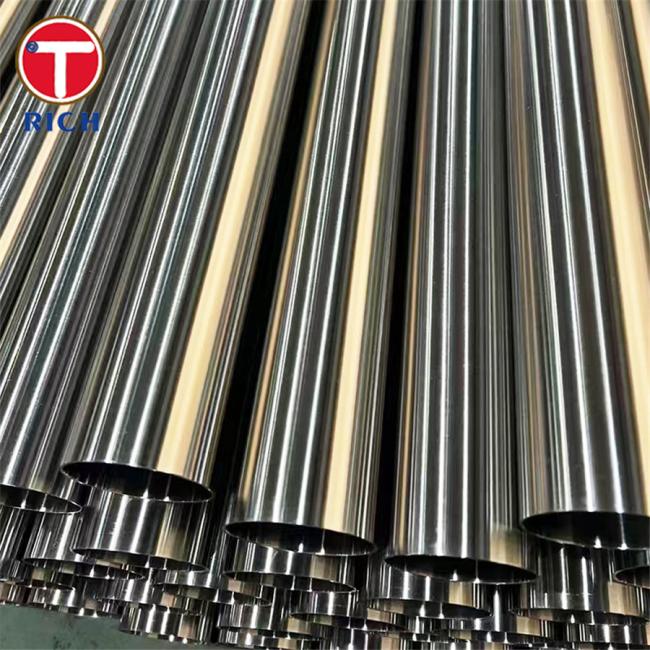

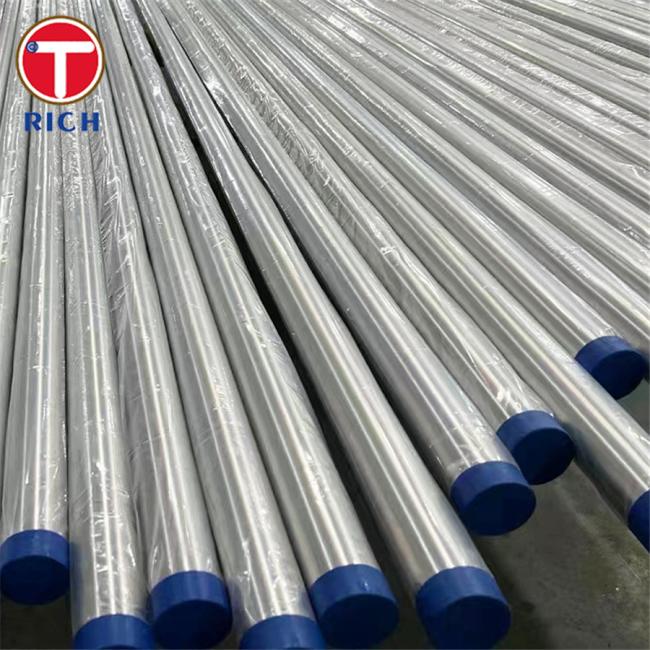

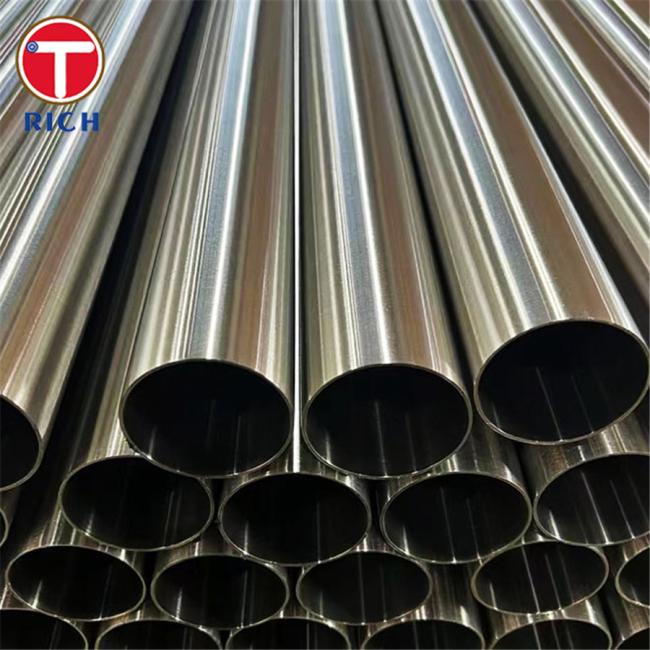

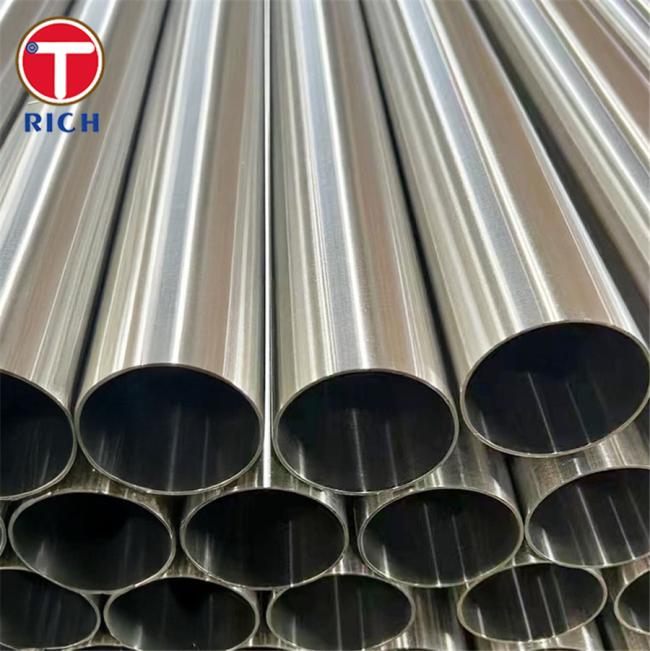

08X17H13M2T Round Stainless Steel Tube 316Ti Stainless Steel Pipe For High Temperature
08X17H13M2T Round Stainless Steel Tube 316Ti Stainless Steel Pipe For High Temperature
Material
08X17H13M2T is a Russian designation for a titanium-stabilized austenitic , equal to 316Ti grade. it's miles designed to be used in excessive-temperature environments in which corrosion resistance and mechanical sturdiness are essential.
Specification
- Elegant: GOST 9941-80 one, ASTM A213, A312 / EN 1.4571 / JIS SUS 316Ti
Shape: spherical tube/pipe
Size: Outer diameter and wall thickness as in step with requirement, normally beginning from 6mm to 630mm diameter, with numerous wall thicknesses.
Duration: typically furnished in random or steady lengths in step with patron specifications
Floor Stop: Pickling, polished, or as requested
Key Features
- incredible corrosion resistance in oxidizing and mildly lowering atmospheres
immoderate resistance to intergranular corrosion due to titanium stabilization
nicely mechanical houses at improved temperatures (as much as 870°C)
robust resistance to pitting and crevice corrosion in chloride environments
applicable weldability and formability
lengthy issuer lifestyles in immoderate temperature and stress programs
Chemical Composition
| Element | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| % | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 5×C min to 0.70 | ≤0.10 | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (σb) | ≥520 MPa |
| Yield Strength (σ0.2) | ≥210 MPa |
| Elongation (δ5) | ≥40% |
| Hardness (HB) | ≤200 |
| Impact Toughness (ISO-V) | ≥40 J (at room temperature) |
| Operating Temperature Range | Up to 870°C |
Equivalent Grades
| Country/Standard | Grade |
|---|---|
| ASTM | A182 F316Ti, A213 TP316Ti |
| EN | 1.4571 |
| GOST | 08X17H13M2T |
| JIS | SUS 316Ti |
| GB (China) | 0Cr17Ni12Mo2Ti |
Application
- warm temperature exchangers and boilers strolling beneath excessive temperatures
Chemical processing system uncovered to corrosive media
Furnace additives and excessive-temperature piping systems
Petrochemical corporation piping and system
Offshore structures and marine packages at risk of chloride-triggered corrosion
meals processing device in which corrosion resistance is critical
power plants and superheater tubes
This specialised 08X17H13M2T (316Ti) is exceedingly suitable for environments requiring sustained mechanical power and corrosion resistance at multiplied temperatures, making it a dependable choice for business programs disturbing sturdiness and safety.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
