A500 Carbon Steel Square Tube: High Strength Carbon Steel Structural Tubing for Building Structure
Material

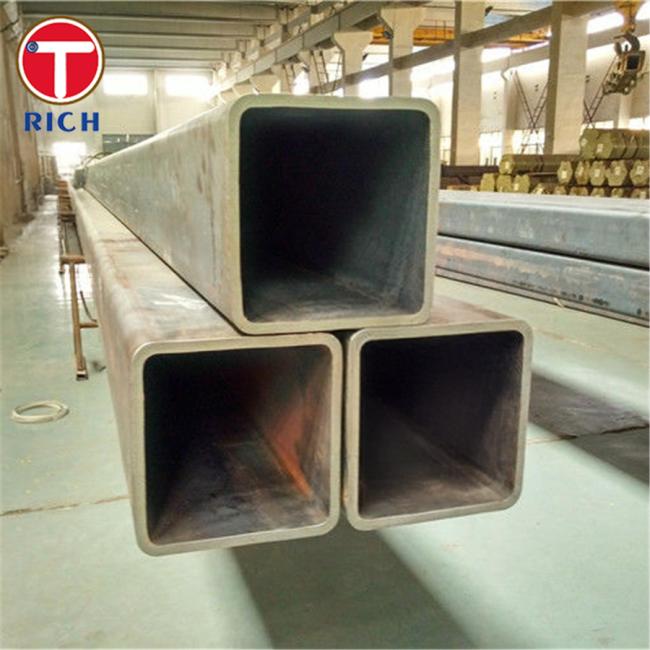

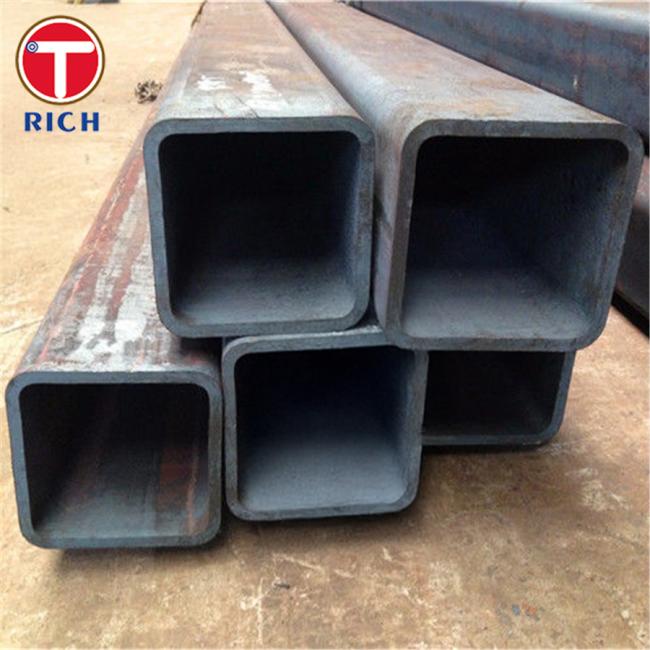

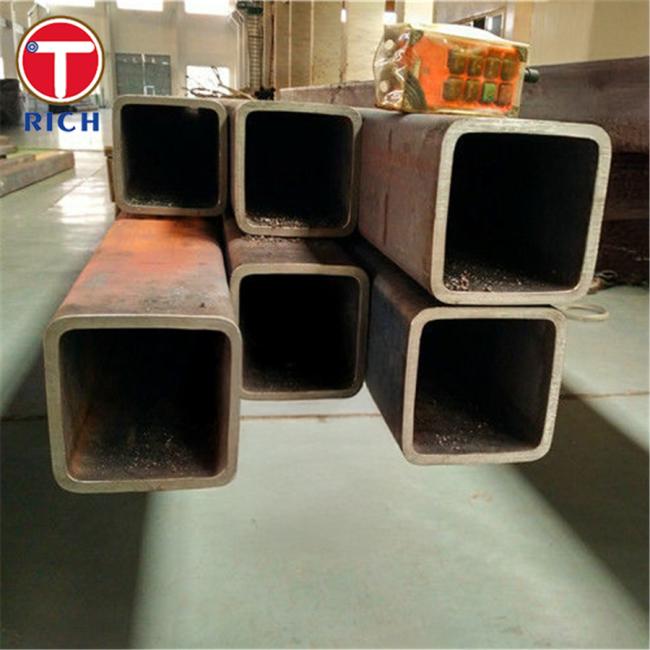

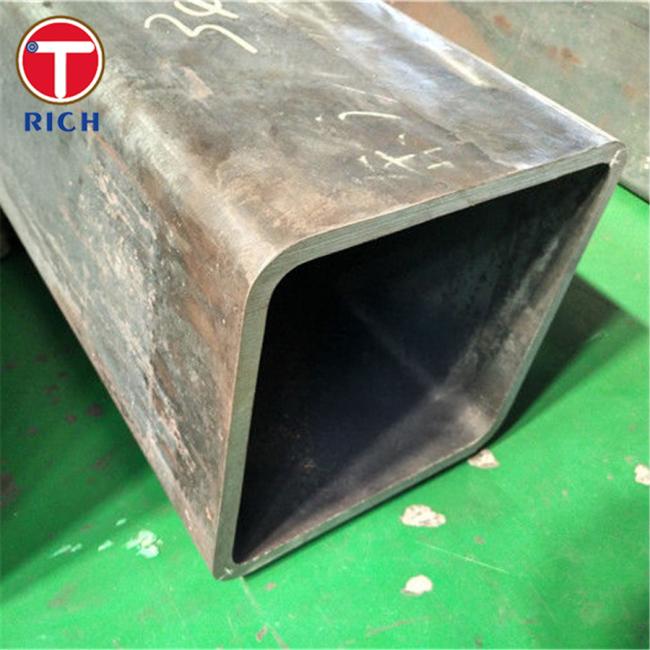

A500 carbon steel carbon steel structural square tube is made of square hollow section steel tube by cold forming process. This material has high strength and excellent mechanical properties. It is very durable and mostly used in the structural field. The carbon used in A500 tubes strikes a balance between strength and ductility, which makes them perform well in building load-bearing.
Specification
- Its implementation standard adopts ASTM A500 implementation standard. Its materials include GR A B C D
4 materials
TORICH can manufacture steel pipes according to drawings. You need to indicate the outer diameter, wall thickness, length, etc. on the drawings
We can provide black zinc plating or colored zinc plating, or other services
Chemical Composition
| Element | Grade A (%) | Grade B (%) | Grade C (%) | Grade D (%) |
|---|---|---|---|---|
| Carbon (C) | 0.26 max | 0.26 max | 0.26 max | 0.28 max |
| Manganese (Mn) | 1.20 max | 1.20 max | 1.35 max | 1.40 max |
| Phosphorus (P) | 0.035 max | 0.035 max | 0.04 max | 0.04 max |
| Sulfur (S) | 0.04 max | 0.04 max | 0.05 max | 0.05 max |
| Copper (Cu) | - | - | 0.20 min | 0.20 min |
| Nickel (Ni) | - | - | 0.25 min | 0.25 min |
| Chromium (Cr) | - | - | 0.20 min | 0.20 min |
| Molybdenum (Mo) | - | - | 0.08 min | 0.08 min |
Mechanical Properties
| Property | Grade A | Grade B | Grade C | Grade D |
|---|---|---|---|---|
| Minimum Yield Strength (Fy) | 42,000 psi (290 MPa) | 46,000 psi (315 MPa) | 50,000 psi (345 MPa) | 58,000 psi (400 MPa) |
| Minimum Tensile Strength (Fu) | 58,000 psi (400 MPa) | 62,000 psi (425 MPa) | 65,000 psi (450 MPa) | 75,000 psi (520 MPa) |
| Elongation (%) | 23 (min) | 23 (min) | 23 (min) | 18 (min) |
Key Features
- Excessive Electricity: offers fantastic load-bearing ability with higher yield and tensile electricity compared to different metal tubing.
Versatility: available in a couple of grades and sizes, appropriate for a wide range of structural programs.
Corrosion Resistance: can be galvanized or coated to enhance resistance in opposition to corrosion.
Weldability: Designed for easy welding and fabrication.
Dimensional Accuracy: manufactured with tight tolerances making sure uniform form and size.
Application
-
Bridge pavement structure
Construction site scaffolding
Store shelves
Municipal green belts and railings
Building load-bearing
Equivalent Grades
| Standard | Equivalent Grade/Type |
|---|---|
| ASTM A500 | EN 10210 S235JRH, EN 10219 S235JR |
| JIS G3466 | STKR400 |
| GB/T 3094 | Q235B |
| AS/NZS 1163 | Grade C or D |
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
