15CDV6 Alloy Cold Drawn Seamless Aviation Tube 30-426mm OD

Price Negotiable

Price: 60000 Ton/Tons per Year

MOQ: 1Ton

Delivery Time: 20-30days upon products

Brand: TORICH

Product Description

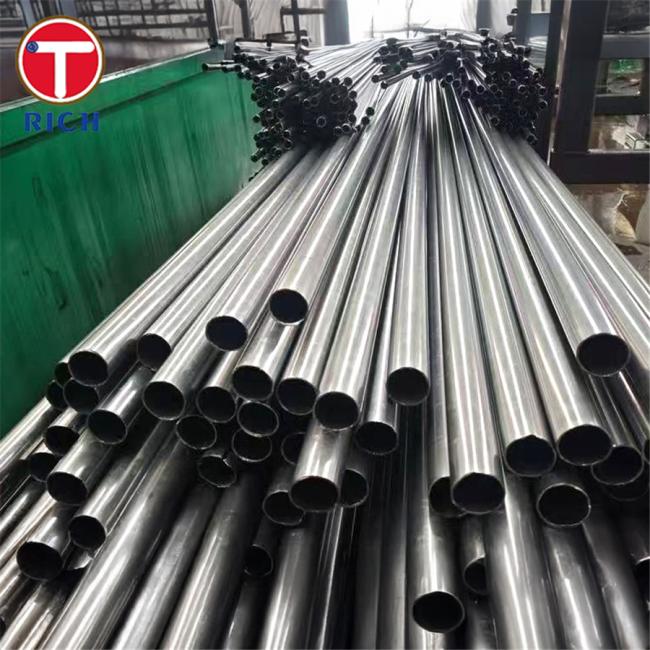

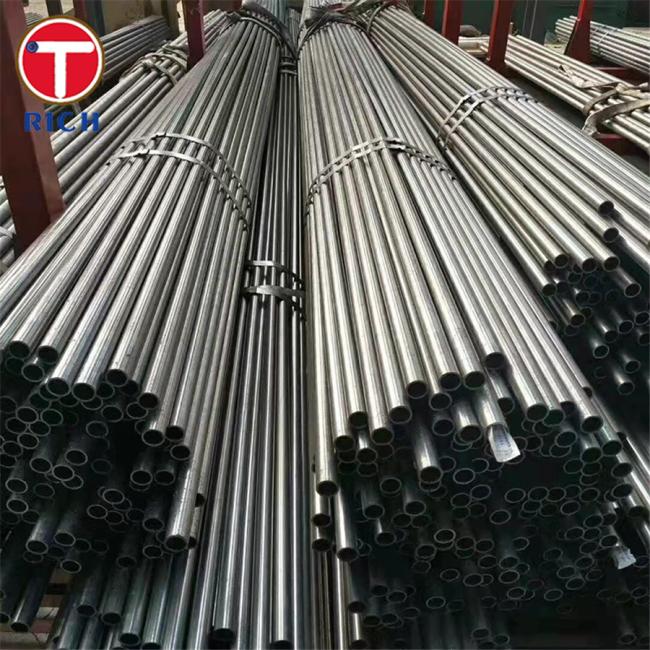

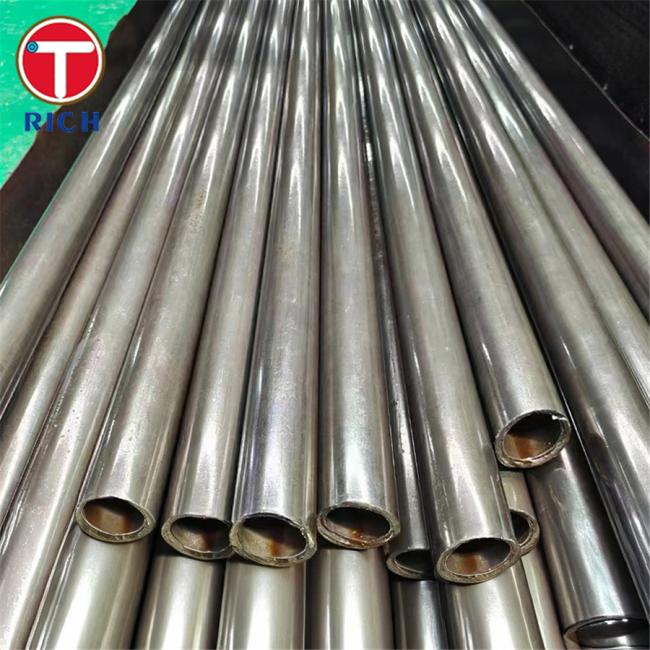

1.7734 Alloy 15CDV6 Small Diameter Cold Drawn Seamless Aviation Tube—Product Overview

Material

Alloy 15CDV6 (also designated WS 1.7734, AIR 9160C, 15CrMoV6) is a low‑carbon, chromium‑molybdenum‑vanadium heat‑treatable alloy steel. It combines high yield and tensile strength with excellent toughness and exceptional weldability, even without post-weld heat treatment

Specification

Designation: 15CDV6, WS 1.7734, AIR 9160C
Product Form: Cold-drawn, seamless, small-diameter precision tube
Applicable Standards: TE014 (seamless tube), AECMA FE‑PL1505, AIR 9160C, DIN series (65389/65390), ASNA 3108, LN 9369, etc.

Chemical Composition

Below is a comparative table featuring 15CDV6 and four similar grades (12CrMoV6‑9 / 1.7734, 14CrMoV6‑9 / 1.7735, 15CrMoV5‑9 / 1.8521, and 15CrMoV5‑10 / 1.7745) with their typical alloying ranges:

Grade (Designation)	C (wt %)	Mn	Si (max)	P (max)	S (max)	Cr	Mo	V
15CDV6 (AIR 9160)	0.12–0.18	0.8–1.1	≤ 0.20	≤ 0.020	≤ 0.015	1.25–1.50	0.8–1.0	0.2–0.3
12CrMoV6‑9 (1.7734)	0.12–0.18	0.8–1.1	≤ 0.20	≤ 0.020	≤ 0.015	1.25–1.50	0.8–1.0	0.2–0.3
14CrMoV6‑9 (1.7735)	0.11–0.17	0.8–1.0	≤ 0.25	≤ 0.020	≤ 0.015	1.25–1.50	0.8–1.0	0.2–0.3
15CrMoV5‑9 (1.8521)	0.13–0.18	0.8–1.1	≤ 0.40	≤ 0.025	≤ 0.030	1.20–1.50	0.8–1.1	0.2–0.3
15CrMoV5‑10 (1.7745)	0.10–0.16	0.4–0.9	0.15–0.35	≤ 0.025	≤ 0.015	1.10–1.40	0.9–1.1	0.20–0.35

Mechanical Properties

Comparative mechanical properties across five related grades in different conditions:

Grade / Condition	Tensile Strength (Rm, MPa)	Yield Strength (Rp0.2, MPa)	Elongation (%)	Hardness (HB)
15CDV6 (1.7734.2 annealed)	—	—	—	~197 HB
15CDV6 (1.7734.4)	≥ 700	≥ 550	≥ 13%	~207 HB
15CDV6 (1.7734.5)	980–1180	≥ 790	≥ 11%	293–352 HB
15CDV6 (1.7734.6)	1080–1250	≥ 930	≥ 10%	321–363 HB
1.7734 (annealed)	≥ 898	≥ 228	~14%	~443 HB

Key Characteristics

High strength combined with toughness: Achieves tensile strengths in excess of 1,200 MPa (1.7734.6 condition) while maintaining ductility and structural integrity
Excellent weldability: Welding is feasible with minimal or no post‑weld heat treatment, preserving mechanical properties
Heat‑treatable: Response to quench and temper cycles allows tailored performance—e.g., austenizing ~980 °C followed by oil quench and tempering ~650 °C yields Rm 1175 MPa, Rp0.2 980 MPa, hardness ~39 HRC

Applicable Standards/Specifications

WS 1.7734, 15CrMoV6
AECMA: FE‑PL63S, FE‑PL1505
AIR 9160C
DIN: 65389 / 65390 (sheets & plates), 65035 / 7527 (forgings)
ASNA 3108
TE014 (seamless tube)
LN / MN tooling equivalents

Applications

Used extensively in aerospace and motorsport engineering, particularly where strength-to-weight and reliability are critical:

General application area:

Structural and high-load components in aerospace and motorsports

Typical uses include:

Roll cages and safety cells (DMB-certified standard in professional motorsport)
Rocket motor casings, pressure vessels, and suspension systems (wishbones, uprights, subframes, push rods, track components)
Aircraft structural elements requiring cold‑drawn, seamless tube with high mechanical performance
Components in high-temperature or high-pressure environments within aerospace, automotive, defense, and nuclear industries
