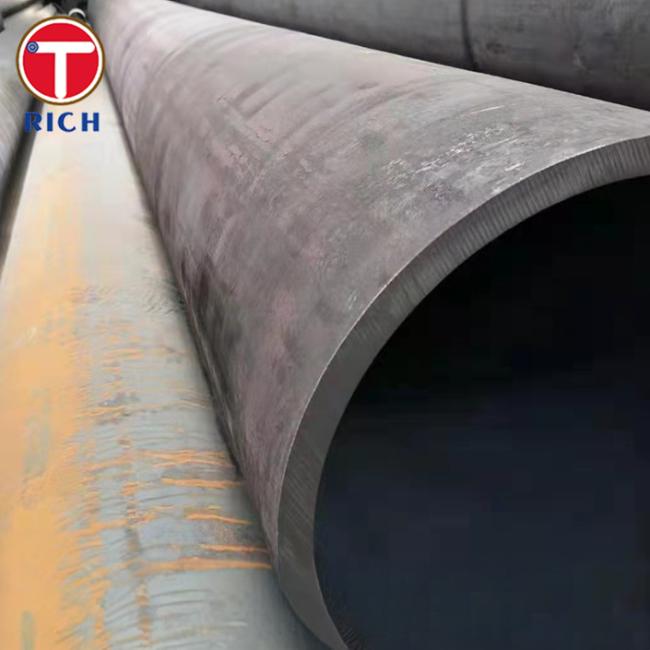

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery
SAE J525 Thick Wall Mild Steel Tube – Alloy Hydraulic Tube for Precision Instruments
Material
SAE J525 tubing is manufactured from high-quality mild carbon steel, processed by electric resistance welding and then fully normalized to achieve uniform grain structure and excellent ductility. It is specifically designed as a hydraulic tube with thick walls to handle pressure applications while ensuring precision and safety.
Specifications
-
Standard: SAE J525
-
Manufacturing Process: Electric Resistance Welded (ERW), Normalized
-
Wall Thickness: Thick wall, per SAE J525 requirements
-
Shape: Round tube
-
Finish: Smooth, suitable for bending and flaring
Chemical Composition (Typical, wt%)
| Grade | C (%) | Mn (%) | P (%) | S (%) | Fe (%) |
|---|---|---|---|---|---|
| SAE J525 | ≤0.18 | 0.30–0.60 | ≤0.035 | ≤0.035 | Balance |
| ASTM A179 | ≤0.06 | 0.27–0.63 | ≤0.035 | ≤0.035 | Balance |
| ASTM A513 Type 5 (1020) | 0.18–0.23 | 0.30–0.60 | ≤0.040 | ≤0.050 | Balance |
| EN 10305-4 E235 | ≤0.17 | ≤1.20 | ≤0.025 | ≤0.025 | Balance |
| JIS STKM11A | ≤0.15 | 0.30–0.60 | ≤0.030 | ≤0.030 | Balance |
Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| SAE J525 | 290–430 | ≥180 | ≥35 | ≤72 |
| ASTM A179 | ≥325 | ≥180 | ≥35 | ≤72 |
| ASTM A513 Type 5 (1020) | 350–450 | ≥210 | ≥25 | ≤85 |
| EN 10305-4 E235 | 340–480 | ≥235 | ≥25 | ≤80 |
| JIS STKM11A | ≥290 | ≥180 | ≥30 | ≤72 |
Key Features
-
Excellent formability, bendability, and flare capability
-
Uniform grain structure due to full normalization
-
High dimensional accuracy and smooth internal surface
-
Reliable for hydraulic systems under pressure
-
Enhanced safety in precision instruments applications
Applicable Standards
-
SAE J525 (North America)
-
ASTM A179 / ASTM A513 (USA equivalent options)
-
EN 10305-4 (European equivalent)
-
JIS G3445 STKM series (Japanese equivalent)
-
GB/T 3639 (Chinese equivalent for precision tubes)
Applications
SAE J525 tubes are primarily used in hydraulic and pneumatic systems where safety and precision are critical.
-
Automotive Industry: Brake lines, fuel lines, hydraulic power steering systems
-
Industrial Machinery: Hydraulic cylinders, fluid power systems, lubrication lines
-
Precision Instruments: Measuring and control systems requiring high reliability
-
Construction Equipment: Hydraulic lines for excavators, loaders, and cranes
-
Aerospace & Marine: Specialized hydraulic control systems
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
