ISO 9001 Approved EN10305-1 Seamless Round Hydraulic Cylinder Tubing

ISO 9001 Approved EN10305-1 Round Hydraulic Cylinder Tubing is main production for Torich for both domestic and overseas market

Round Hydraulic Cylinder Tubing are produced according to Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Round Hydraulic Cylinder Tubing used For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts

Round Hydraulic Cylinder Tubing Size range:

O.D.:6-380mm     W.T.:1-35mm      L:max12000mm

Round Hydraulic Cylinder Tubing Steel Grade and Chemical Compositions:

aRm: tensile strength;  ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calclulation purposes the following relation is recommended:ReH≥0.5Rm
e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimum values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa

Note: Special steel grade is also available, according to customer request.

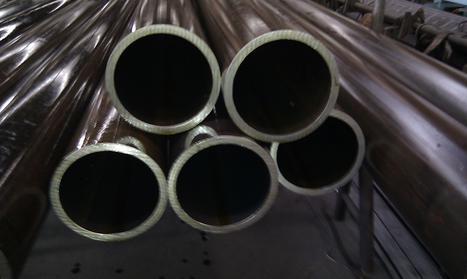

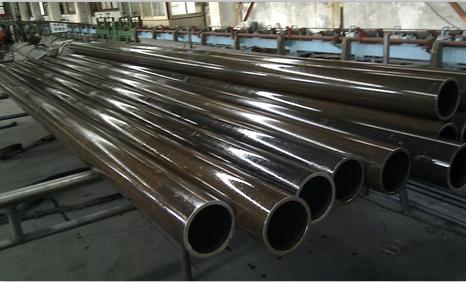

Seamless Round Hydraulic Cylinder Tubing in Cold Drawn Production:

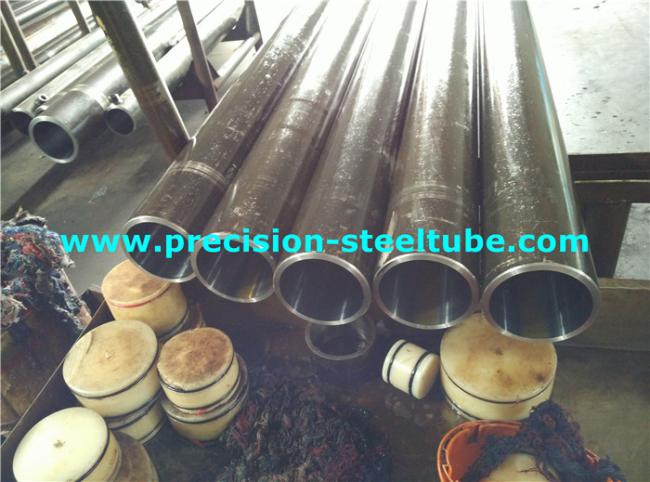

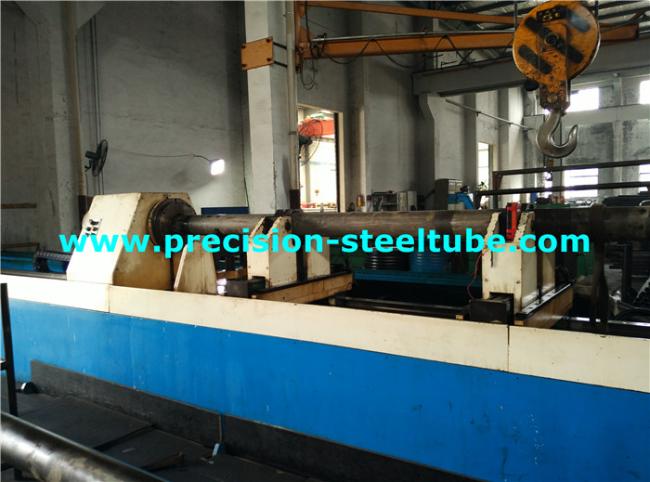

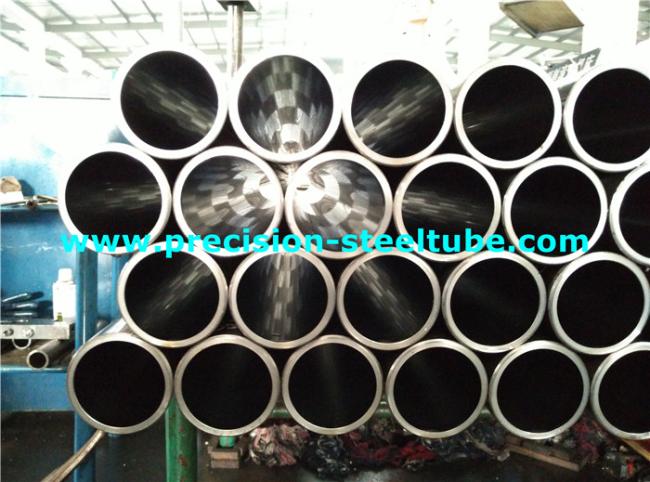

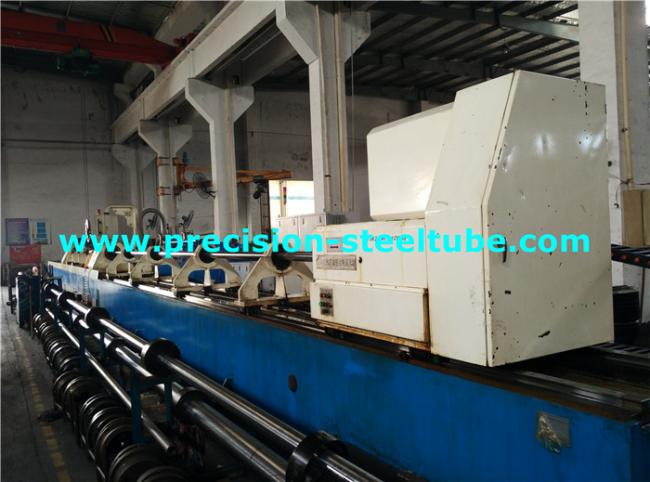

Seamless Round Hydraulic Cylinder Tubing in Honing and Skiving Roller Burnish production:

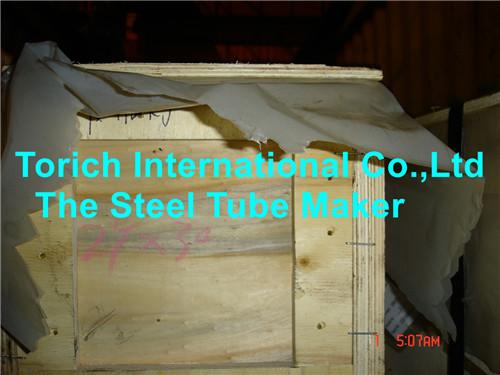

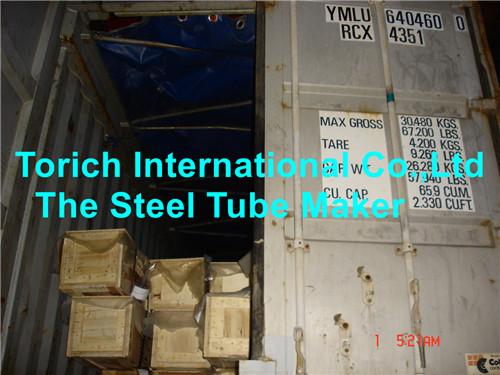

Container Loading and Shipment for Seamless Round Hydraulic Cylinder Tubing
