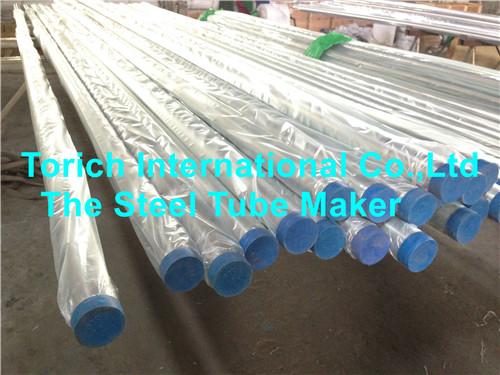

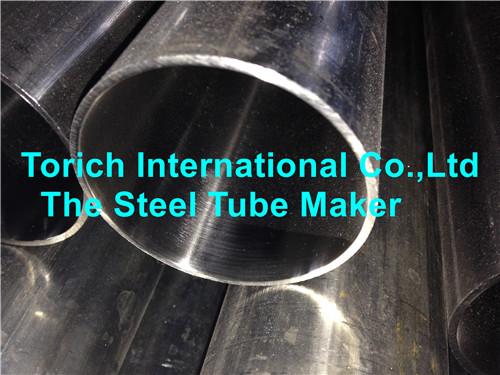

DIN 11850 Stainless Steel Seamless Pipe for Food Industry Dimensions

Price Negotiable

Price: negotiable

MOQ: 5MT

Delivery Time: 30~40days

Brand: Torich

Product Description

DIN 11850 Stainless Steel Pipes for the food industry dimensions,materials

Materials:

X5CrNi1810 - material number 1.4301

X6CrNiMoTi17122 - material number 1.4571

X6CrNiMo17122 -material number 1.4401

X2CrNiMo18143 -material number 1.4435
X6CrNiTi1810 -material number 1.4541

Minimum Order Quantity: 5MT
Payment Terms: L/C or T/T
Supply Ability: 700MT/Month
Delivery Time: FOB,CFR,CIF are workable
30~60days according detail PO quantity

TABLE 1 The dimension and permissible deviations of the pipes

Nominal Diameter DN	Series			Tolerance			Weight Kg/m(7.97kg/dm3)	remark
Nominal Diameter DN	1	2	3	OD.dev	Wall thickness,dev		Weight Kg/m(7.97kg/dm3)	remark
10	12			±0.12	1.0	±10%	0.27	Pipes with greater wall thicknesses than according to series 1 shall be selected from existing pipe standards for this nominal diameter range The permissible deviations shall be determined from the circumference.the permissible ovality shall be ±1% on the pipe outside diameter.
		13		±0.3	1.5	±10%	0.43
			14	±0.3	2.0	±10%	0.60
15	18			±0.12	1.0	±10%	0.42
		19		±0.3	1.5	±10%	0.66
			20	±0.3	2.0	±10%	0.90
20	22			±0.12	1.0	±10%	0.51
		23		±0.3	1.5	±10%	0.81
			24	±0.3	2.0	±10%	1.10
25	28			±0.15	1.0	±10%	0.66
		29		±1%	1.5	±10%	1.03
			30	±0.3	2.0	±10%	1.40
32	34			±0.15	1.0	±10%	0.82
		35		±1%	1.5	±10%	1.26
			36	±1%	2.0	±10%	1.70
40	40			±0.2	1.0	±10%	0.97
		41		±1%	1.5	±10%	1.50
			42	±1%	2.0	±10%	2.00
50	52			±0.2	1.0	C10%	1.26
		53		±1%	1.5	±10%	1.90
			54	±1%	2.0	±10%	2.60
65	70			±0.3	2.0	±10%	3.43
80	85			±0.3	2.0	±10%	4.16
100	104			±0.3	2.0	±10%	5.03
125	129			±0.4	2.0	±10%	6.36
150	154			±0.4	2.0	±10%	7.49
