Annealed And Pickled Thin Wall Stainless Steel Tubing ANSI B36.19 / 36.10

Size: ANSI /ASME size is under,other standard of size is for ready choice

O.D.: 0.23''to 48''(5.8-1219mm)

W.T.: 0.04''to 2''(1.0-50.8mm)

Length: Max.18 Meter

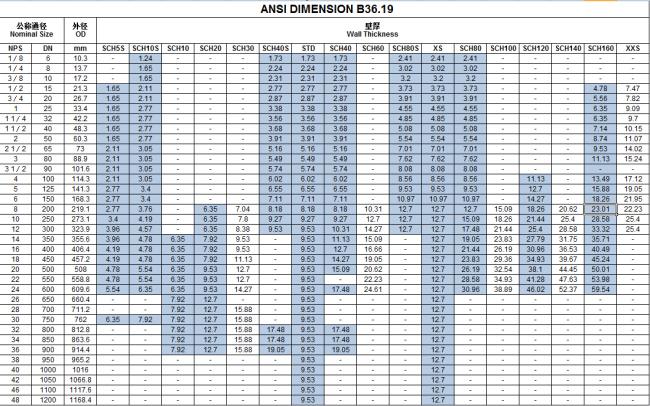

NPS 1/8''-48'' Schedule:

5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10

Surface finish: Annealed,Polished

Process Method: Cold Drawn/Cold Rolled

Delivery Condition: Annealed & Pickled

Chemical assurance

1. Each lot of raw materials will be tested by spectrometer before put in storage.

2. 100%PMI the mother pipe to ensure we put right material.

3. 100%PMI the finished pipe again to ensure we produced right grade

Heat Treatment Assurance

A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.

Packing:Bundles for each piece then packed in seaworthy wooden cases.

Application:Fluid and gas transport,Structure and machining.

Polishing stainless steel tubing
