Nickel - Chromium - Iron based Inconel Tube Inconel600 TS 640MPA High Plasticity

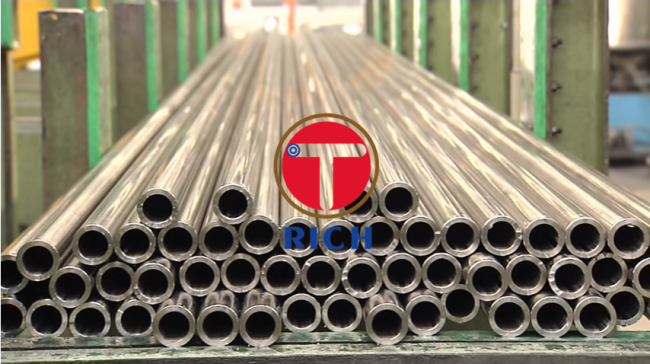

Inconel Steel Tube with alloy steel grade Inconel 600
equipment.
Inconel Tube Characteristic:nickel-chromium-iron-based solid solution strengthened alloy.
Good high temperature corrosion
Oxidation resistance
Excellent hot and cold processing
Welding performace
In the following 700℃ hace a satisfactory heat resistance and high plasticity.
Inconel Tube Use in chemical industry,nuclear industry,Is mainly used in corrosive environment
Chemical composition:
C:≤0.15
Cr:14.0-17.0
Ni+Co:≥72
Al:≤0.35
Ti:≤0.50
Fe:6.00-10.00
Nb+Ta:≤1.00
Mn:1.00 max
Si:0.50max
P:0.04max
S:0.015max
Cu:0.50max
Physical properties:
Thermal conductivity:
| θ/℃ | 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| λ/(W/(m·℃)) | 12.85 | 13.94 | 15.15 | 16.62 | 18.71 | 20.72 | 22.4 | 24.49 | 27 | 29.51 | 31.6 |
Electrical properties of resistivity:
| θ/℃ | 20～200 | 20～300 | 20～400 | 20～500 | 20～600 | 20～700 | 20～800 | 20～1 |
| α/10-6℃-1 | 12.35 | 12.75 | 13.1 | 13.55 | 14.5 | 15.15 | 15.7 | 16.2 |
Inconel 600 is face-centred cubic crystal structure.
Mechanical properties:
Condition:Annealing.
YS:255Mpa
TS:640MPA
En:45%
Relaed standard:
ASTM B167 Standard Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696), Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617), and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Seamless Pipe and Tube
ASTM B516Standard Specification for Welded Nickel-Chromium-Iron Alloy (UNS N06600, UNS N06603, UNS N06025, andUNS N06045 Tubes
AMS 5580 Nickel Seamless Tubing
