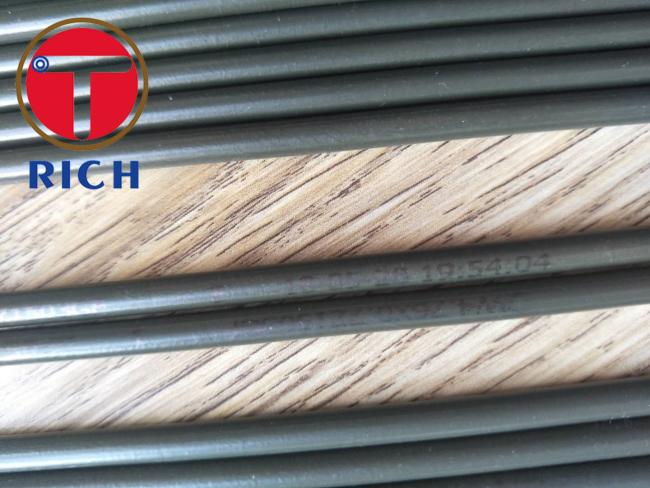

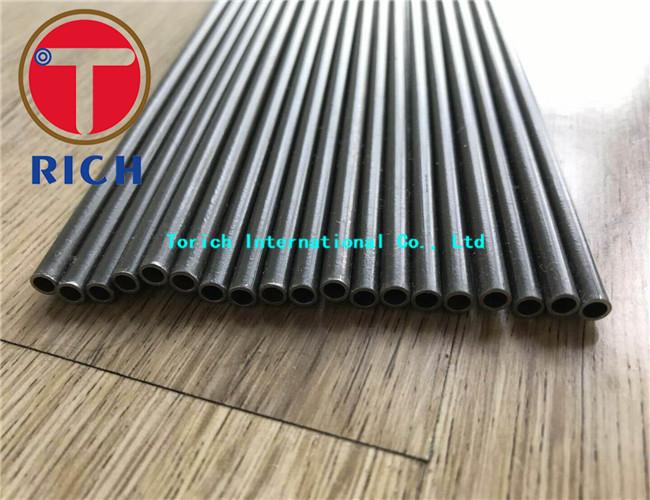

PVF-Coated SAE J527 Steel Brake Line Tubing Coil， Brazed Steel Tubing

PVF-Coated SAE J527 Steel Brake Line Tubing Coil, Brazed Steel Tubing

Vehicle Standard Drawn Over Mandrel Low Carbon Steel Tubing

Products Description:

Steel Grade/Steel Material:

UNS G10080 or UNS G10100 etc

Production method:

The tubing shall be made from a single or double strip of steel shaped into the form of a
double-wall tubing, the walls of which are secured and sealed by copper brazing in a controlled atmosphere.
The braze shall be uniform with no evidence of a bead on either the inside or outside of the tubing. Typically
this type of tubing is available in both coiled and straight condition. Straightness requirements should be
agreed upon between supplier and purchaser.

Delivery Condition:

BK ,NBK

Size Range:

OD: 2-20mm

WT:0.5-2mm

Length: max 12000mm or coiled

Characteristic:

Good concentricity

Good OD and ID tolerance

High Precision

Stable quality

Smooth Roughness

TORICH QUALITY ASSURANCE

J527 Vehicle Standard Drawn Over Mandrel Low Carbon Steel Tubing

Production Processs:

ERW tube

J527 Vehicle Standard Drawn Over Mandrel Low Carbon Steel Tubing
