GB/T3089 44.5x0.9mm Thin Wall Seamless Stainless Steel Tube
GB/T3089 44.5x0.9mm Thinnest-Wall Seamless Stainless Steel tubes
Offered by us in ample of specifications and grades, our Thinnest-Wall Seamless Stainless Steel tubes stands out of all others. We are an eminent Manufacturer, Exporter and Supplier of Thinnest-Wall Seamless Stainless Steel tubes from China. The Thinnest-Wall Seamless Stainless Steel tubes is precisely designed by our team of veterans keeping in mind all the rules and regulations of the industry.
Steel Grade/Steel Material/Steel Number:
| Grade | Chemical Analysis % | ||||||||
| C ≤ | Si ≤ | Mn ≤ | S ≤ | P ≤ | Cr | Ni | Ti | Mo | |
| 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 11.00 | - | - |
| 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 12.00 | - | - |
| 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | - | 2.00- 3.00 |
| 06Cr17Ni12Mo2Ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | ≥5C | 2.00- 3.00 |
| 06Cr18Ni11ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 17.00- 19.00 | 9.00- 12.00 | 5C-0.7 | - |
| Grade | Mechanical Properties % | |
| Rm/(N/mm²) ≥ | A% ≥ | |
| 06Cr19Ni10 | 520 | 22 |
| 022Cr19Ni10 | 440 | 40 |
| 022Cr17Ni12Mo2 | 480 | 40 |
| 06Cr17Ni12Mo2Ti | 540 | 35 |
| 06Cr18Ni11ti | 520 | 40 |
Surface Roughness:
Ra≤1.6μm
Size:
OD:10.3-102.6mm WT:0.15-0.6mm Length:0.8-6m
Regular Size:
15.4X0.2 18.4X0.2 20.4X0.2
24.4X0.2 35X0.5 40.4X0.2
41X0.5 44.5X0.9 60X0.5
74X0.5 150.8X0.4 250.8X0.4
Delivery condition:
Heat treatment
Inspection in the work ship:

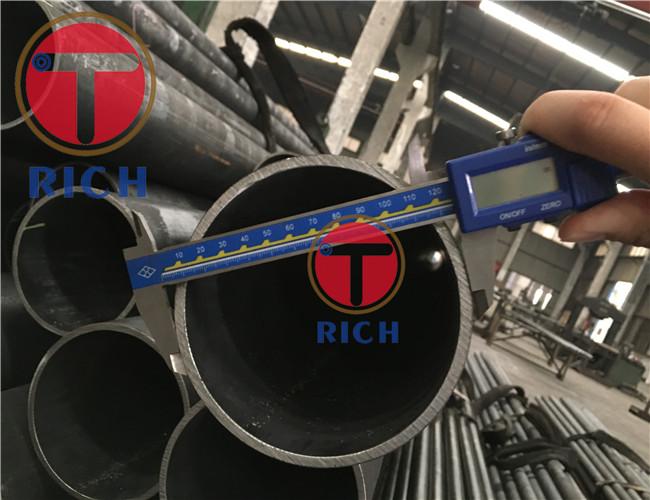

Size Measurement
Mechanical test
Intergranular corrosion test
Surface quatily test
Application:

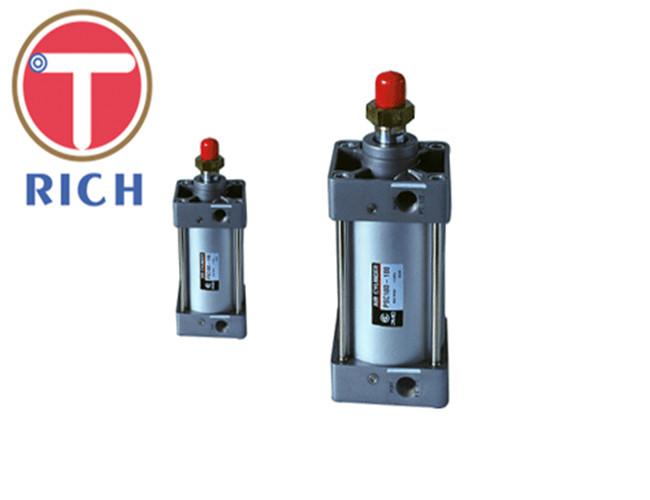

Scientific research, aerospace industry , pneumatic components, instruments
