Welded Special Stainless Clad Pipes GB/T 18704 06Cr19Ni10 For Structural Purposes
Products Description:
For Structural Purposes GB/T 18704 Welded Stainless Clad Pipes
Steel Grade/Steel Material:
| Steel Grade | Chemical composition % | |||||||
| C | Si | Mn | P | S | Ni | Cr | N | |
| 12Cr17Mn6Ni5N | ≤0.15 | ≤1.00 | 5.50-7.50 | ≤0.050 | ≤0.030 | 3.50-5.50 | 16.00-18.00 | 0.05-0.25 |
| 12Cr18Mn0Ni5N | ≤0.15 | ≤1.00 | 7.50-10.0 | ≤0.050 | ≤0.030 | 4.00-6.00 | 17.00-19.00 | 0.05-0.25 |
| 12Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-10.00 | 17.00-19.00 | ≤0.10 |
| 06Cr19Ni10 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-11.00 | 18.00-20.00 | - |
Mechanical Property:
| Steel Grade | Yield Strength MPa | Tensile Strength MPa | Elongation % |
| ≥ | |||
| 12Cr17Mn6Ni5N | 245 | 520 | 25 |
| 12Cr18Mn0Ni5N | 245 | 520 | |
| 12Cr18Ni9 | 210 | 520 | 30 |
| 06Cr19Ni10 | 210 | 520 | |
Delivery Condition:
SNB, SB, SP, SS
Size Range:
OD: 12.7-325mm
WT: 0.8-12mm
Length: 1000-8000mm
Our regular size: 12.7x0.8mm, 48.3x1.6mm, 127x3.5mm etc
Clad Pipes Characteristic:
Good resilient
Easy to machine-shaping
Lost-cost
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Inside carbon steel plate, wraped tightly outside stainless steel plate with welded continuous molding.

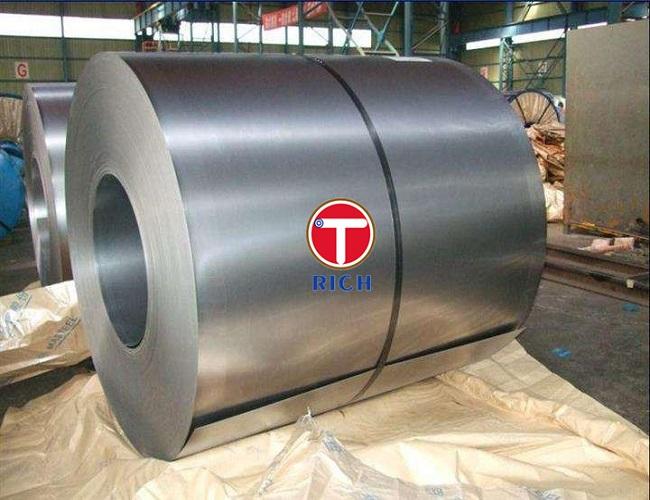

Raw Material Steel:

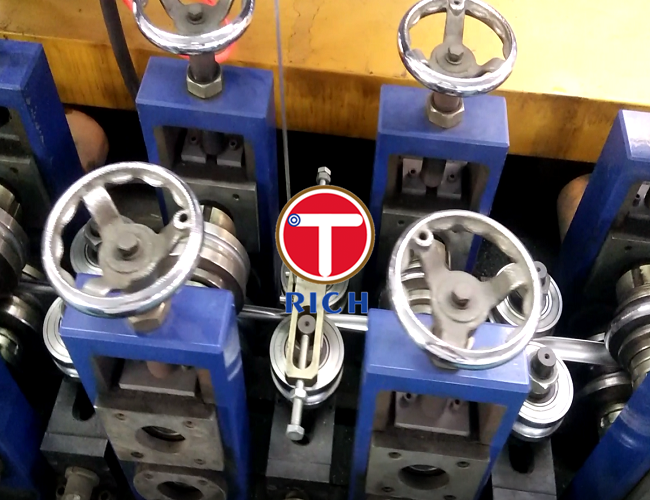

Production Line:

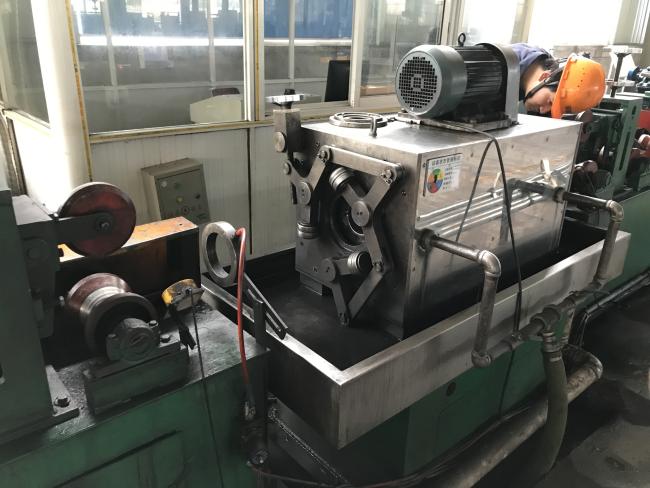

Eddy Current Test and Ultrasonic Test:

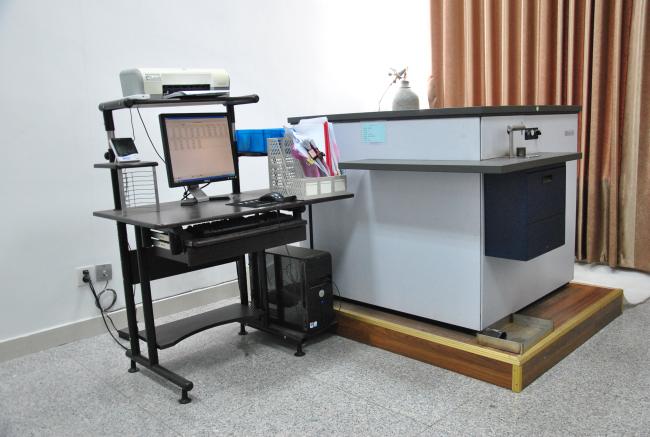

Quality Inspection in lab:
Packing:
For Structural Purposes GB/T 18704 Welded Stainless Clad Pipes
