16MnDG 10MnDG 09DG GB/T 18984 Carbon Steel Heat Exchanger Tubes Low Temperature Service Piping
GB/T 18984 Seamless Steel Tubes for Low-Temperature Service Piping
Spec:
Material:16MnDG , 10MnDG , 09DG
Size Range:OD:4-1200mm
WT:0.3-200mm
General Length:4-12m
Tolerance:
According to the following tables or customers’ request.
Permissible deviation tolerance of OD and WT
| Classfication | Steel size | Permissible tolerance | |
| W-H | OD | ＜351 | ±1.0%D |
| ≥351 | ±1.25%D | ||
| WT | ≤25 | ±12.5%S | |
| W-C | OD | ≤30 | ±0.20 |
| ＞30~50 | ±0.30 | ||
| ＞50 | ±0.75%D | ||
| WT | ≤3 | ＋12.5%S -10%S | |
| ＞3 | ±10%S | ||
Steel grade and chemical composition
| Steel grade | Chemical composition/% | |||||||
| C | Si | Mn | P | S | Ni | Mo | V | |
| 16MnDG | 0.12~0.20 | 0.20~0.55 | 1.20~1.60 | ≤0.025 | ≤0.025 | — | — | — |
| 10MnDG | ≤0.13 | 0.17~0.37 | ≤1.35 | ≤0.025 | ≤0.025 | — | — | ≤0.07 |
| 09DG | ≤0.12 | 0.17~0.37 | ≤0.95 | ≤0.025 | ≤0.025 | — | — | ≤0.07 |
| 09Mn2VDG | ≤0.12 | 0.17~0.37 | ≤1.85 | ≤0.025 | ≤0.025 | — | — | ≤0.12 |
| 06Ni3MoDG | ≤0.08 | 0.17~0.37 | ≤0.85 | ≤0.025 | ≤0.025 | — | — | ≤0.05 |
Longitudinal mechanical properties of steel tubes
| Steel grade | Tensile strength
MPa | Lower yield strength Rp0.2/MPa | Elongation A/％ | |||
| S≤16mm | S＞16mm | Sample 1 | Sample 2 | Sample 3 | ||
| 16MnDG | 490~665 | ≥325 | ≥315 | ≥30 | ||
| 10MnDG | ≥400 | ≥240 | ≥35 | |||
| 09DG | ≥385 | ≥210 | ≥30 | |||
| 09Mn2VDG | ≥450 | ≥300 | ≥30 | |||
| 06Ni3MoDG | ≥455 | ≥250 | ≥30 | |||
/
Characteristic:
TORICH QUALITY ASSURANCE
Good surface quality
Good OD and ID tolerance controlled to Technical Standard
Stable quality
100% Eddy Current Test
Processing:W-H W-C
Technical Delivery Conditions:Nomalizing
Widely used in the field of:Low temperature heat exchanger

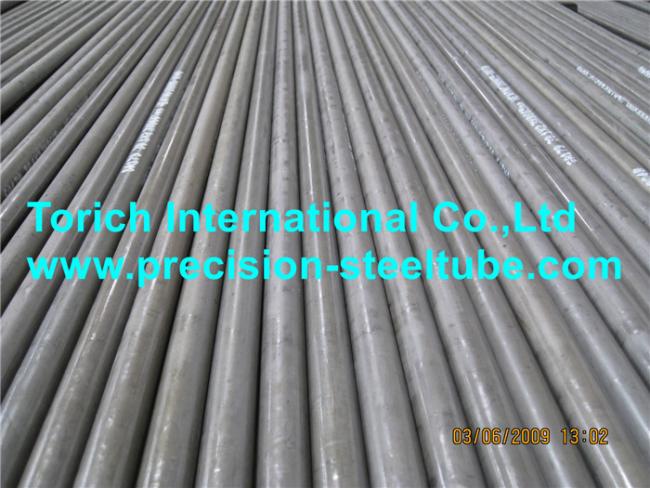

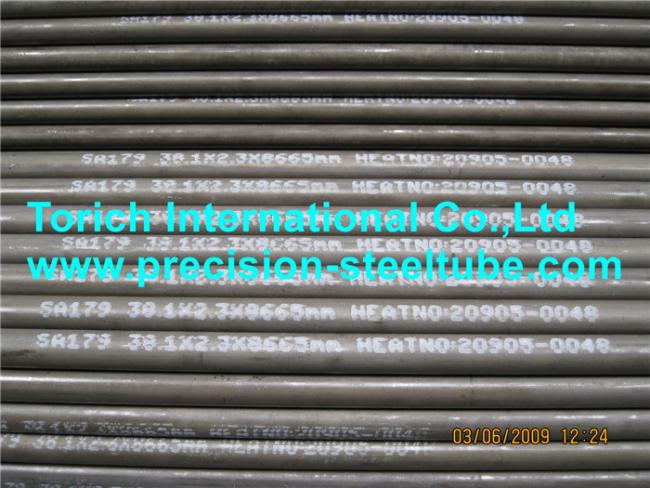

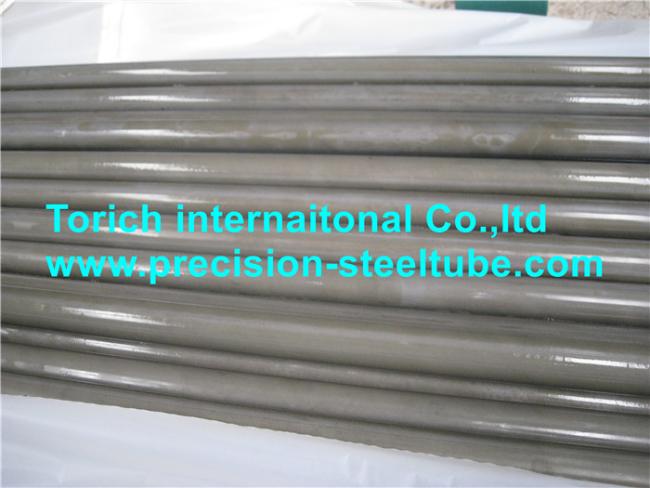

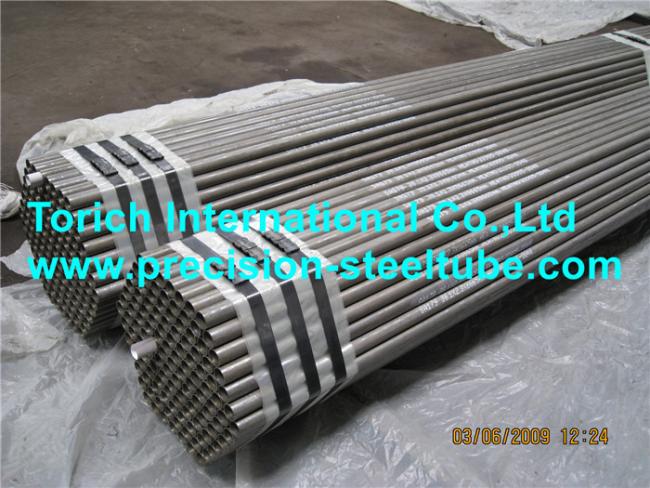

Product Images:
