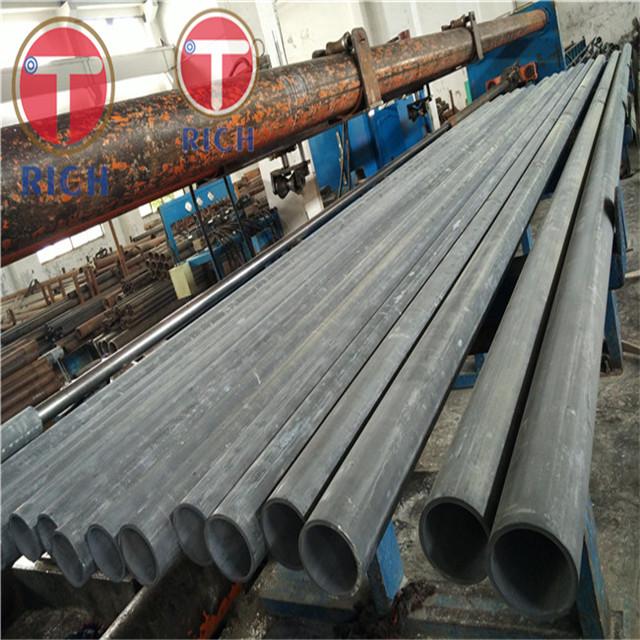

GB/T18984 16MnDG 10MnDG 06Ni3MoDG Cold Drawn Steel Tube Seamless Steel Pipes
Product Name: TORICH allibaba com GB/T18984 16MnDG 10MnDG 06Ni3MoDG Steel tube manufacturer For Low Temperature Survices Seamless Steel Pipes
Standard: GB/T18984
OD: 3-420mm
WT: 0.5-50mm
Length: 4-12m or according to customers' actual application and production.
Application: For Low Temperature Survices-45℃~-100℃
Steel Grade: 16MnDG 10MnDG 09DG 06Ni3MoDG
Technology: Hot rolled,cold drawn(roll)Normalized
Characteristic:
Good concentricity
Good surface quality
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Permissible deviation tolerance of OD and WT
| Classfication | Steel size | Permissible tolerance | |
| W-H | OD | ＜351 | ±1.0%D |
| ≥351 | ±1.25%D | ||
| WT | ≤25 | ±12.5%S | |
| W-C | OD | ≤30 | ±0.20 |
| ＞30~50 | ±0.30 | ||
| ＞50 | ±0.75%D | ||
| WT | ≤3 | ＋12.5%S | |
| ＞3 | ±10%S | ||
Steel grade and chemical composition
| Steel grade | Chemical composition/% | |||||||
| C | Si | Mn | P | S | Ni | Mo | V | |
| 16MnDG | 0.12~0.20 | 0.20~0.55 | 1.20~1.60 | ≤0.025 | ≤0.025 | — | — | — |
| 10MnDG | ≤0.13 | 0.17~0.37 | ≤1.35 | ≤0.025 | ≤0.025 | — | — | ≤0.07 |
| 09DG | ≤0.12 | 0.17~0.37 | ≤0.95 | ≤0.025 | ≤0.025 | — | — | ≤0.07 |
| 09Mn2VDG | ≤0.12 | 0.17~0.37 | ≤1.85 | ≤0.025 | ≤0.025 | — | — | ≤0.12 |
| 06Ni3MoDG | ≤0.08 | 0.17~0.37 | ≤0.85 | ≤0.025 | ≤0.025 | — | — | ≤0.05 |
Longitudinal mechanical properties of steel tubes
| Steel grade | Tensile strength | Lower yield strength Rp0.2/MPa | Elongation A/％ | |||
| S≤16mm | S＞16mm | Sample 1 | Sample 2 | Sample 3 | ||
| 16MnDG | 490~665 | ≥325 | ≥315 | ≥30 | ||
| 10MnDG | ≥400 | ≥240 | ≥35 | |||
| 09DG | ≥385 | ≥210 | ≥30 | |||
| 09Mn2VDG | ≥450 | ≥300 | ≥30 | |||
| 06Ni3MoDG | ≥455 | ≥250 | ≥30 | |||
/
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
