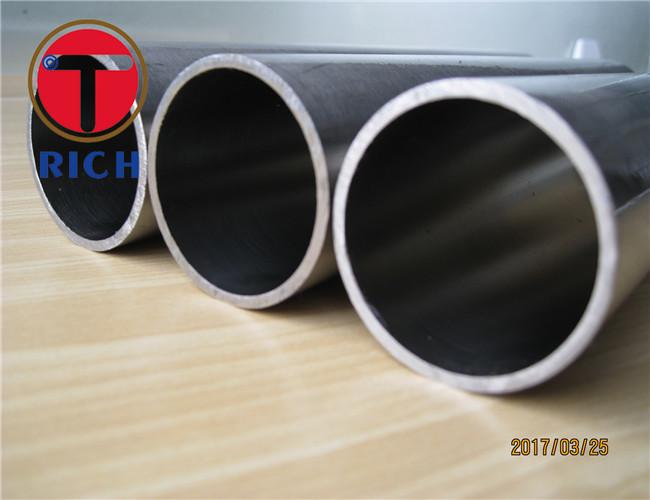

304 316 Seamless Stainless Steel Heat Exchanger Tubes
304 316 Seamless Stainless Steel Heat Exchanger Tubes
Size Range:
OD:6-159mm
WT:1-14mm
Length: 3000mm-12000mm
Characteristic:
Good OD and ID tolerance controlled to Technical Standard
Stable quality
Steel grade and chemical composition
| Number | Steel grade | Chemical Composition % | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Ti | ||
| 1 | 0Cr18Ni9 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00~ 1.00 | 17.00~ 19.00 | — | — |
| 2 | 1Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00~ 10.50 | 17.00~ 19.00 | — | — |
| 3 | 1Cr19Ni9 | 0.04~0.10 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00~ 12.00 | 18.00~ 20.00 | — | — |
| 4 | 00Cr19Ni10 | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00~ 12.00 | 18.00~ 20.00 | — | — |
| 5 | 0Cr18Ni10Ti | ≤0.08 | ≤1.00 | ≤3.00 | ≤0.035 | ≤0.030 | 9.00~ 12.00 | 17.00~ 19.00 | — | ≥5C |
| 6 | 1Cr18Ni11Ti | 0.04~0.10 | ≤0.75 | ≤2.00 | ≤0.030 | ≤0.030 | 9.00~ 13.00 | 18.00~ 20.00 | — | 4Xc~ 0.60 |
| 7 | 0Cr18Ni11Nb | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00~ 13.00 | 17.00~ 20.00 | — | — |
| 8 | 1Cr19Ni11Nb | 0.04~0.10 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00~ 13.00 | 17.00~ 20.00 | — | — |
| 9 | 0Cr17Ni12Mo2 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 11.00~ 14.00 | 18.00~ 20.00 | 2.00~ 3.00 | — |
| 10 | 1Cr17Ni12Mo2 | 0.04~0.10 | ≤0.75 | ≤2.00 | ≤0.030 | ≤0.030 | 11.0~ 14.00 | 16.00~ 20.00 | 2.00~ 3.00 | — |
