GB/T 30059 Alloy Steel Pipe Incoloy 800 Inconel 600 Seamless For Heat Exchanger
Products Description:
Seamless Corrosion-resisting Alloy Tubes GB/T 30059 Incoloy 800 Inconel 600 For Heat-exchanger
Steel Grade/Steel Material:
| Steel Grade | ASTM Steel Grade | C | Cr | Ni | Fe | Mo | Cu | Al | Ti | Nb | Co | Si | Mn | P | S |
| NS1101 | N08800 (Incoloy 800) | ≤0.010 | 19.0-23.0 | 30.0-35.0 | Remainder | - | ≤0.75 | 0.15-0.60 | 0.15-0.60 | - | - | ≤1.00 | ≤1.50 | ≤0.030 | ≤0.015 |
| NS1102 | N08810 (Incoloy 800H) | 0.05-0.10 | 19.0-23.0 | 30.0-35.0 | Remainder | - | ≤0.75 | 0.15-0.60 | 0.15-0.60 | - | - | ≤1.00 | ≤1.50 | ≤0.030 | ≤0.015 |
| NS1103 | - | ≤0.030 | 24.0-26.5 | 34.0-37.0 | Remainder | - | - | 0.15-0.45 | 0.15-0.60 | - | - | 0.30-0.70 | 0.50-1.50 | ≤0.030 | ≤0.030 |
| NS1401 | - | ≤0.030 | 25.0-27.0 | 34.0-37.0 | Remainder | 2.0-3.0 | 3.0-4.0 | - | 0.40-0.90 | - | - | ≤0.70 | ≤1.00 | ≤0.030 | ≤0.030 |
| NS1402 | N08825 (Incoloy 825) | ≤0.05 | 19.0-23.5 | 38.0-46.0 | ≥22.0 | 2.5-3.5 | 1.5-3.0 | ≤0.20 | 0.60-1.20 | - | - | ≤0.50 | ≤1.00 | ≤0.030 | ≤0.015 |
| NS3102 | N06600 (Inconel 600) | ≤0.15 | 14.0-17.0 | Remainder | 6.0-10.0 | - | ≤0.50 | - | - | - | - | ≤0.50 | ≤1.00 | ≤0.030 | ≤0.015 |
| NS3105 | N06690 (Inconel 690) | ≤0.05 | 27.0-31.0 | Remainder | 7.0-11.0 | - | ≤0.50 | - | - | - | - | ≤0.50 | ≤0.50 | ≤0.030 | ≤0.015 |
| NS3306 | N06625 (Inconel 625) | ≤0.10 | 20.0-23.0 | Remainder | ≤5.0 | 8.0-10.0 | - | ≤0.40 | ≤0.40 | 3.15-4.15 | ≤1.00 | ≤0.50 | ≤0.50 | ≤0.015 | ≤0.015 |
Mechanical Property:
| Steel Grade | ASTM Steel Grade | Mechanical Property | ||
| Tensile Strength Rm /MPa | Yield Strength RP0.2 /MPa | Elongation A/% | ||
| ≥ | ||||
| NS1101 | N08800 (Incoloy 800) | 517 | 207 | 30 |
| NS1102 | N08810 (Incoloy 800H) | 448 | 172 | 30 |
| NS1103 | - | 515 | 205 | 30 |
| NS1404 | - | 540 | 215 | 35 |
| NS1402 | N08825 (Incoloy 825) | 586 | 241 | 30 |
| NS3102 | N06600 (Inconel 600) | 552 | 241 | 30 |
| NS3105 | N06690 (Inconel 690) | 586 | 241 | 30 |
| NS3306 | N06625 (Inconel 625) | 690 | 276 | 30 |
Delivery Condition:
Annealed and Pickled, Bright Annealed, Cold Drawned or Cold Rolle
Size Range:
OD: 6-219mm
WT: 0.5-10mm
Length: 2000-12000mm
Our regular size: 26.7x2.87mm, 6.35x1.65mm, 25x2mm etc
Clad Pipes Characteristic:
High strength
Easy to machine-shaping
Corrosion-resisting
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Seamless Cold Drawn or Seamless Cold Rolled + Heat Treatment of Annealed and Pickled, Bright Annealed
Seamless Cold Drawn or Seamless Cold Rolled

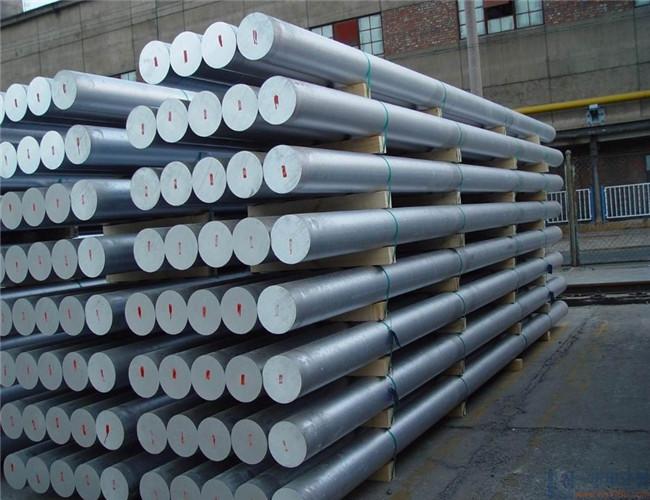

Raw Material Steel:

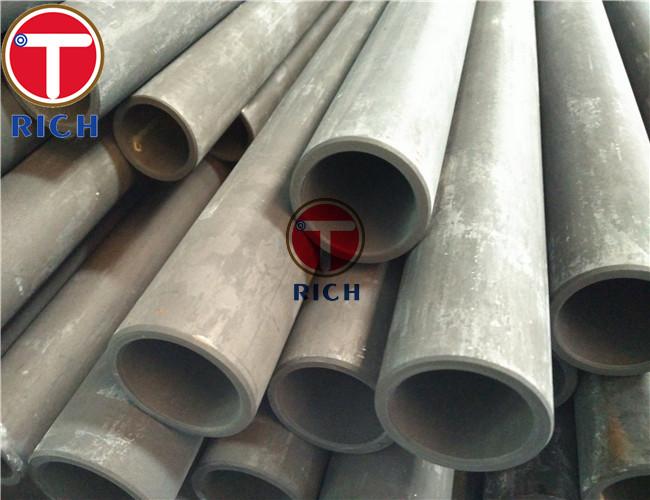

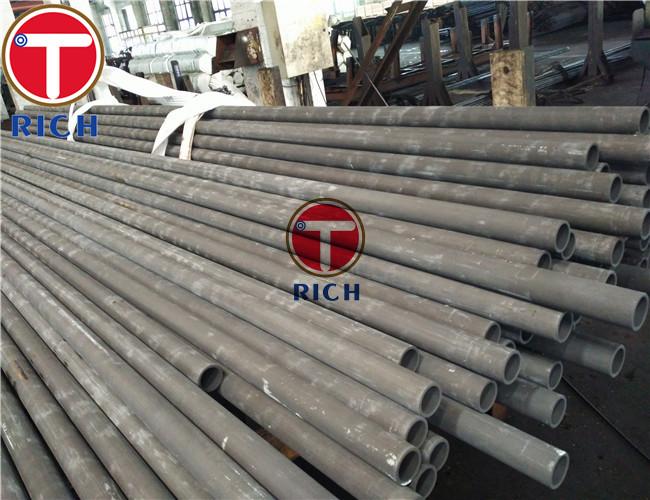

Production Tube:
Eddy Current Test and Ultrasonic Test:
Quality Inspection in lab:
Packing:
Seamless Corrosion-resisting Alloy Tubes GB/T 30059 Incoloy 800 Inconel 600 For Heat-exchanger
