GB/T 18704 Stainless Steel pipe Clad Steel Pipe Stainless Steel Tube 302 304 12Cr17Mn6Ni5N
GB/T 18704 Stainless Steel pipe Clad Steel Pipe 302 304 12Cr17Mn6Ni5N

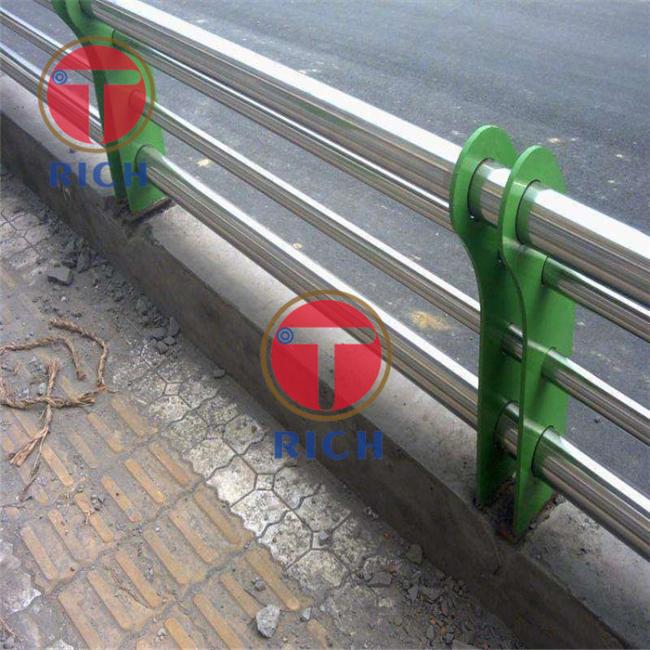

Application:Municipal facilities, vehicle and boat manufacturing, road and bridge guardrails, architectural decoration, steel structure grids, medical equipment, furniture, general mechanical components
size:L--2-12mm WT--0.6-8mm OD:12.7-219mm
delivery state:surface unburnished---SNB
surface burnished---SB
surface polished--SP
surface sandblasting--SA
Surface Quality:The internal and external surfaces of the steel tube are not allowed to have cracks, scabs, folds, delaminations, laps, and burns. Allows for scribes, scratches, misalignment of welds, burns, oxide scales, and external burr removal traces that are not more than a negative wall thickness deviation
Tolerance of OD
| Surface delivery condition | Nominal outside diameter | Tolerance |
| Polishing,Polish (SB,SP) | ≤25 | ±0.25 |
| >25~40 | ±0.30 | |
| >40~50 | ±0.35 | |
| >50~60 | ±0.40 | |
| >60~70 | ±0.50 | |
| >70~80 | ±0.60 | |
| >80 | ±1%D | |
| Unpolished,Sand blasting(SNB,SS) | ≤25 | ±0.30 |
| >25~50 | ±0.40 | |
| >50 | ±1.0%D |
Tolerance of WT
| Wall thickness(S) | Tolerance(high-grade) | Tolerance(medium grade) |
| ≥0.8~2.0 | ±0.10 | ±0.20 |
| >2.0~3.0 | ±0.15 | ±0.30 |
| >3.0 | ±5%S | ±10%S |
Chemical composition
| No. | Unified digital code | New steel grade | Old steel grade | Chemical composition | |||||||
| C | Si | Mn | P | S | Ni | Cr | N | ||||
| 1 | S35350 | 12Cr17Mn6Ni5N | 1Cr17Mn6Ni5N | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.050 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | 0.05~0.25 |
| 2 | S35450 | 12Cr18Mn9Ni5N | 1Cr18Mn8Ni5N | ≤0.15 | ≤1.00 | 7.50~10.0 | ≤0.050 | ≤0.030 | 4.00~6.00 | 17.00~19.00 | 0.05~0.25 |
| 3 | S30210 | 12Cr18Ni9 | 1Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | ≤0.10 |
| 4 | S30408 | 06Cr19Ni10 | 0Cr18Ni9 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~11.00 | 18.00~20.00 | - |
Mechanical property
| No. | Unified digital code | New steel grade | Old steel grade | Yield strength Rp0.2/MPa | Tensile Strength Rm/MPa | Elongation A/ ％ |
| ≥ | ||||||
| 1 | S35350 | 12Cr17MnNi5N | 1Cr17Mn6Ni5N | 245 | 520 | 25 |
| 2 | S35450 | 12Cr18Mn9Ni5N | 1Cr18Mn8Ni5N | 245 | 520 | |
| 3 | S30210 | 12Cr18Ni9 | 1Cr18Ni9 | 210 | 520 | 30 |
| 4 | S30408 | 06Cr19Ni10 | 0Cr18Ni9 | 210 | 520 | |
