Welded Stainless Steel Tubes U Bend Tube 008Cr29Mo4 GB/T 30065
Products Description:
Welded Stainless Steel Tubes U Bend Tube 008Cr29Mo4 GB/T 30065
Steel Grade/Steel Material:
| Steel Grade | Chemical Composition, % | |||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | Cu | N | |
| 019Cr25Mo4NiNbTi | ≤0.025 | ≤1.00 | ≤0.030 | ≤0.020 | ≤0.75 | 3.50-4.50 | 24.50-26.00 | 3.50-4.50 | - | ≤0.030 |
| 022Cr27Mo4Ni2NbTi | ≤0.030 | ≤1.00 | ≤0.030 | ≤0.020 | ≤1.00 | 1.00-3.50 | 25.00-28.00 | 3.00-4.00 | - | ≤0.030 |
| 008Cr29Mo4 | ≤0.010 | ≤0.30 | ≤0.025 | ≤0.020 | ≤0.20 | ≤0.15 | 28.00-30.00 | 3.50-4.20 | ≤0.15 | ≤0.020 |
| 008Cr29Mo4Ni2 | ≤0.010 | ≤0.30 | ≤0.025 | ≤0.020 | ≤0.20 | 2.00-2.50 | 28.00-30.00 | 3.50-4.20 | ≤0.15 | ≤0.020 |
| 022Cr29Mo4NbTi | ≤0.030 | ≤1.00 | ≤0.030 | ≤0.020 | ≤1.00 | ≤1.00 | 28.00-30.00 | 3.60-4.20 | - | ≤0.030 |
Mechanical Property:
| Steel Grade | Tensile Strength Rm MPa | Yield Stength Rp0.2 MPa | Elongation A50mm % |
| ≥ | |||
| 019Cr25Mo4NiNbTi | 620 | 515 | 20 |
| 022Cr27Mo4Ni2NbTi | 585 | 450 | 20 |
| 008Cr29Mo4 | 550 | 415 | 20 |
| 008Cr29Mo4Ni2 | 550 | 415 | 20 |
| 022Cr29Mo4NbTi | 515 | 415 | 18 |
Delivery Condition:
Annealed and Pickled
Size Range:
OD: 12-32mm
WT: 0.5-2.5mm
Length: acc to customer's requirement
Our regular size: 12.7x0.889mm, 19.05x1.65mm, 19.05x2.11mm etc
Clad Pipes Characteristic:
High strength
Can bend into U tubes
Corrosion-resisting
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Auto-welding from Cold Rolled Steel Strip + Heat Treatment of Annealed and Pickled
Bend with Cold Bending

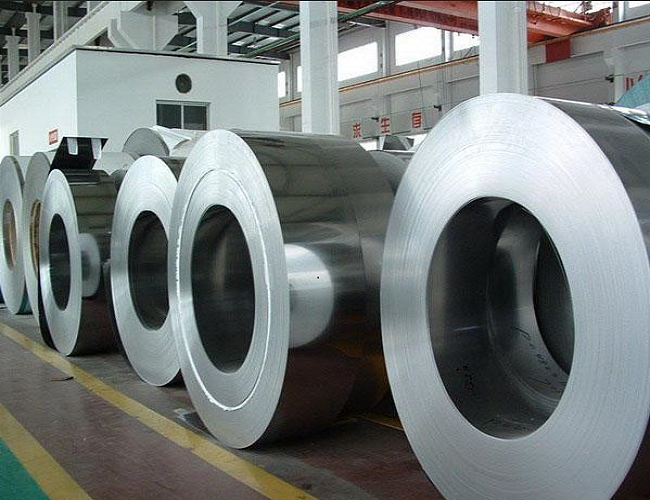

Raw Material Steel:

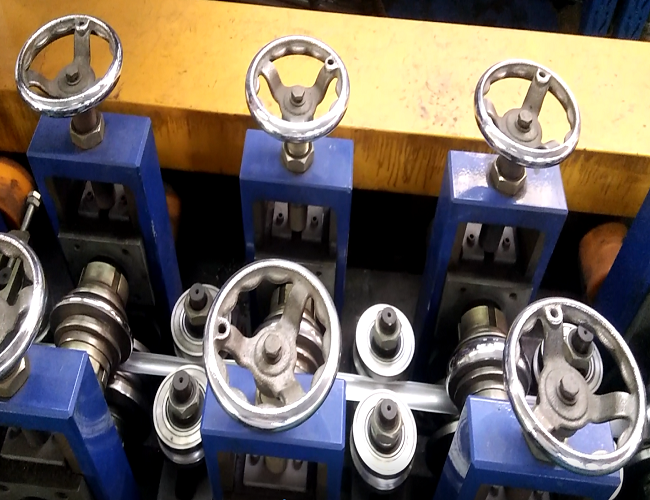

Production Line:

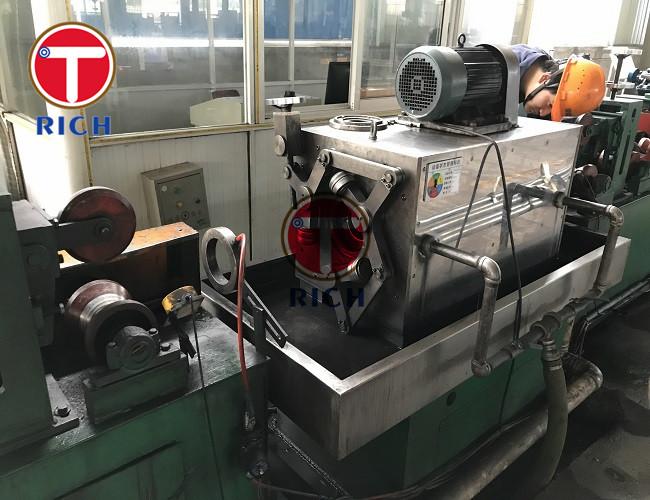

Eddy Current Test and Ultrasonic Test:

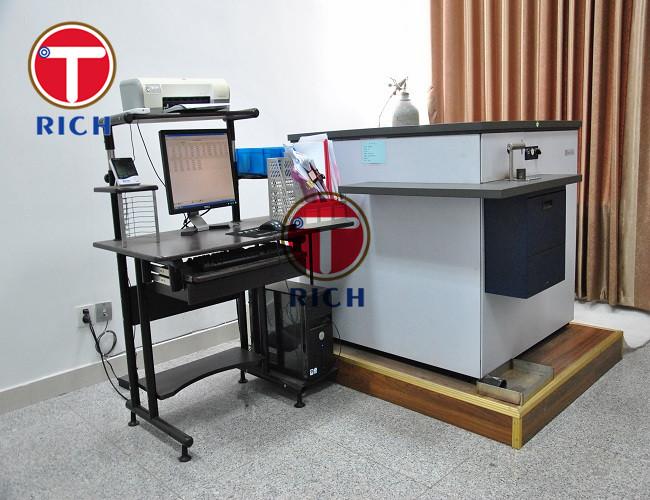

Quality Inspection in lab:
