Cold Drawn Seamless Carbon Steel Tube For Heat Exchanger And Condenser

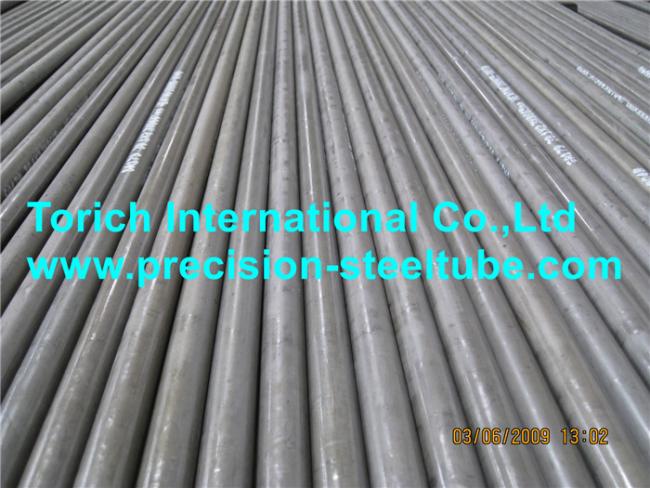

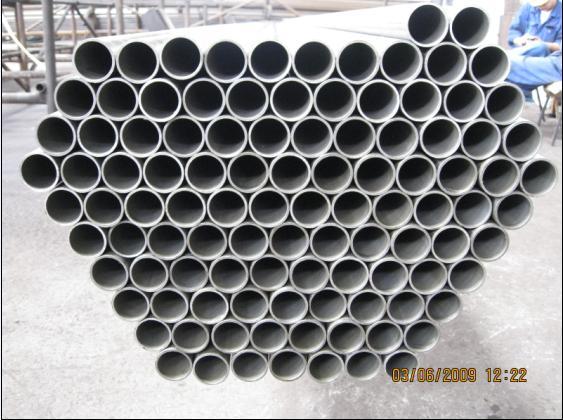

ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes
Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger Tubes and Condenser Tubes
Applications:
- For Boilers,
- Superheaters,
- Tubular Heat-Exchangers,
- Condensers
- Heat transfer apparatus

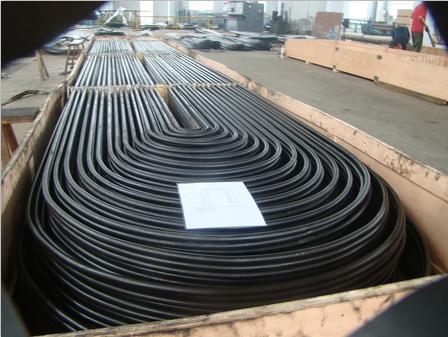

U bend Tubes according to Customer request
Material: Low Carbon Steel
Production: Seamless Cold Drawn
Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 | |
| Mn | 0.27-0.63 | |
| P | ≤0.035 | |
| S | ≤0.035 |
Mechanical Properties
Tensile Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Hardness: ≤72HRB
Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher
Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.
Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes
Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger Tubes and Condenser Tubes
Applications:
- For Boilers,
- Superheaters,
- Tubular Heat-Exchangers,
- Condensers
- Heat transfer apparatus
U bend Tubes according to Customer request
Material: Low Carbon Steel
Production: Seamless Cold Drawn
Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 | |
| Mn | 0.27-0.63 | |
| P | ≤0.035 | |
| S | ≤0.035 |
Mechanical Properties
Tensile Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Hardness: ≤72HRB
Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher
Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.
Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
