Stainless Steel Extruded Fin Tube Astm A213 For Boiler Heat Exchange
Products Description:
Carbon Steel Tube ASME SA179 Aluminum L G Finned Tube for Heat Exchange
Steel Grade/Steel Material:
1. Standard: ASTM A178, ASTM A179, ASTM A192, ASME SA213, ASTM A106 etc
2. Fin Material: Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Finned: Extruded fin, Spiral fin, Embeded G fin, Low fin, H fin, L fin etc
| Steel Grade and Chemical Compositions: | |||||||
| Steel Grade | C | Mn | P | S | Si | Cr | Mo |
| max | max | max | max | max | min | ||
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
Size Range:
OD: 8-51mm
WT: 1-8mm
Length: 2-12m
Steel Tube Characteristic:
High Anti-corrosion
Anti-wear
Lower Contact Resistance
Higher Stability
Ability to Prevent Dust
TORICH QUALITY ASSURANCE
Application:
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc.

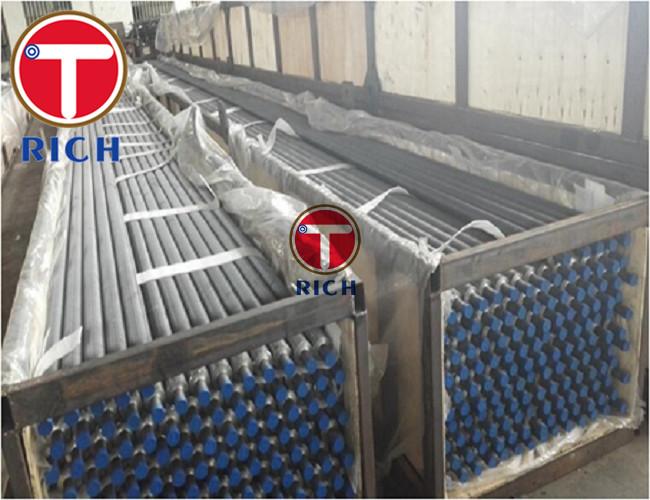

Production Steel Tube:
Application:
