Seamless Welded Special Steel Pipe Rectangular Shape Stainless 304 316 Material
Products Description:

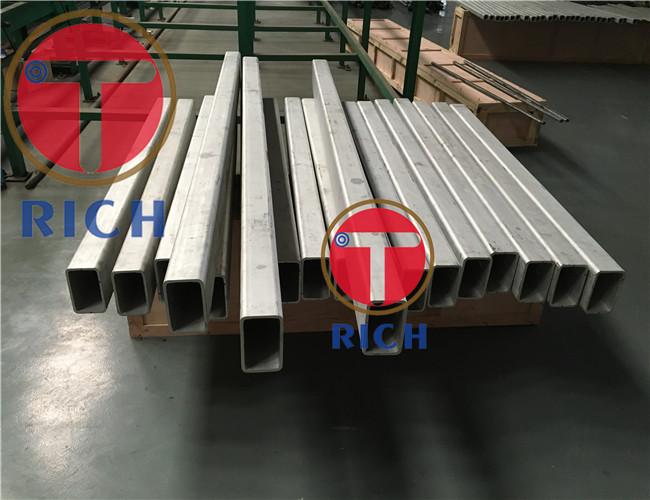

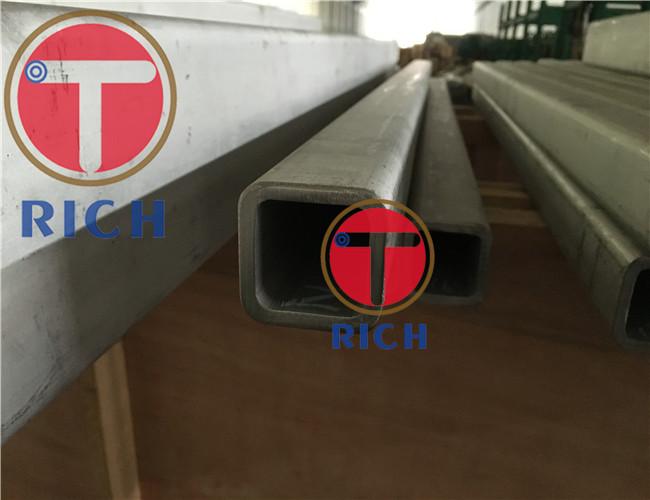

304 316 Seamless Welded Stainless Rectangular Steel Pipe Square Tube
Steel Grade/Steel Material:
| Mechanical Requirement | |||||||||
| Grade: | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN | TP316LN | TPXM-29 | TP304N |
| UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S31653 | S24000 | S30451 |
| C, max | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 | 0.035 | 0.035 | 0.08 | 0.080 |
| Mn, max | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 11.5-14.5 | 2.00 |
| P, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.060 | 0.045 |
| S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 17.0-19.0 | 18.0-20.0 |
| Cr | 8.0-11.0 | 8.0-13.0 | 8.0-12.0 | 11.0-14.0 | 10.0-14.0 | 11.0-14.0 | 11.0-14.0 | 2.3-3.7 | 8.0-18.0 |
| Mo | … | … | … | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | … | … |
| Nitrogen | … | … | … | … | … | … | … | … | … |
| Copper | … | … | … | … | … | ||||
Delivery Condition:
Pickled and Annealed, or as customer's requirement
Size Range:
OD: 8-100mm*8-100mm
WT: 1-8mm
Length: max 12000mm
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
The tubes shall be made from flat-rolled steel by an automatic welding process with no addition of the filler metal----cold drawn to square or rectangular shape tube----cut to the required length----deburr
Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
